Roof Panel Joint Front Finish Molding Replacement (Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the luggage carrier side rail. Refer to Luggage Carrier Replacement (Traverse) . |
|

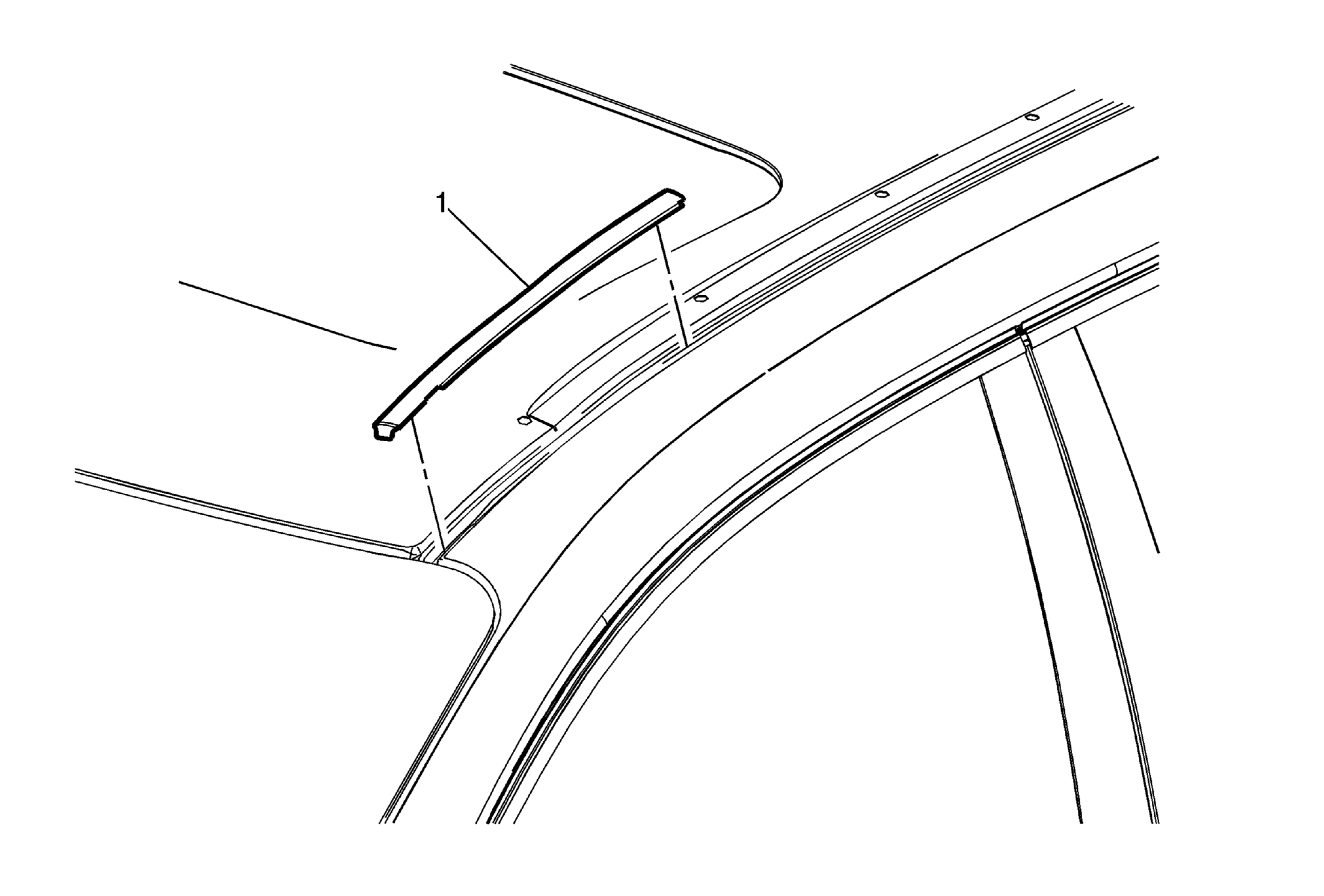

| 1 | Roof Panel Joint Front Finish Molding Procedure Using a suitable plastic flat bladed tool pry the roof panel joint front finish molding from the retainer in the roof ditch. |
