Front and Rear Side Door Outer Opening Frame Upper Reveal Molding Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

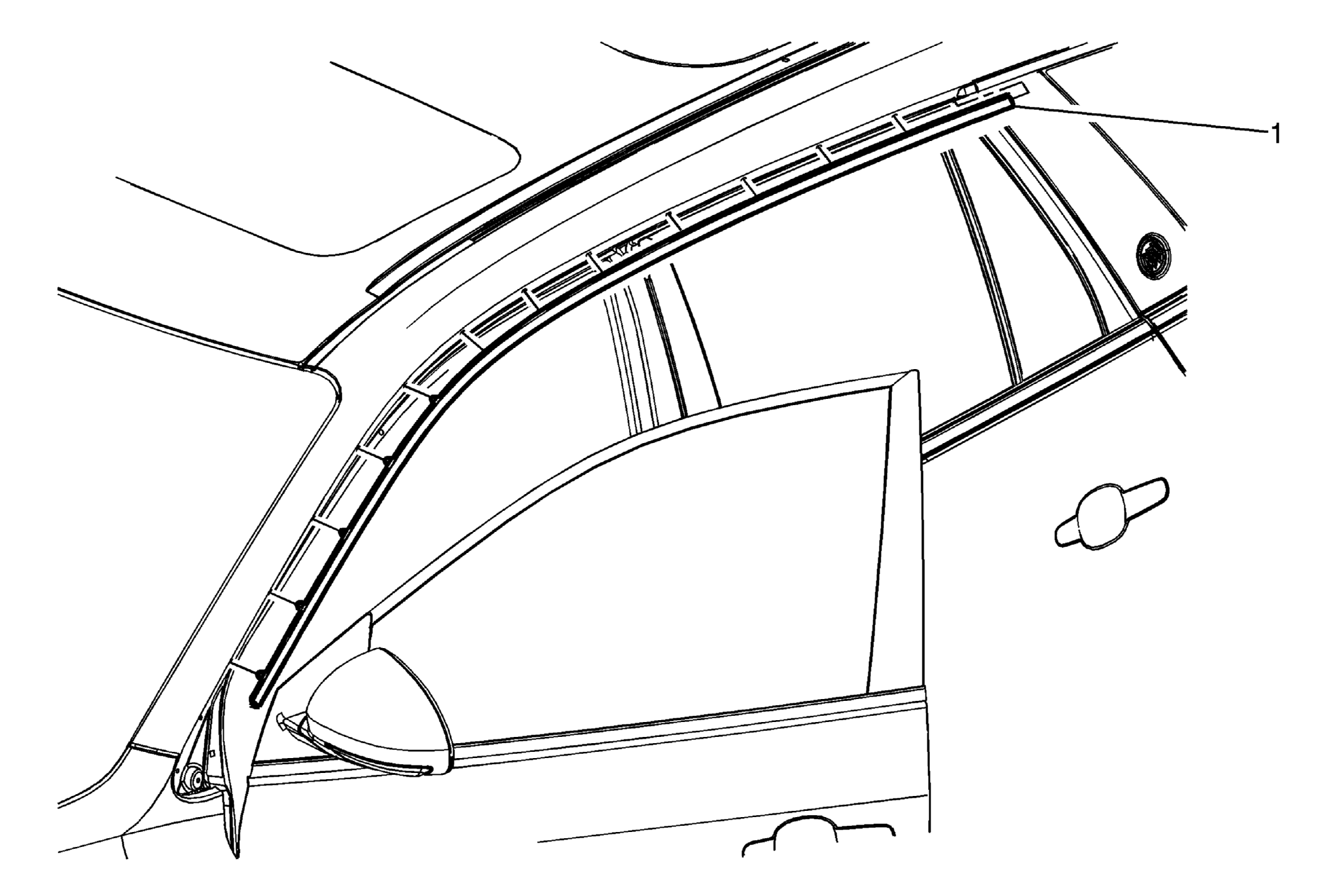

Fig 1: Front And Rear Side Door Outer Opening Frame Upper Reveal Molding (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front fender upper rear molding. Refer to Front Fender Upper Rear Molding Replacement (Enclave) .
1	Front and Rear Side Door Outer Opening Frame Upper Reveal Molding Procedure Using a suitable trim-type release tool start at the forward end of the front and rear side door outer opening frame upper reveal molding and working rearward, release the 12 retainers. Carefully release and pull forward the front and rear side door outer opening frame upper reveal molding. Replace retainers if necessary.

Callout

Component Name

Preliminary Procedure
Remove the front fender upper rear molding. Refer to Front Fender Upper Rear Molding Replacement (Enclave) .

Front and Rear Side Door Outer Opening Frame Upper Reveal Molding

Procedure

Using a suitable trim-type release tool start at the forward end of the front and rear side door outer opening frame upper reveal molding and working rearward, release the 12 retainers.
Carefully release and pull forward the front and rear side door outer opening frame upper reveal molding.
Replace retainers if necessary.
