Front Fender Upper Rear Molding Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

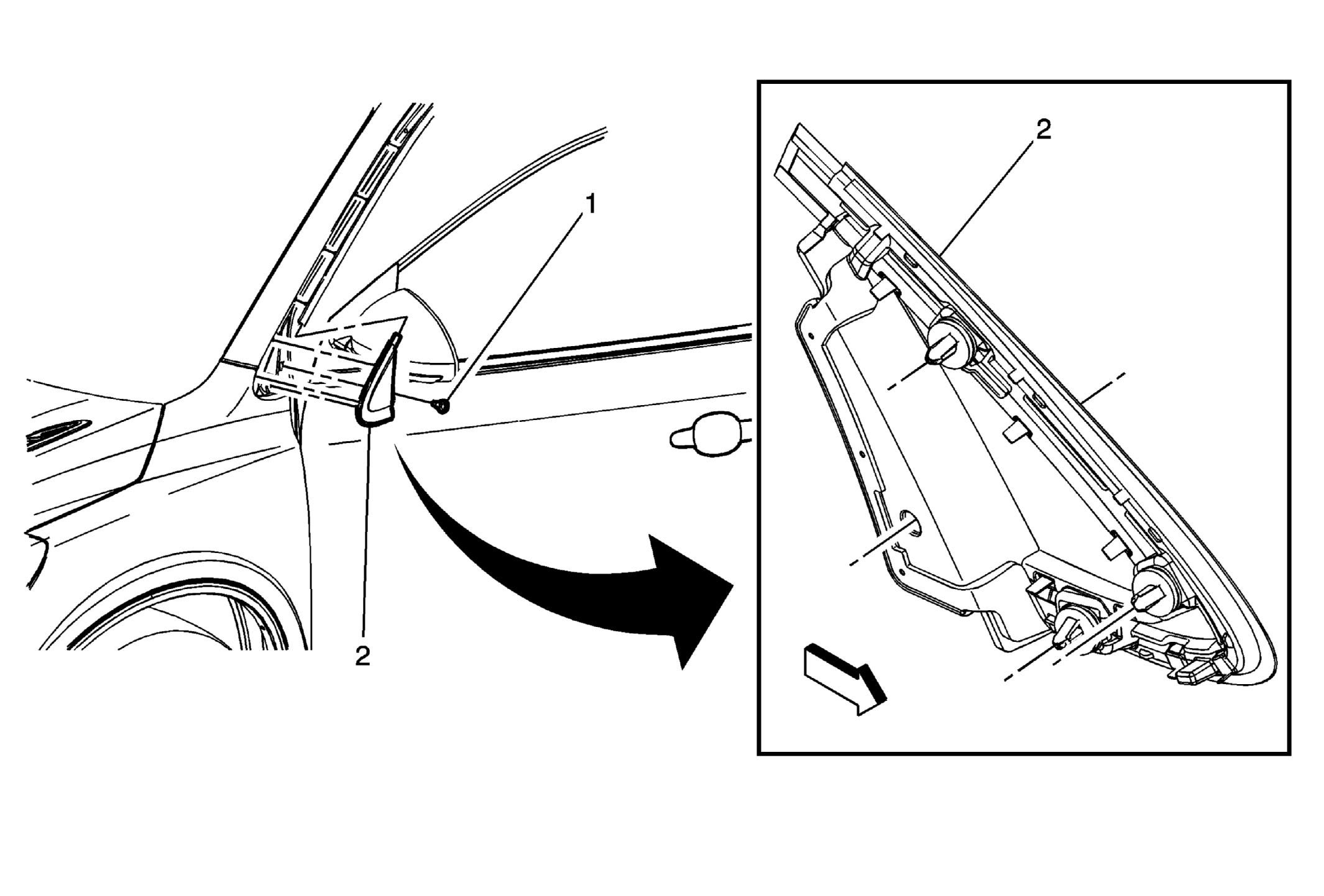

Fig 1: Front Fender Upper Rear Molding (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the front door.
1	Front Fender Upper Rear Molding Screw CAUTION: Refer to Fastener Caution .
2	Front Fender Upper Rear Molding Procedure Apply a suitable tape around the front fender upper rear molding. Using a suitable trim-type release tool carefully release the first four retainers from the front and rear side door outer opening frame upper revel molding. Using a suitable trim-type release tool carefully release the 3 front fender upper rear molding retainers. Replace retainers if necessary. Pull down and slide out the front fender upper rear molding from the front and rear side door outer opening frame upper revel molding.

Callout

Component Name

Preliminary Procedure
Open the front door.

Front Fender Upper Rear Molding Screw

CAUTION:

Refer to Fastener Caution .

Front Fender Upper Rear Molding

Procedure

Apply a suitable tape around the front fender upper rear molding.
Using a suitable trim-type release tool carefully release the first four retainers from the front and rear side door outer opening frame upper revel molding.
Using a suitable trim-type release tool carefully release the 3 front fender upper rear molding retainers.
Replace retainers if necessary.
Pull down and slide out the front fender upper rear molding from the front and rear side door outer opening frame upper revel molding.
