Front Lower Grille Replacement (Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement (Traverse) . |
|

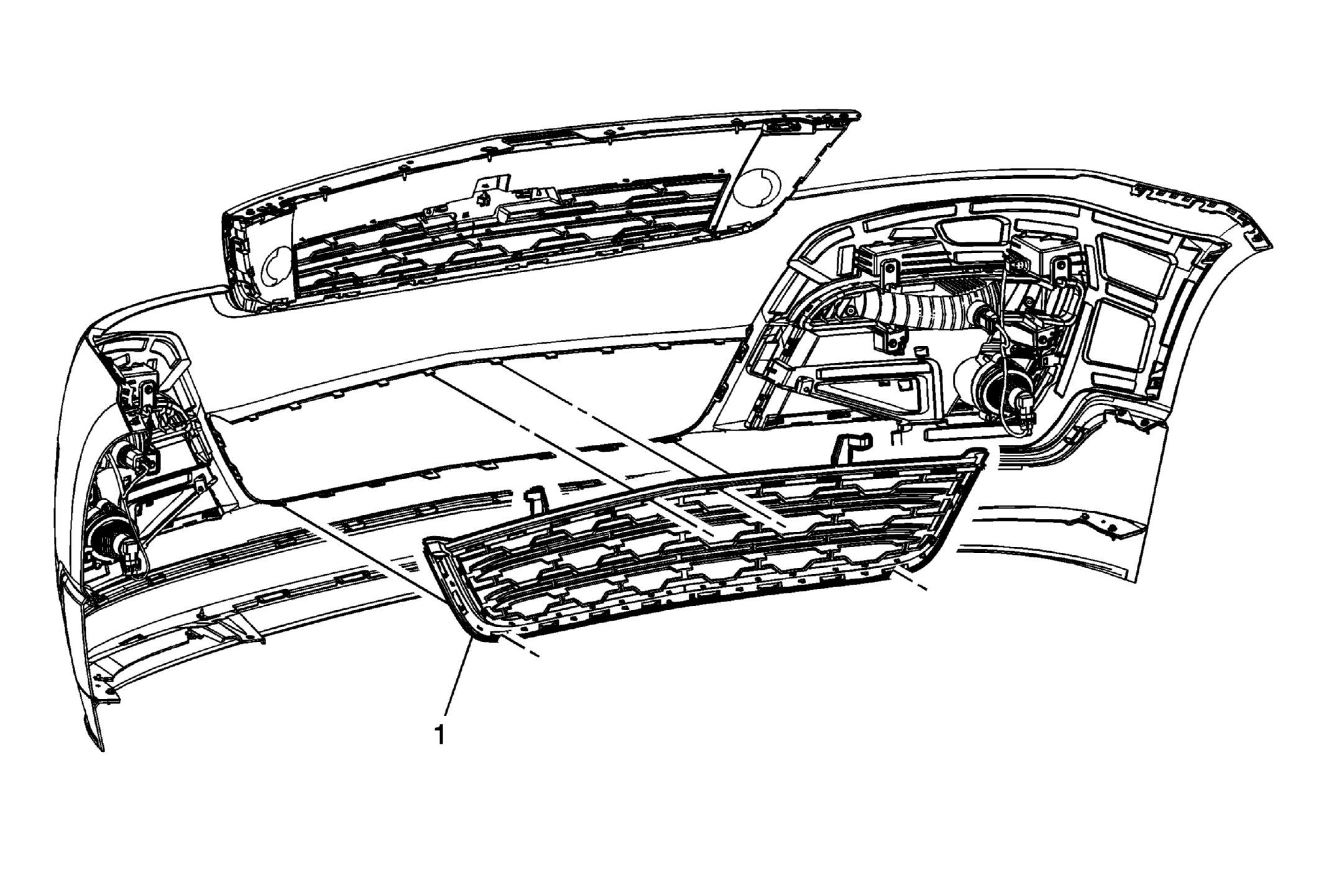

| 1 | Radiator Lower Grille Procedure Release the 22 locking tabs from the radiator lower grille and pull from the front bumper fascia. |
