Front Bumper Fascia Energy Absorber Replacement (Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

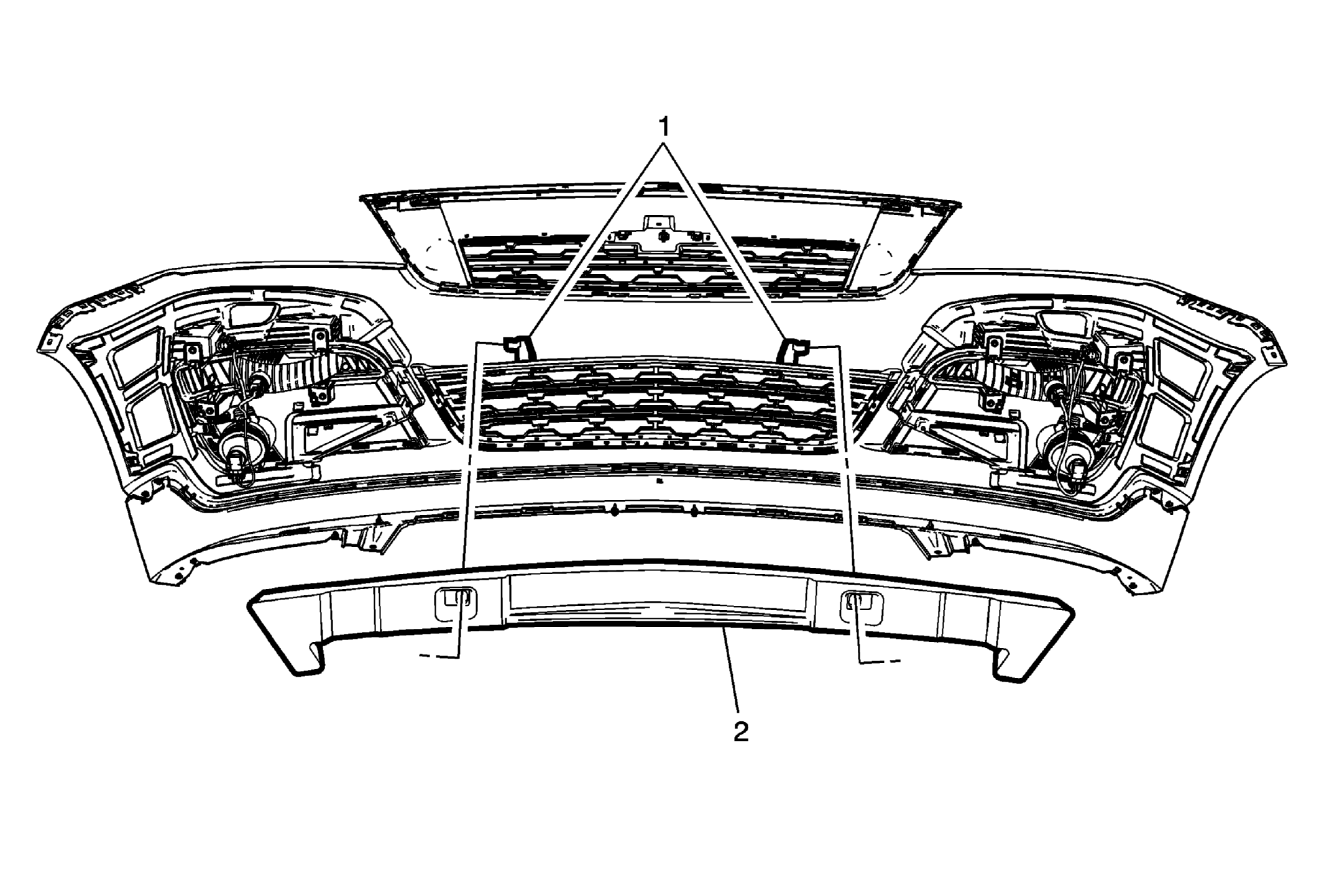

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Traverse) . |
|
| 1 | Front Bumper Fascia Energy Absorber Retainer Procedure Slowly release each of the retainer tabs and pull the energy absorber from the front bumper fascia. |
| 2 | Front Bumper Fascia Energy Absorber |
