Rear Bumper Lower Fascia Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

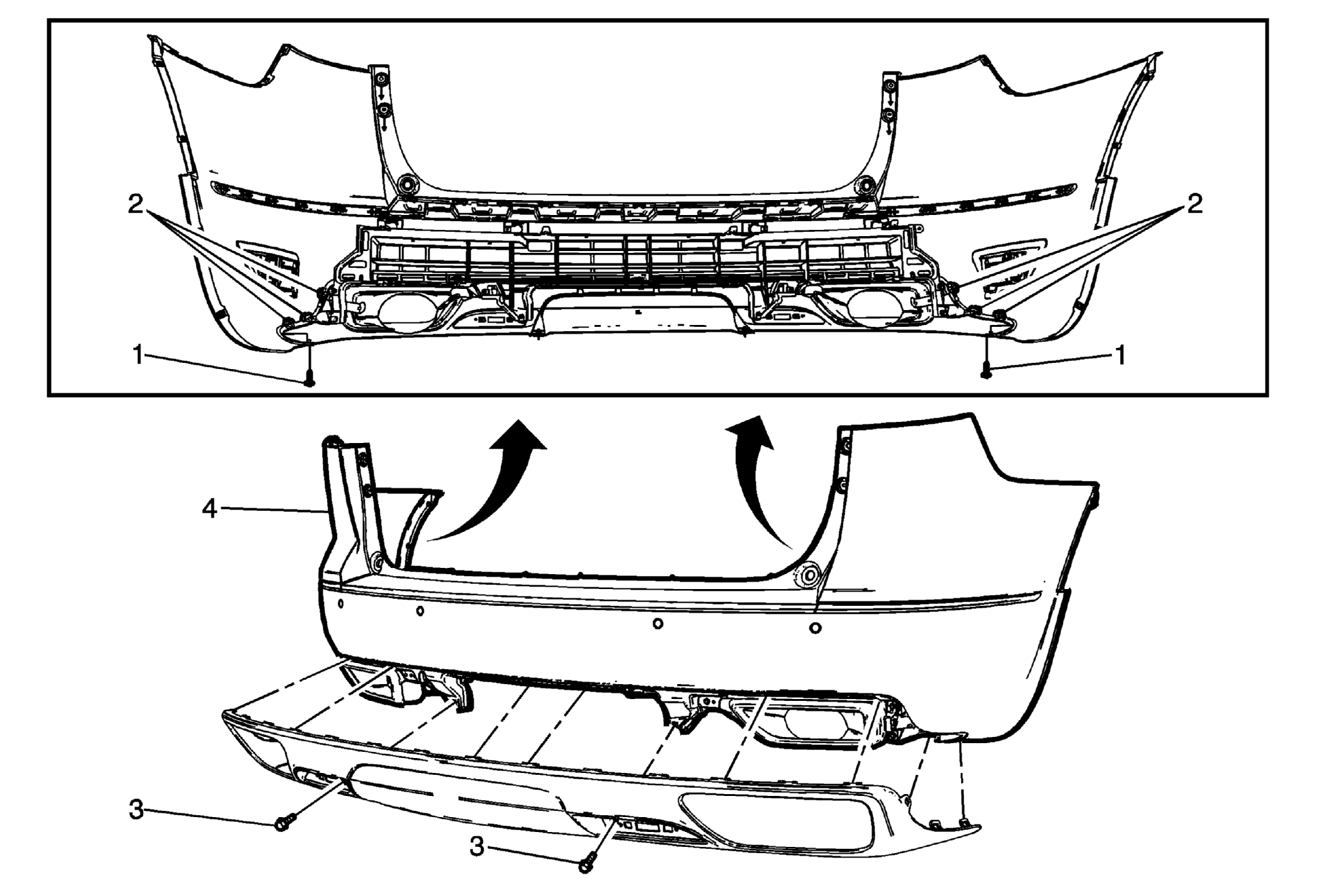

Fig 1: Rear Bumper Lower Fascia (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Enclave) . Remove the rear bumper fascia reflector. Refer to Rear Bumper Fascia Reflector Replacement (Enclave) .
1	Rear Bumper Lower Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Rear Bumper Lower Fascia Push-In Retainer (Qty: 2)
3	Rear Bumper Lower Fascia Bolt (Qty: 2)
4	Rear Bumper Lower Fascia Procedure Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascia. Transfer part as needed.
