Rear Bumper Fascia Support Replacement (Enclave and Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

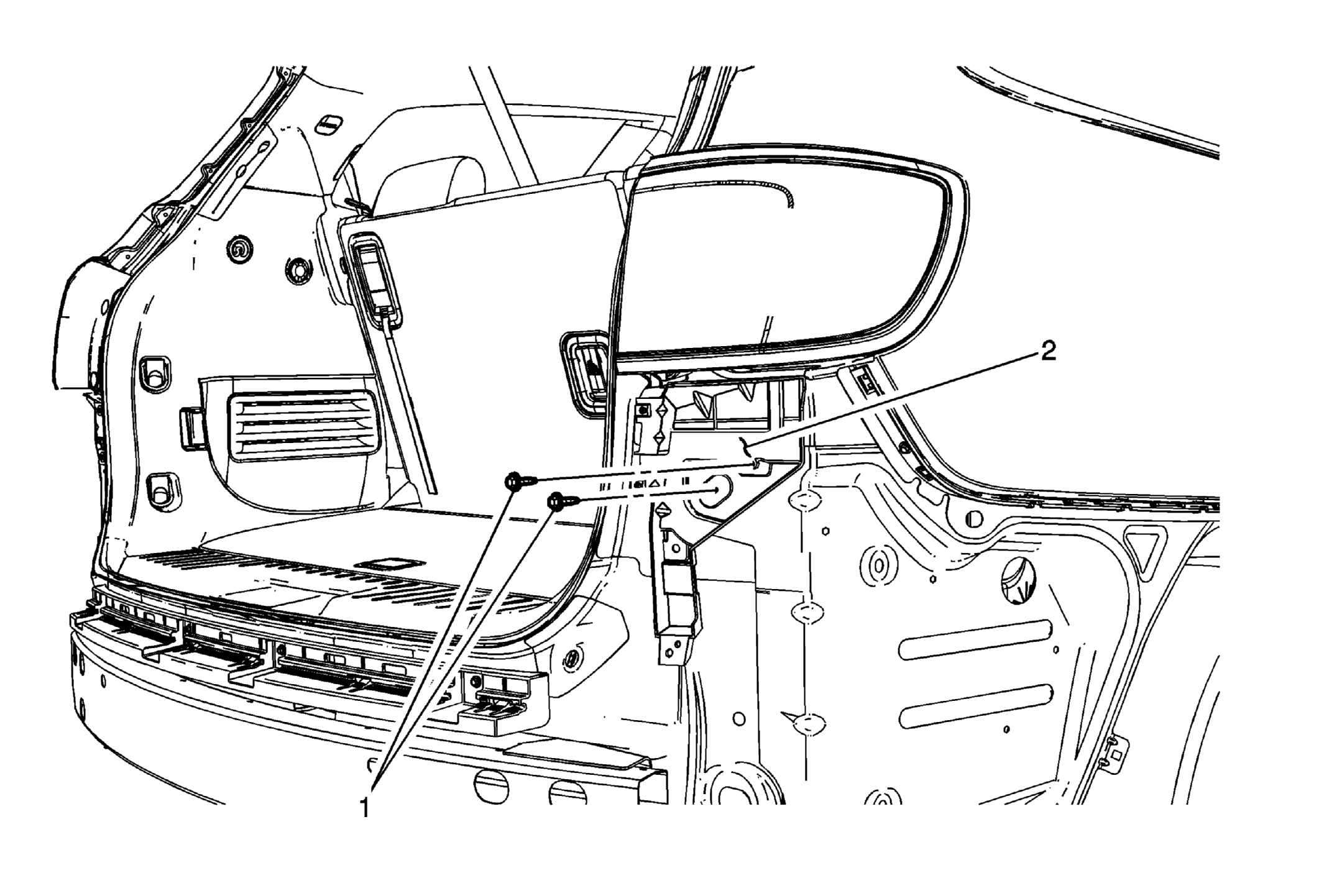

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Enclave) Rear Bumper Fascia Replacement (Traverse) . |
|
| 1 | Rear Bumper Fascia Support Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Rear Bumper Fascia Support |
