Rear Wheel Opening Molding Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

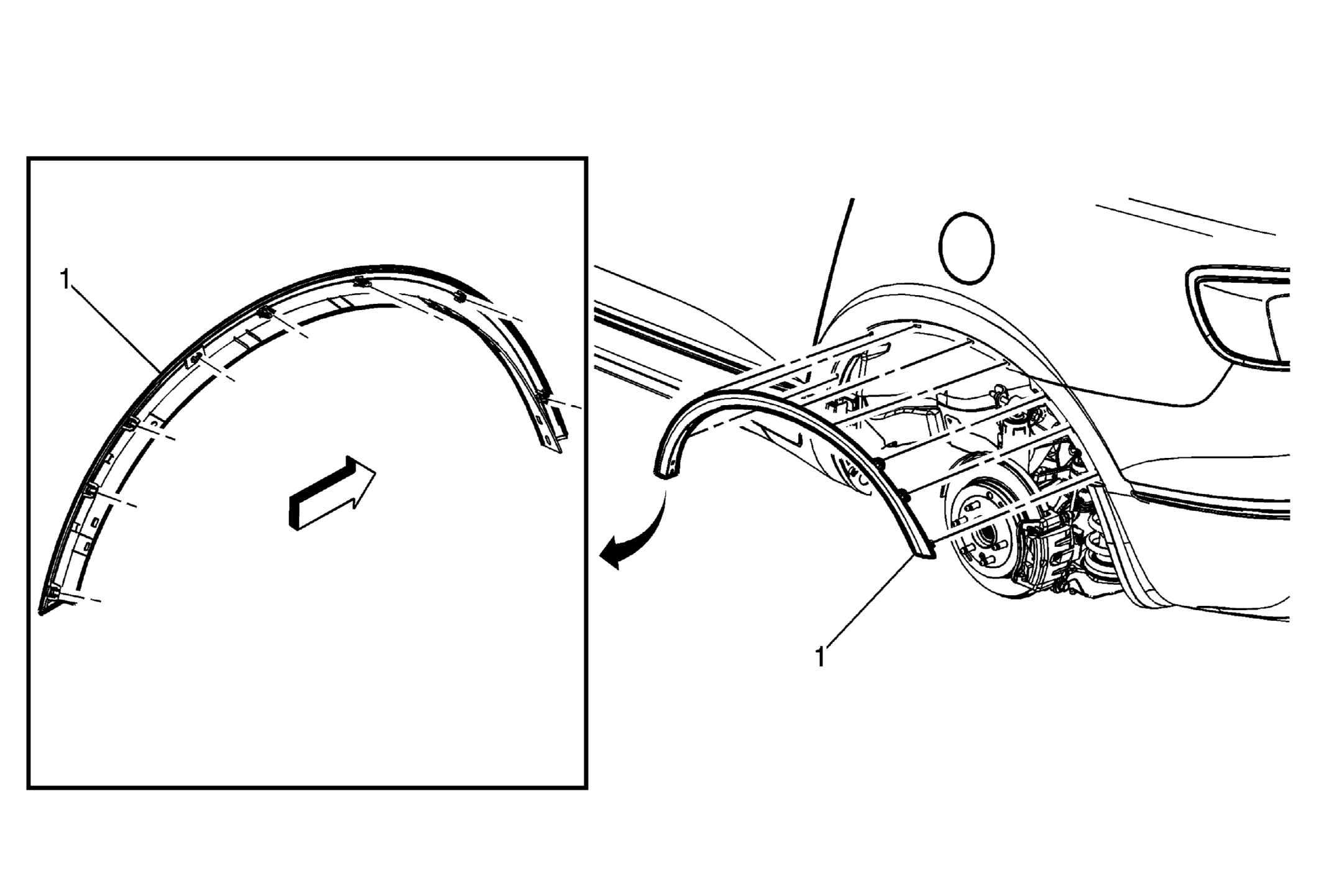

Fig 1: Rear Wheel Opening Molding (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement (Enclave) .
1	Rear Wheel Opening Flare Procedure From the forward end pinch and release the 4 retaining clips from the body side outer. From the rearward end release the 3 locking tabs from the rear bumper fascia.

Callout

Component Name

Preliminary Procedure
Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement (Enclave) .

Rear Wheel Opening Flare

Procedure

From the forward end pinch and release the 4 retaining clips from the body side outer.
From the rearward end release the 3 locking tabs from the rear bumper fascia.
