Front Bumper Lower Fascia Replacement (Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

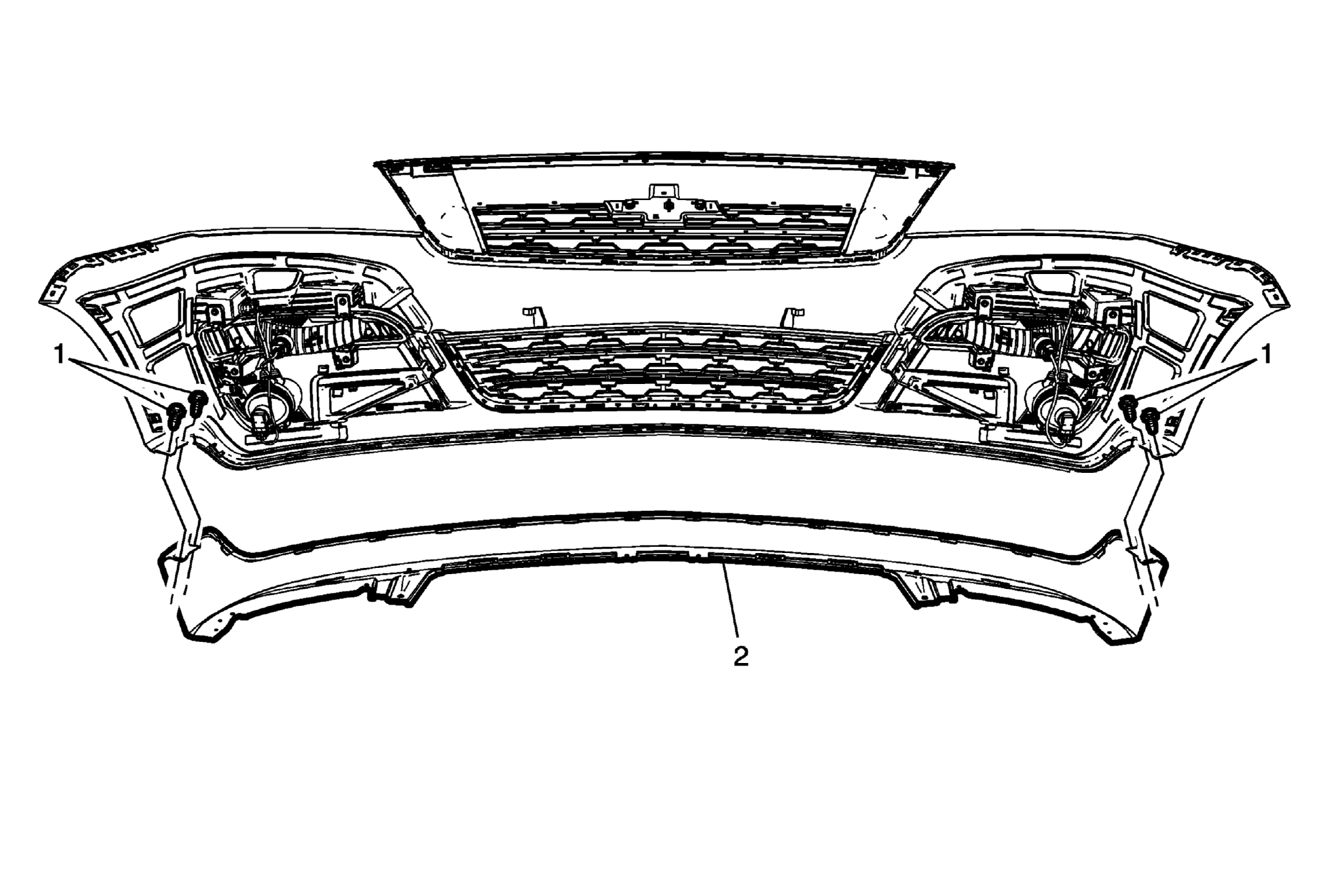

Fig 1: Front Bumper Lower Fascia (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Traverse) .
1	Front Bumper Lower Fascia Screw (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Front Bumper Lower Fascia Procedure Carefully push a small nylon wedge between the fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia. Transfer parts as needed.

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Traverse) .

Front Bumper Lower Fascia Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Front Bumper Lower Fascia

Procedure

Carefully push a small nylon wedge between the fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia.
Transfer parts as needed.
