Front Seat Cushion Heater Replacement (Passenger)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

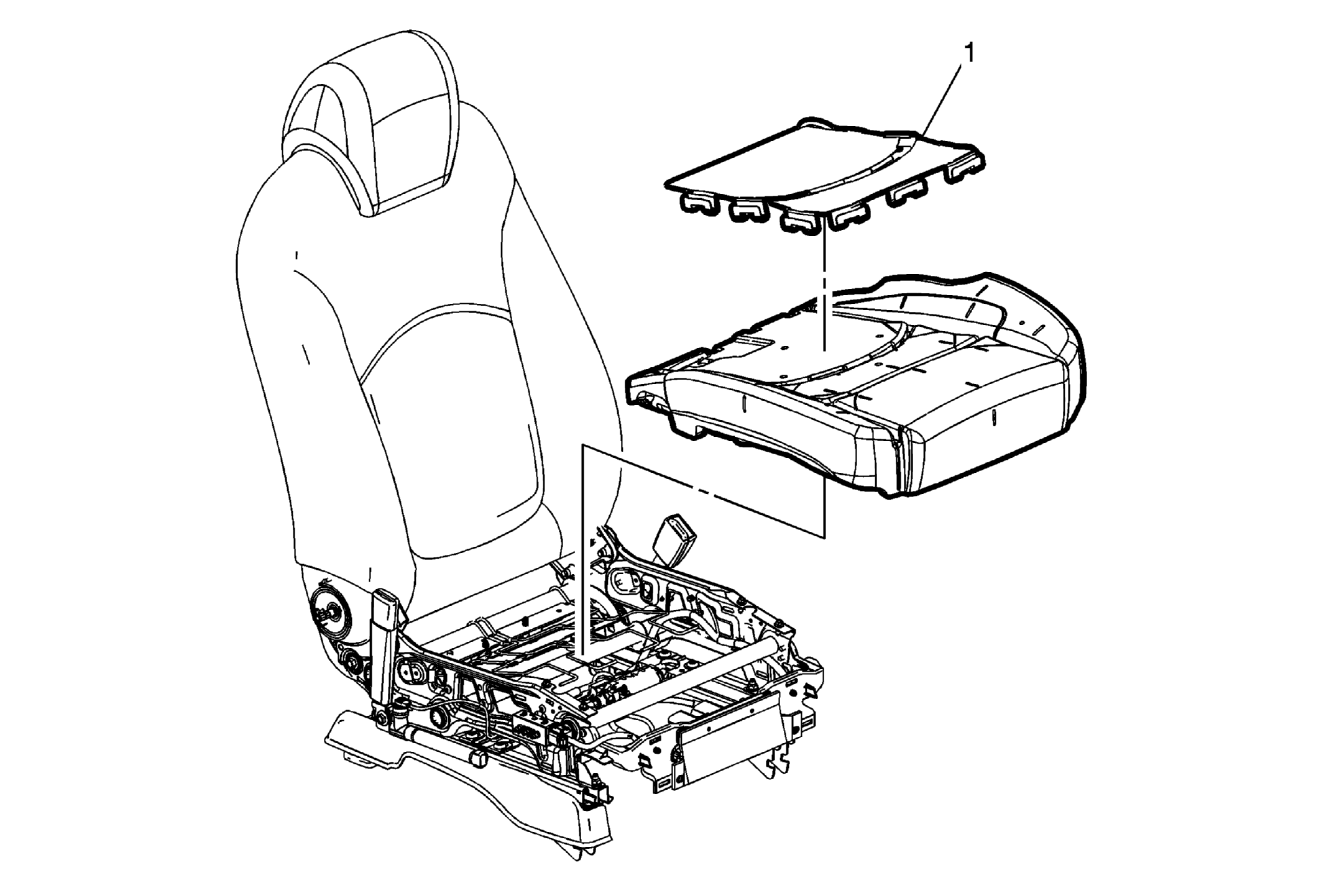

Fig 1: Front Seat Cushion Heater (Passenger)
GM2916035Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front passenger seat. Refer to Bucket Seat Removal and Installation .
  2. Remove the front seat outer recliner finish cover. Refer to Front Seat Back Recliner Outer Trim Panel Replacement (Power)Front Seat Back Recliner Outer Trim Panel Replacement (Manual) .
  3. Remove the front seat adjuster front shield.
  4. Remove the front seat cushion cover. Refer to Front Seat Cushion Cover and Pad Replacement .
  5. Remove the front seat passenger presence system. Refer to Inflatable Restraint Passenger Presence System Replacement - Front .
1 Passenger Seat Cushion Heater

Procedure

  1. Using a pair of scissors cut the hog rings and remove the passenger presence system.
  2. Remove the heater element leaving the old adhesive strips in tack on the seat cushion. The new seat heater adhesive strips will be placed over the old adhesive strips.
NOTE:

In case of a broken heating wire, DO NOT repair by soldering the two ends.
