Rear Floor Auxiliary Air Outlet Duct Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

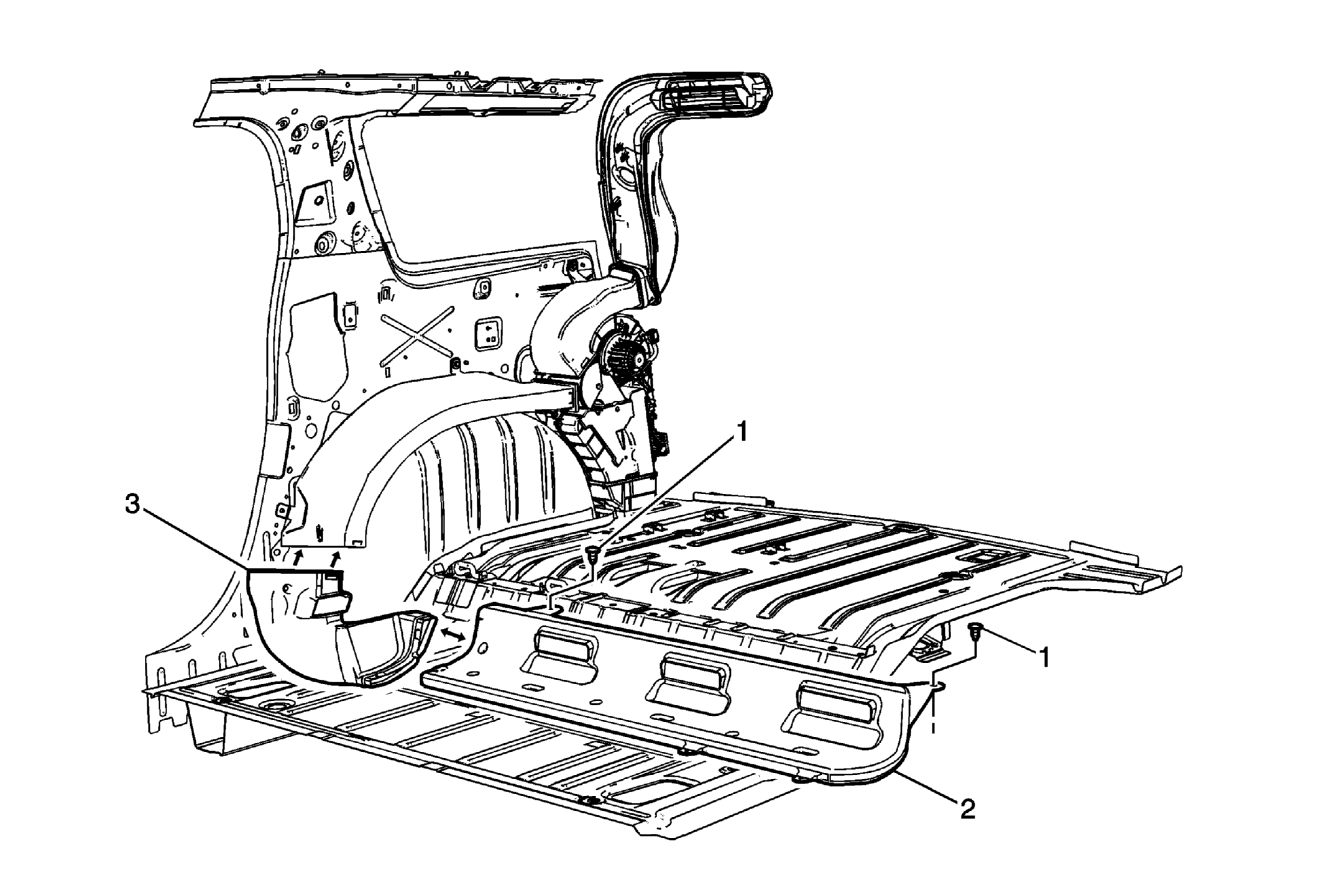

Fig 1: Rear Floor Auxiliary Air Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console assembly. Refer to Front Floor Console Replacement (Acadia)Front Floor Console Replacement (Enclave)Front Floor Console Replacement (Traverse) . Remove the rear floor carpet. Refer to Rear Floor Panel Carpet Replacement .
1	Rear Floor Auxiliary Air Outlet Duct Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Floor Rear Air Distributor Assembly Procedure Remove the floor rear air distributor as an assembly and separate the ducts. Replace the necessary duct.
3	Rear Floor Auxiliary Air Outlet Duct Procedure Remove the floor rear air distributor as an assembly and separate the ducts. Replace the necessary duct.
