Heater Core Cover Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

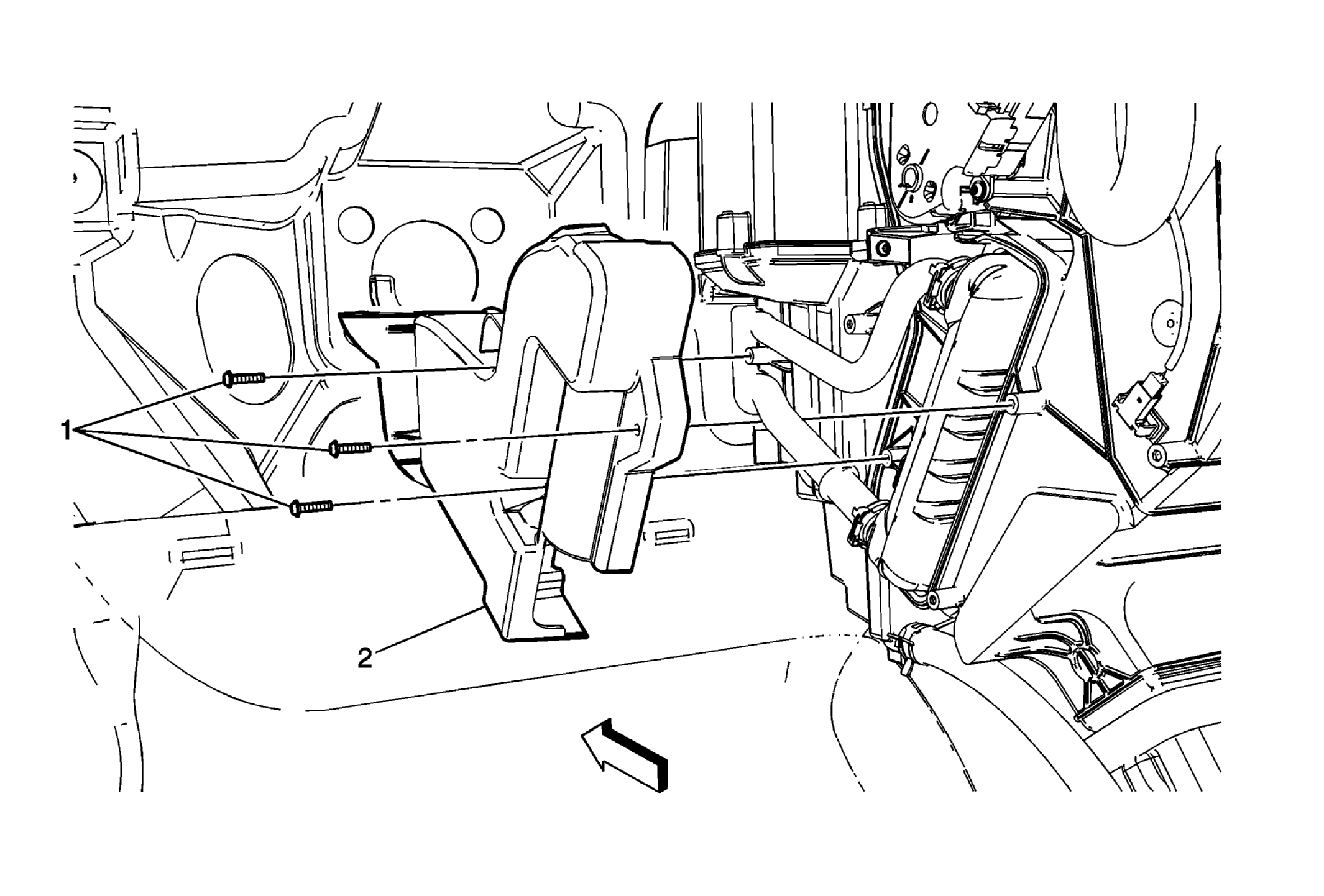

Fig 1: Locating Heater Core Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side (Acadia)Front Floor Console Extension Panel Replacement - Left Side (Enclave)Front Floor Console Extension Panel Replacement - Left Side (Traverse) . Remove the floor outlet air duct. Refer to Floor Air Outlet Duct Replacement - Left Side . Reposition any wiring harness to access heater core cover.
1	Heater Core Cover Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Heater Core Cover

Callout

Component Name

Preliminary Procedures

Remove the left front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side (Acadia)Front Floor Console Extension Panel Replacement - Left Side (Enclave)Front Floor Console Extension Panel Replacement - Left Side (Traverse) .
Remove the floor outlet air duct. Refer to Floor Air Outlet Duct Replacement - Left Side .
Reposition any wiring harness to access heater core cover.

Heater Core Cover Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
3 N.m (27 lb in)

Heater Core Cover
