Floor Air Outlet Duct Replacement - Left Side
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

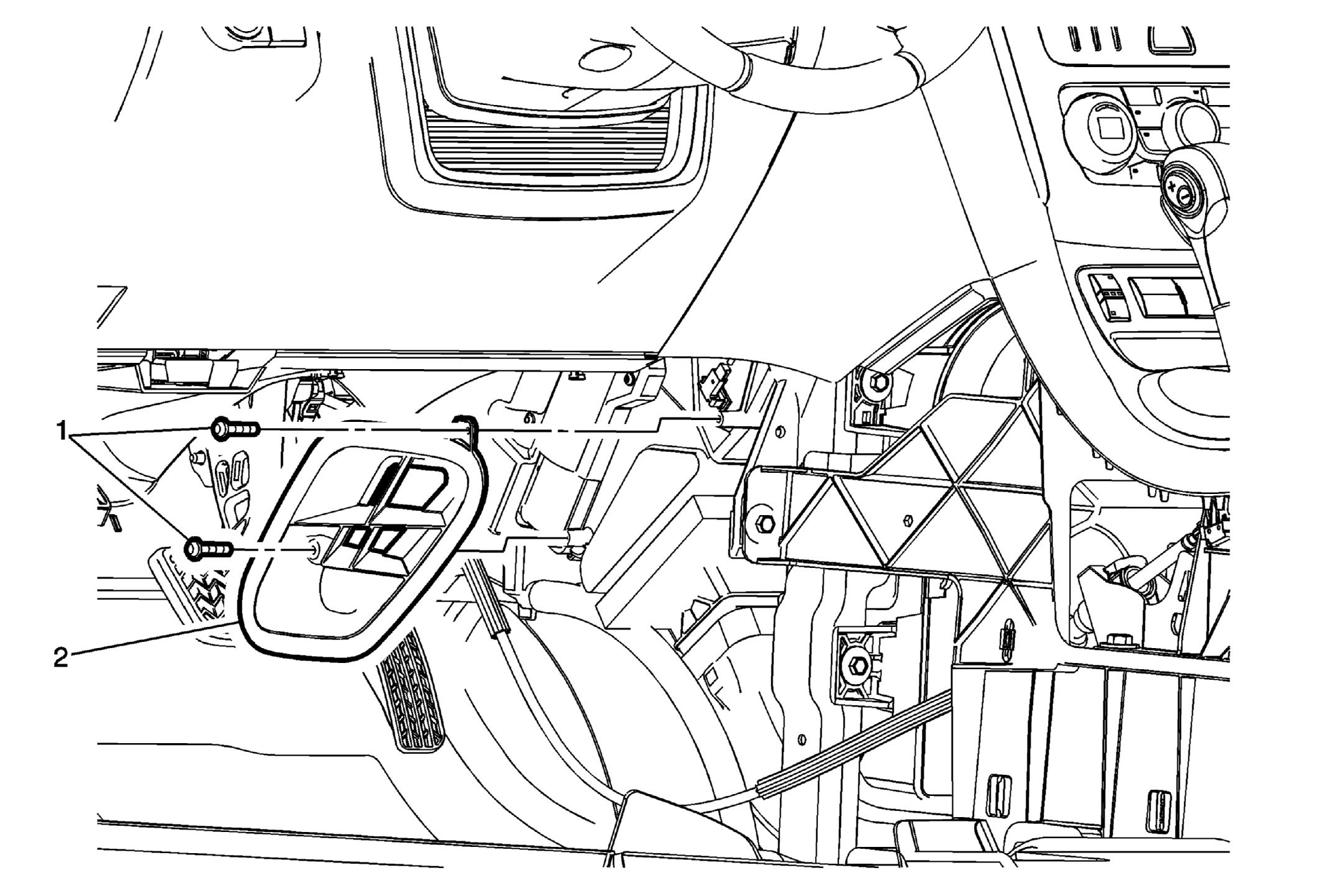

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the left side front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side (Acadia)Front Floor Console Extension Panel Replacement - Left Side (Enclave)Front Floor Console Extension Panel Replacement - Left Side (Traverse) . |
|
| 1 | Floor Air Outlet Duct Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Floor Air Outlet Duct - Left Side |
