Floor Front Air Outlet Duct Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

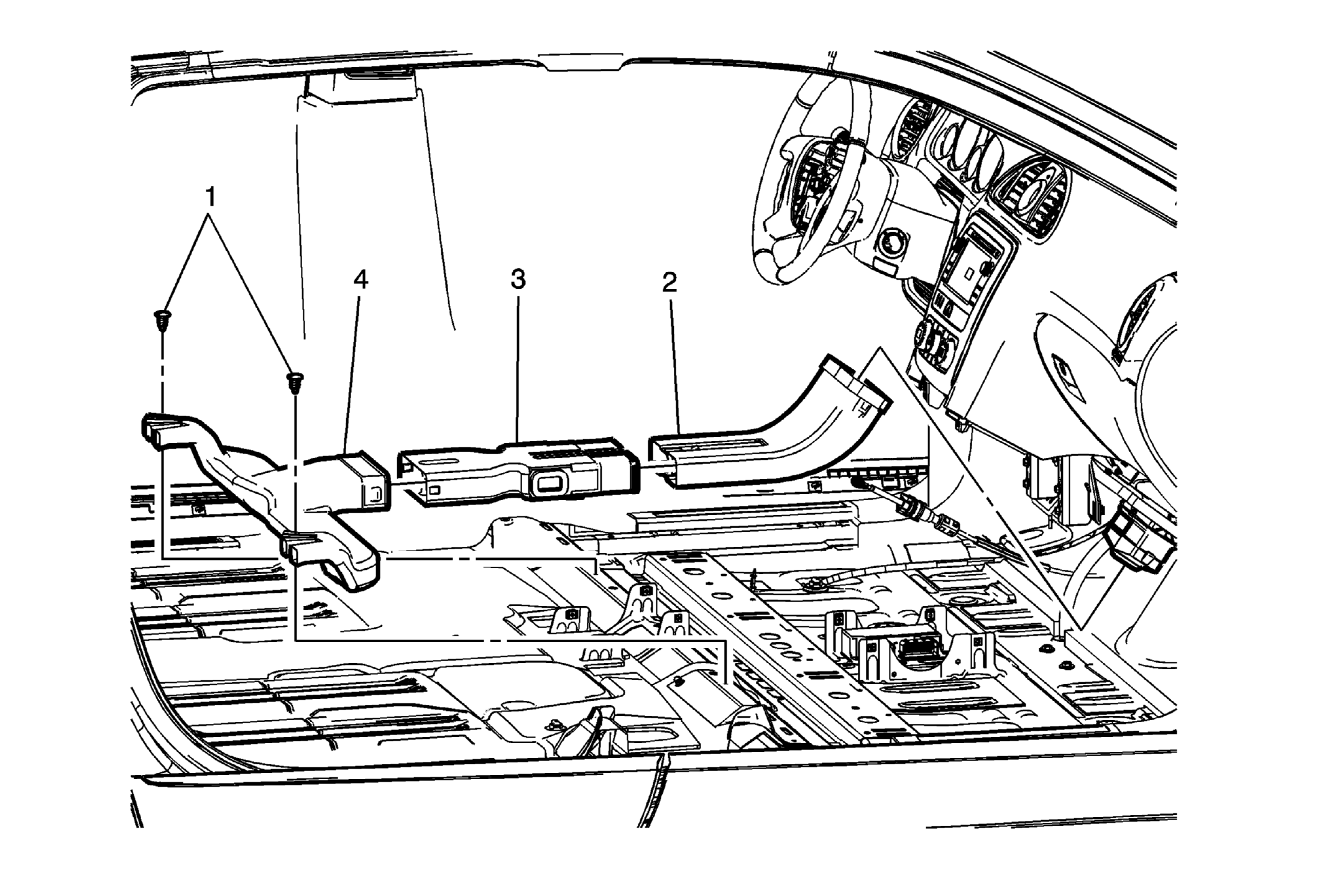

Fig 1: Floor Front Air Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left side front floor panel carpet. Refer to Front Floor Panel Carpet Replacement - Left Side . Remove the right side front floor panel carpet. Refer to Front Floor Panel Carpet Replacement - Right Side . Remove the radio front floor console speaker assembly. Refer to Radio Front Floor Console Speaker Replacement .
1	Floor Front Air Outlet Duct Fastener (Qty: 2)
2	Floor Front Air Outlet Duct Front Adaptor Procedure After removing the floor front air outlet duct as an assembly, separate the floor front air outlet duct front adaptor from the duct.
3	Floor Front Air Outlet Duct Center Adaptor Procedure After removing the floor front air outlet duct as an assembly, separate the floor front air outlet duct center adaptor from the duct.
4	Floor Front Air Outlet Duct Procedure Remove the floor front air outlet duct and the floor front air outlet adaptors as an assembly.
