Front Floor Panel Carpet Replacement - Right Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

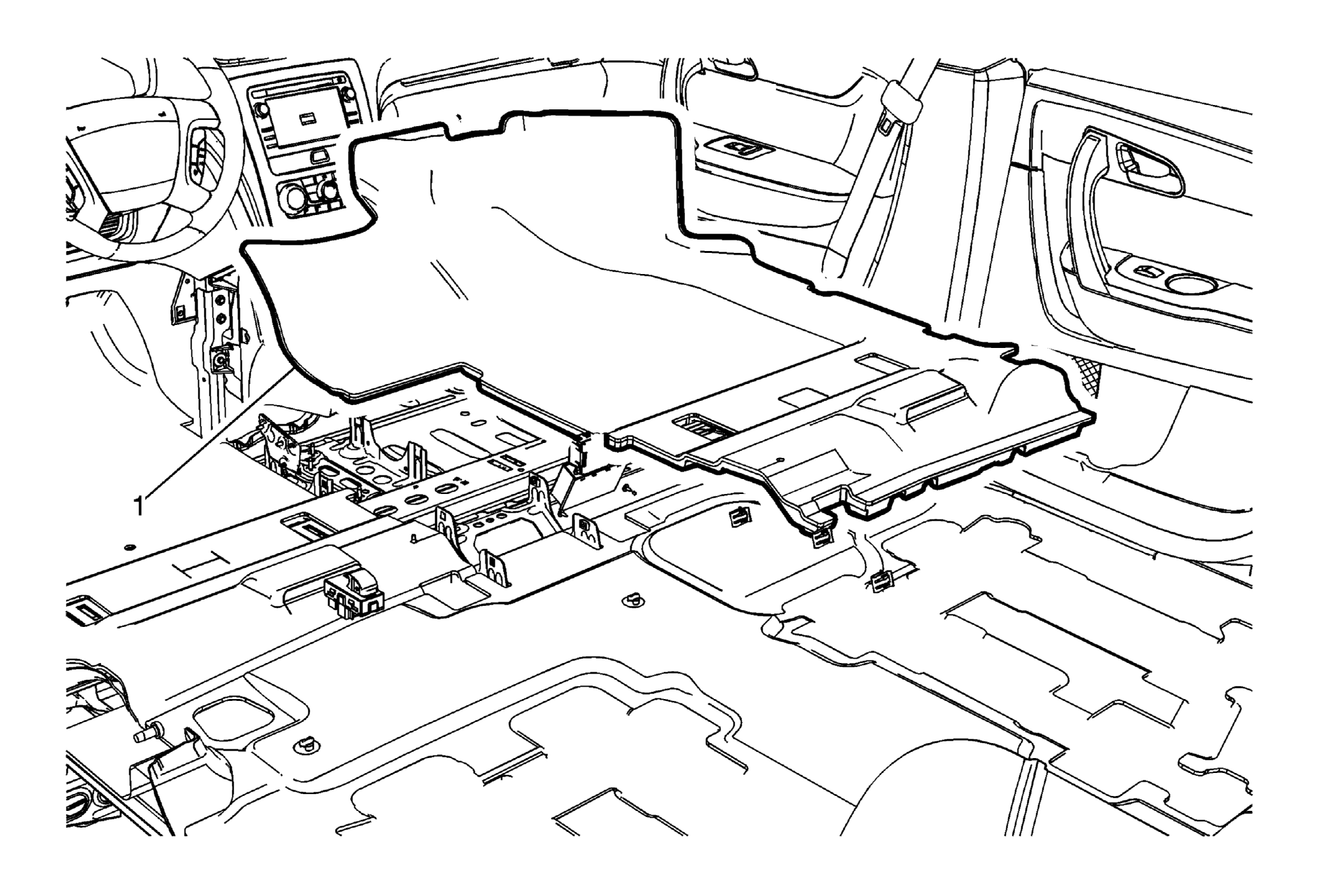

Fig 1: Front Floor Panel Carpet - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front passenger seat. Refer to Bucket Seat Removal and Installation . Remove the front floor console. Refer to Front Floor Console Replacement (Acadia)Front Floor Console Replacement (Enclave)Front Floor Console Replacement (Traverse) . Remove the center pillar lower molding. Refer to Center Pillar Lower Garnish Molding Replacement (Traverse)Center Pillar Lower Garnish Molding Replacement (Acadia or Enclave) .
1	Front Floor Panel Carpet - Right Side Assembly

Callout

Component Name

Preliminary Procedures

Remove the front passenger seat. Refer to Bucket Seat Removal and Installation .
Remove the front floor console. Refer to Front Floor Console Replacement (Acadia)Front Floor Console Replacement (Enclave)Front Floor Console Replacement (Traverse) .
Remove the center pillar lower molding. Refer to Center Pillar Lower Garnish Molding Replacement (Traverse)Center Pillar Lower Garnish Molding Replacement (Acadia or Enclave) .

Front Floor Panel Carpet - Right Side Assembly
