Evaporator Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

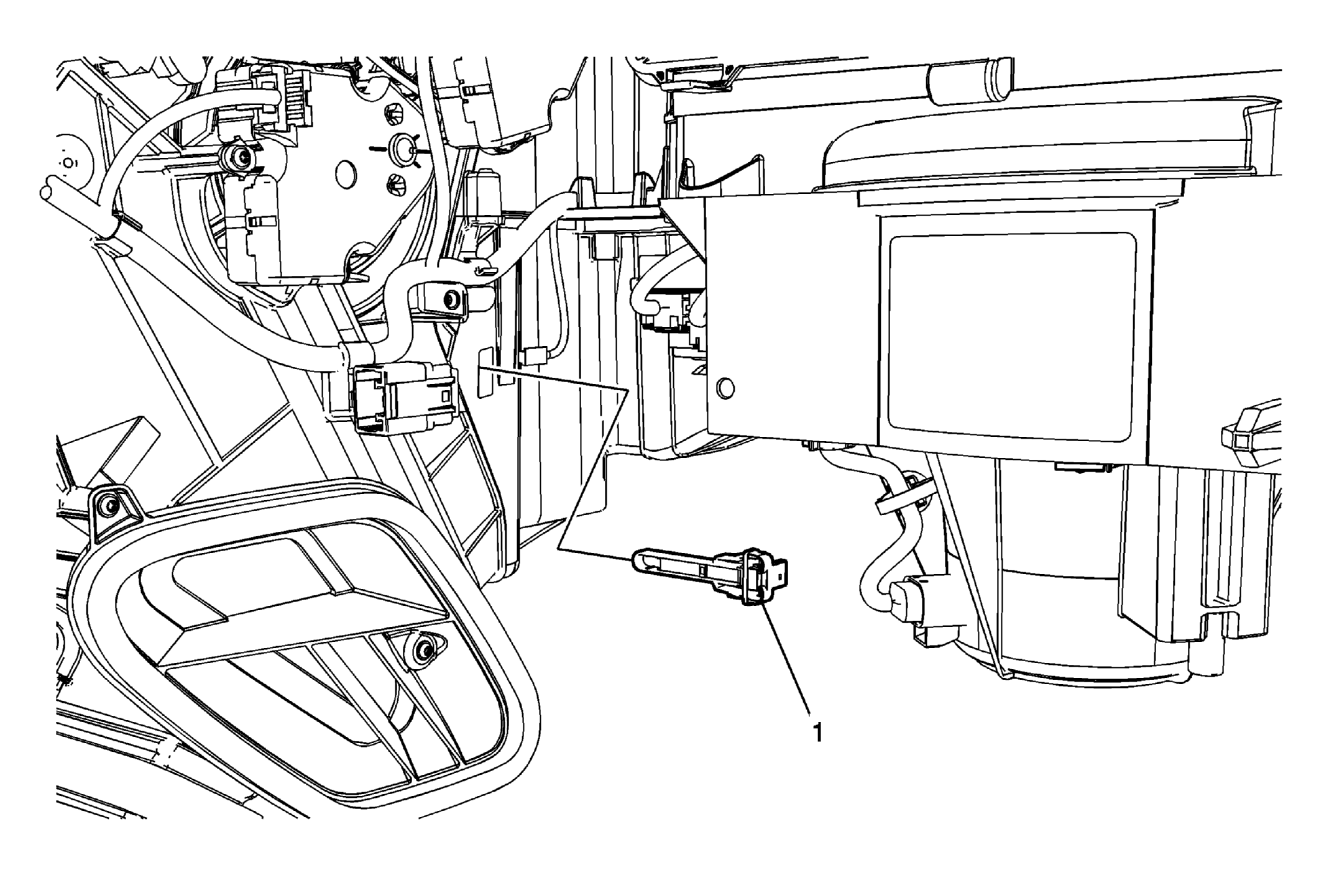

Fig 1: View Of Evaporator Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the I/P insulator panel- right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
1	Evaporator Temperature Sensor Procedure Disconnect the sensor electrical connector. Apply downward pressure on sensor to release tabs for removal.

Callout

Component Name

Preliminary Procedure
Remove the I/P insulator panel- right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side .

Evaporator Temperature Sensor

Procedure

Disconnect the sensor electrical connector.
Apply downward pressure on sensor to release tabs for removal.
