Instrument Panel Insulator Panel Replacement - Right Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

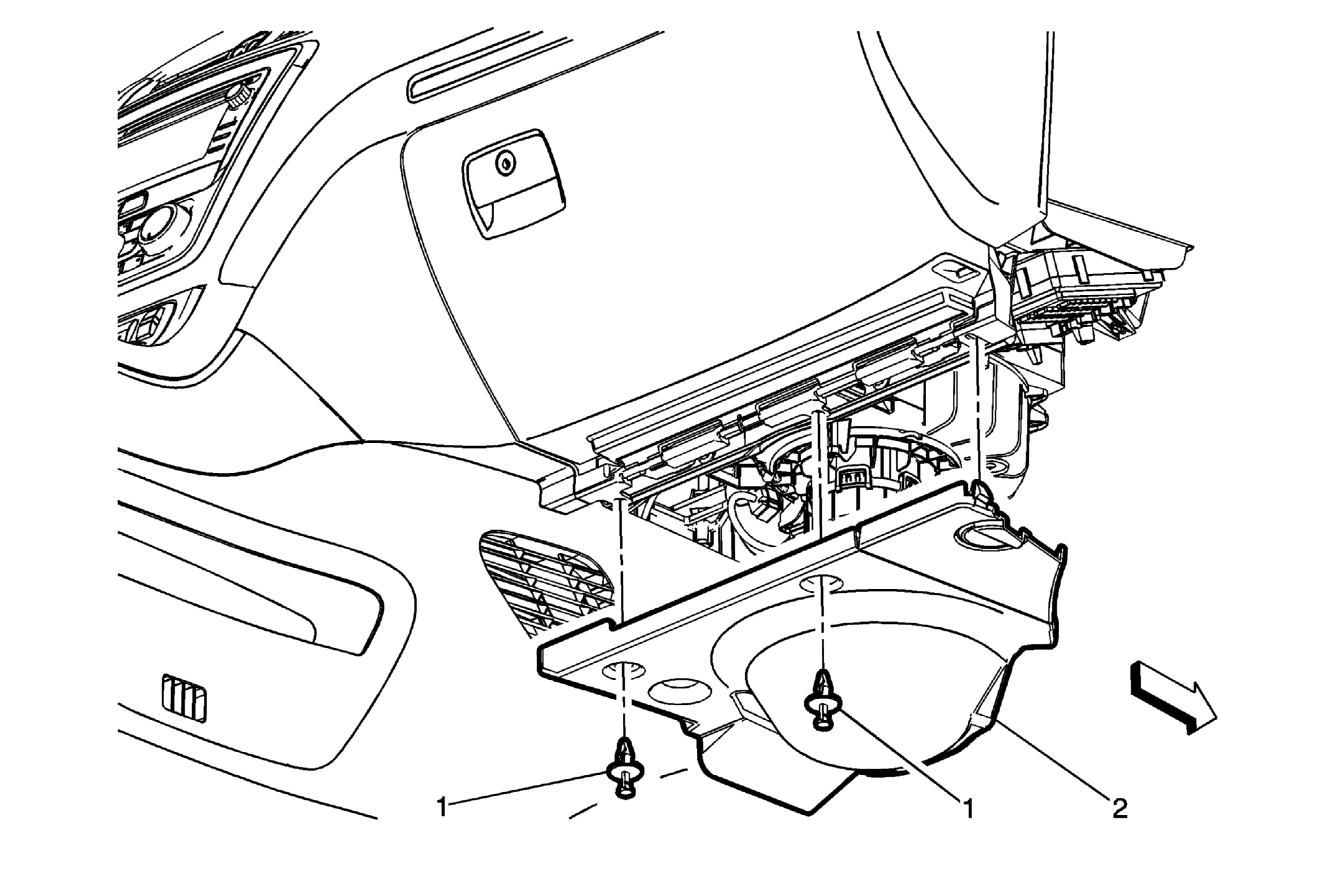

Fig 1: Instrument Panel Insulator Panel - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Push-pin Fasteners (Qty: 2)
2	Instrument panel Insulator Panel - Right Side Procedures Disconnect the electrical connectors. Ensure the tab on the right side of the insulator locks into the carrier assembly securing the insulator to the instrument panel.

Callout

Component Name

Push-pin Fasteners (Qty: 2)

Instrument panel Insulator Panel - Right Side

Procedures

Disconnect the electrical connectors.
Ensure the tab on the right side of the insulator locks into the carrier assembly securing the insulator to the instrument panel.
