Blower Motor Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

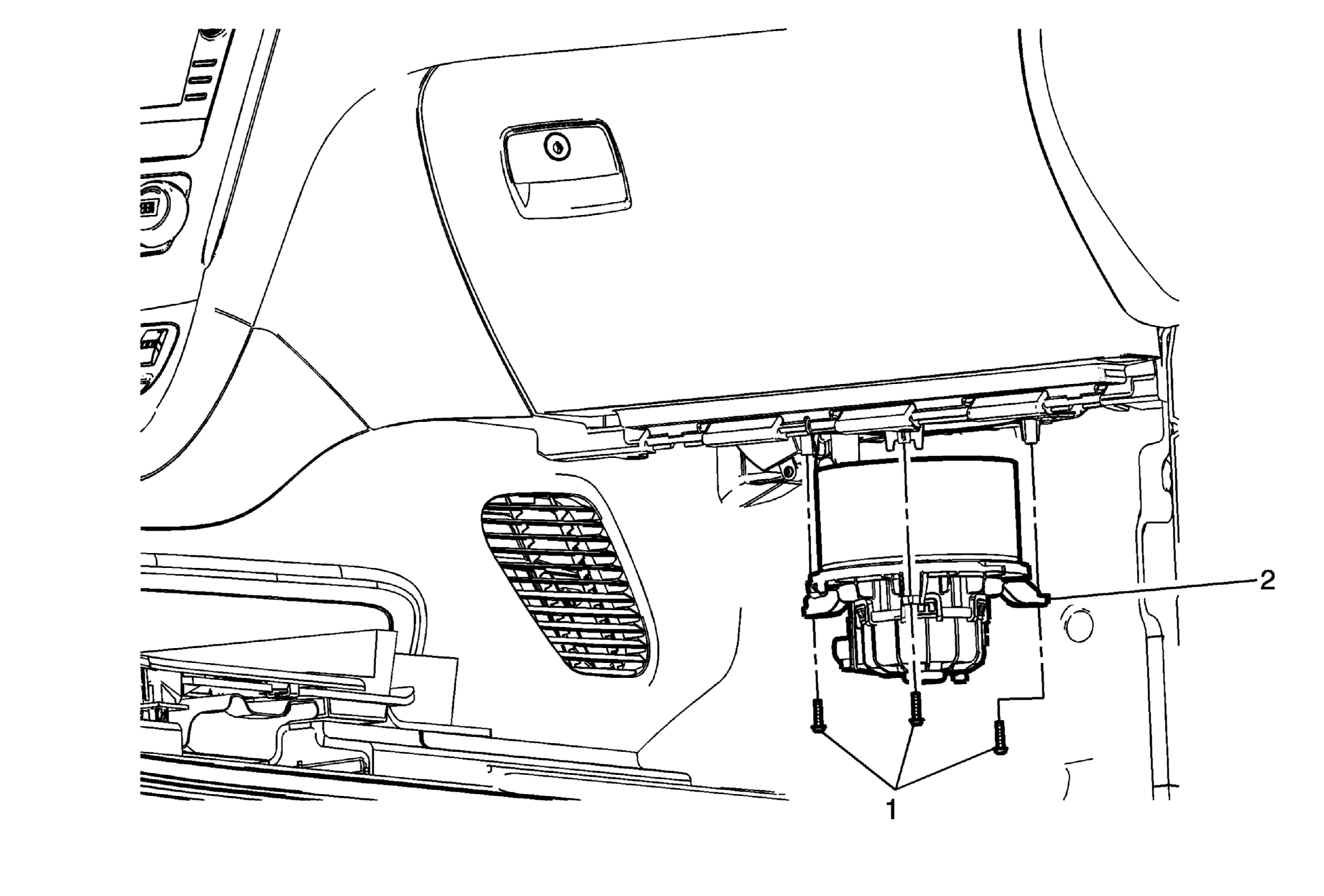

Fig 1: Blower Motor
GM2888679Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the right side instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
1 Blower Motor Screw (Qty: 3)
CAUTION:

Refer to Fastener Caution .
2 Blower Motor Assembly
  1. Disconnect the blower motor electrical connector.
  2. Disconnect the blower motor cooling duct.
