Blower Motor Control Module Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

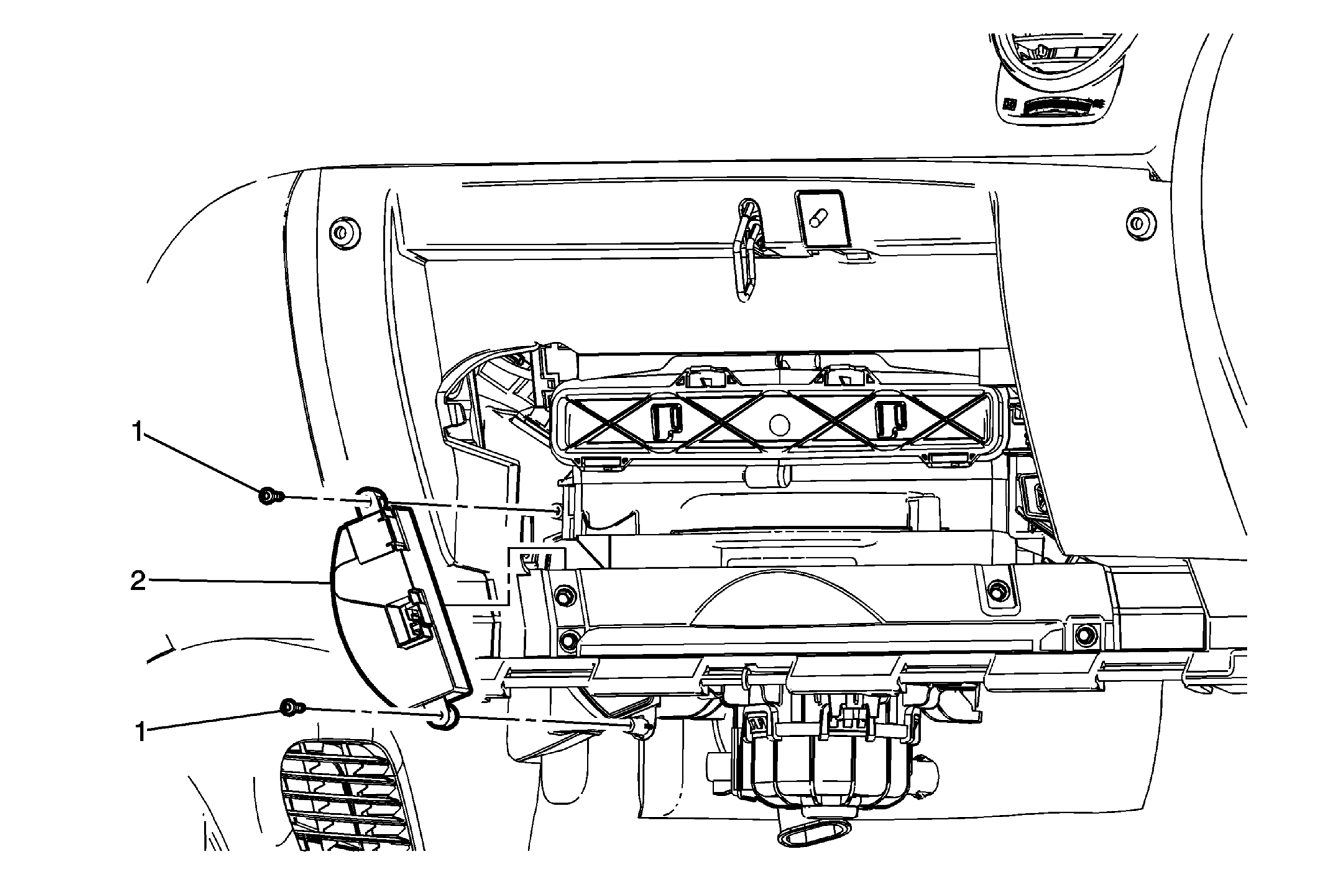

Fig 1: Blower Motor Control Module
GM2888977Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the right side instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
  2. Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement (Acadia)Instrument Panel Compartment Replacement (Enclave)Instrument Panel Compartment Replacement (Traverse) .
1 Blower Motor Control Module Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Blower Motor Control Module

Procedure

  1. Lift up and out through the instrument panel compartment assembly opening.
  2. Disconnect blower motor control module connector.
