Air Inlet Assembly Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

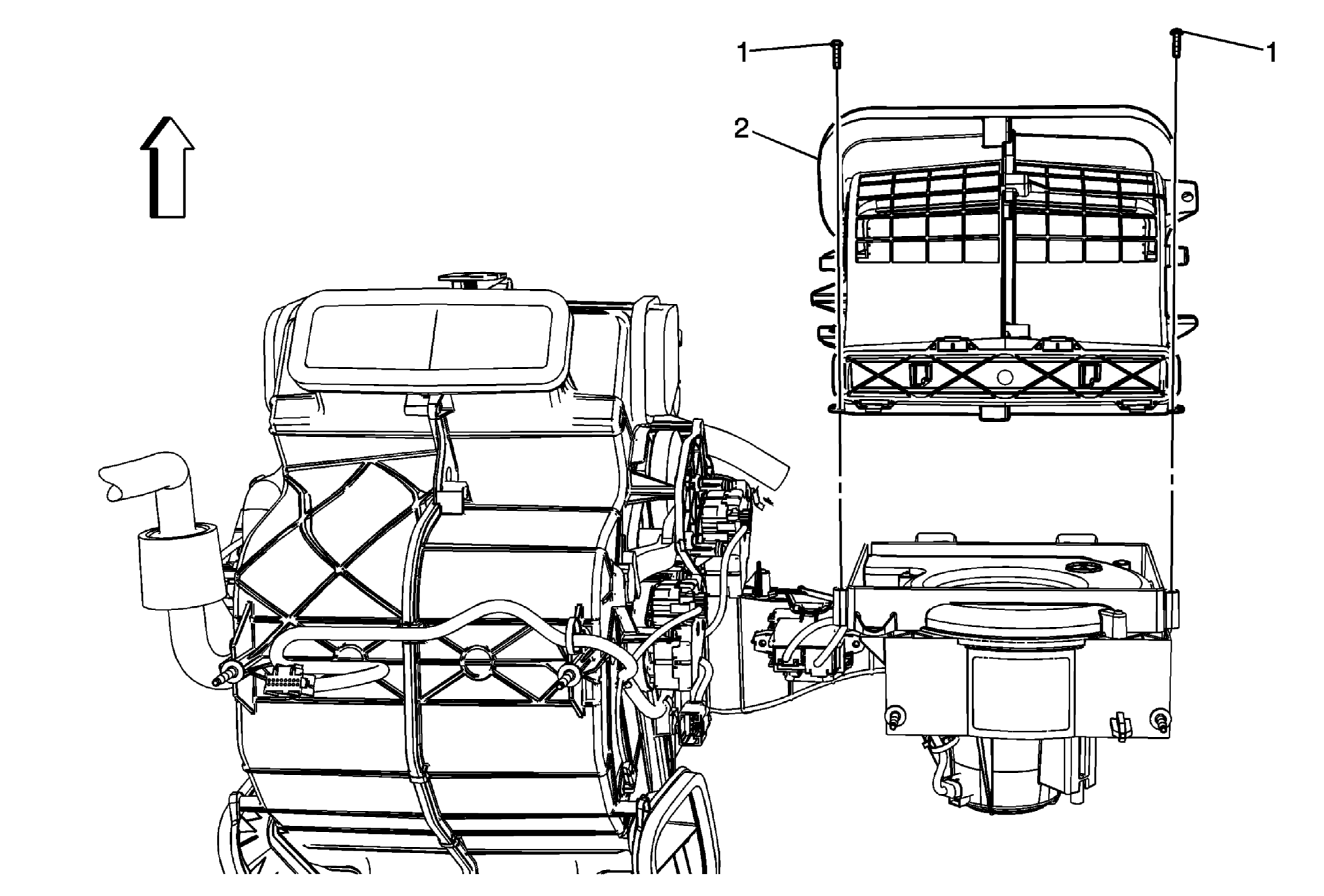

Fig 1: Locating Air Distributor Case

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air conditioning and heater module assembly (HVAC). Refer to Air Conditioning and Heater Module Assembly Removal and Installation . Reposition the wiring harnesses before removal.
1	Air Inlet Assembly Screw Qty: (2) CAUTION: Refer to Fastener Caution .
2	Air Inlet Assembly Procedure Disconnect the electrical connectors. Transfer all necessary components. Perform the actuator re-calibrated procedure. Refer to Actuator Recalibration .

Callout

Component Name

Preliminary Procedure

Remove the air conditioning and heater module assembly (HVAC). Refer to Air Conditioning and Heater Module Assembly Removal and Installation .
Reposition the wiring harnesses before removal.

Air Inlet Assembly Screw Qty: (2)

CAUTION:

Refer to Fastener Caution .

Air Inlet Assembly

Procedure

Disconnect the electrical connectors.
Transfer all necessary components.
Perform the actuator re-calibrated procedure. Refer to Actuator Recalibration .
