Air Conditioning Clutch Assembly Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

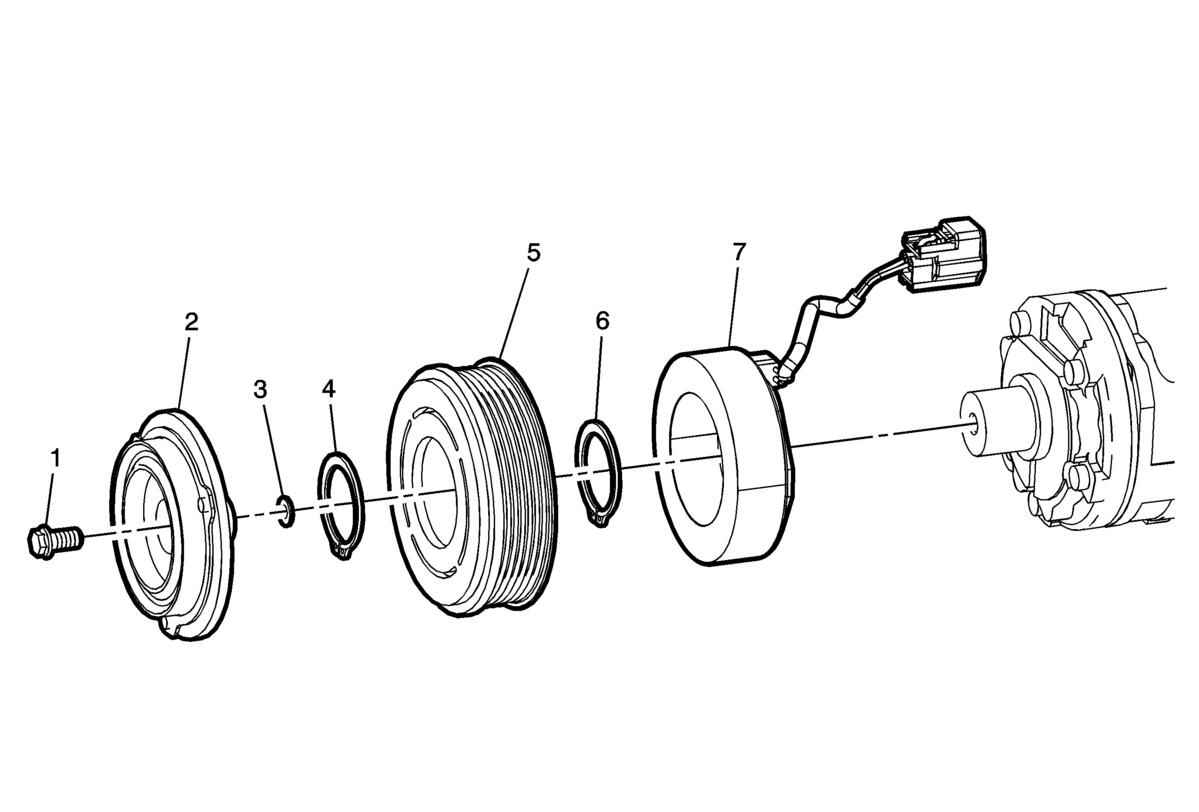

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement . |
|
| 1 | Air Conditioning Compressor Clutch Pulley Bolt
CAUTION:
Refer to Fastener Caution . Procedure Use the CH-37872 universal spanner wrench to hold the compressor clutch plate from turning when removing the nut. Tighten 18 N.m (13 lb ft) Special Tools CH-37872 Universal Spanner Wrench For equivalent regional tools, refer to Special Tools . |
| 2 | Air Conditioning Compressor Clutch Drive Plate Procedure Measure and adjust the air conditioning compressor clutch drive plate. Refer to Air Conditioning Clutch Drive Plate Adjustment . |
| 3 | Air Conditioning Compressor Clutch Shim (Qty: 3) |
| 4 | Retaining Ring |
| 5 | Air Conditioning Compressor Pulley |
| 6 | Retaining Ring |
| 7 | Air Conditioning Compressor Coil |
