Air Conditioning Clutch Drive Plate Adjustment

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

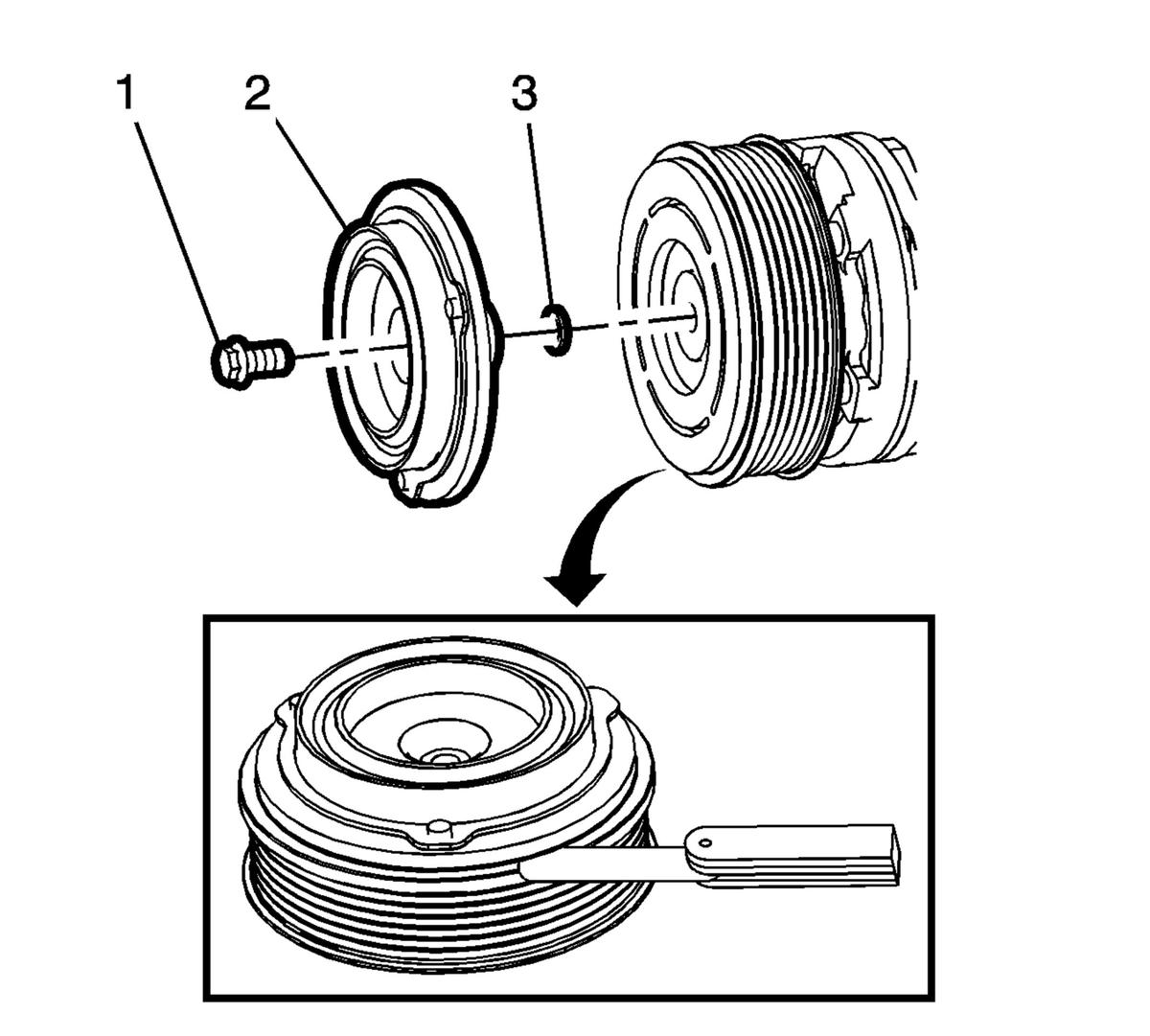

    Fig 1: AC Clutch Plate Assembly, Clutch Pulley Bolt And Shims
    GM2836394Courtesy of GENERAL MOTORS COMPANY
  1. Install the air conditioning clutch plate assembly (2).
    2. NOTE:

    Ensure the drive plate does not drag against the pulley when the pulley is rotated.

  2. Measure the air gap between the pulley and the drive plate. Adjust the shims (3) to achieve a 0.21-0.55 mm (0.008-0.022 in) air gap.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the air conditioning compressor clutch pulley bolt (1) and tighten to 18 N.m (13 lb ft).
