Temperature Valve Actuator Replacement - Right Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

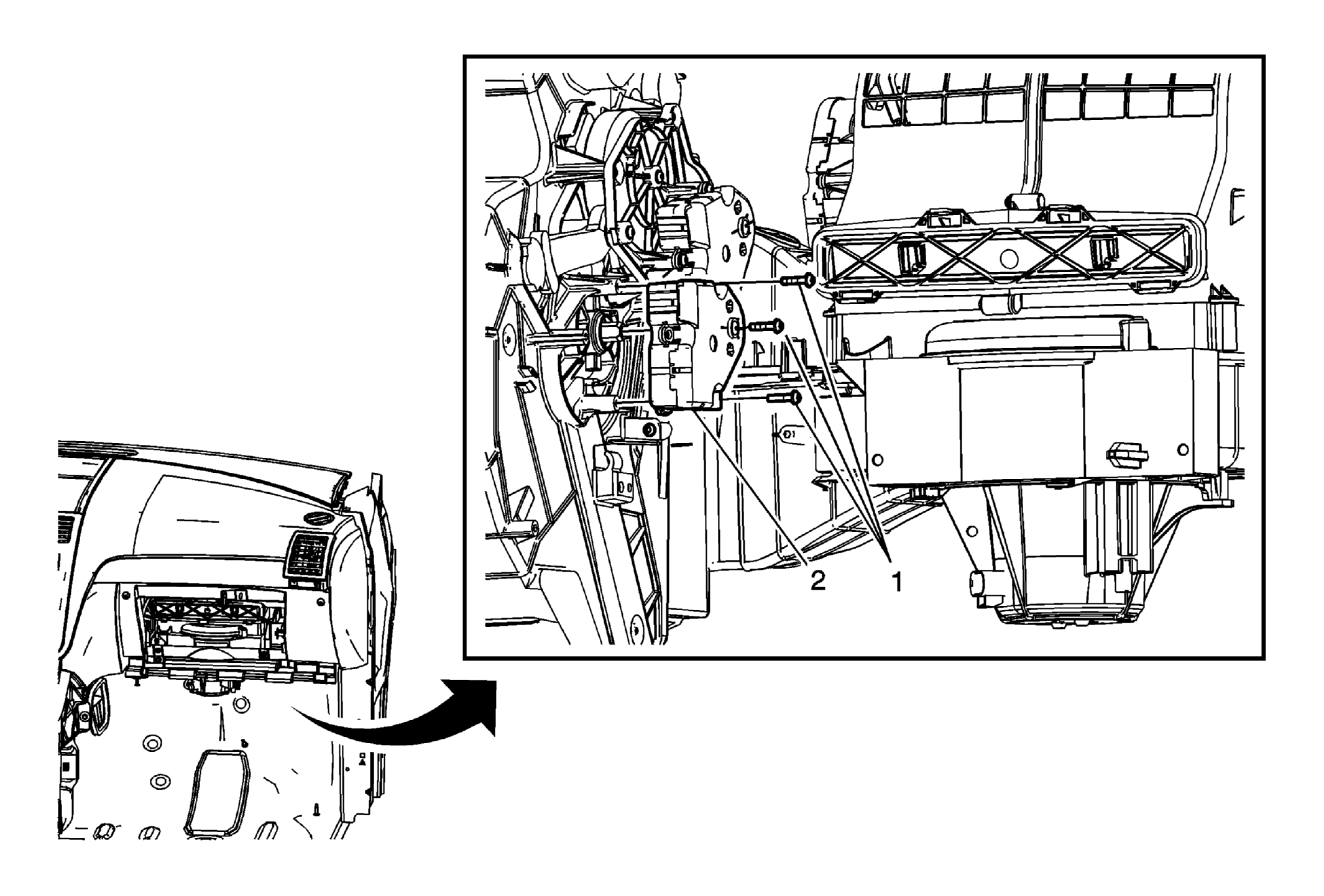

Fig 1: Temperature Valve Actuator - Right Side
GM1866740Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
CAUTION:

In order to avoid actuator damage, DO NOT apply power to the actuator when it is not installed in the HVAC module.

Preliminary Procedures

  1. Remove the front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Right Side (Acadia)Front Floor Console Extension Panel Replacement - Right Side (Enclave)Front Floor Console Extension Panel Replacement - Right Side (Traverse)
  2. Remove the instrument panel insulator - right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
  3. Remove the instrument panel (I/P) compartment. Refer to Instrument Panel Compartment Replacement (Acadia)Instrument Panel Compartment Replacement (Enclave)Instrument Panel Compartment Replacement (Traverse) .
1 Right Temperature Actuator Screw (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Right Temperature Actuator

Procedure

  1. Disconnect the electrical connectors.
  2. Re-calibrate the right temperature actuator. Refer to Actuator Recalibration .
