Temperature Valve Actuator Replacement - Left Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

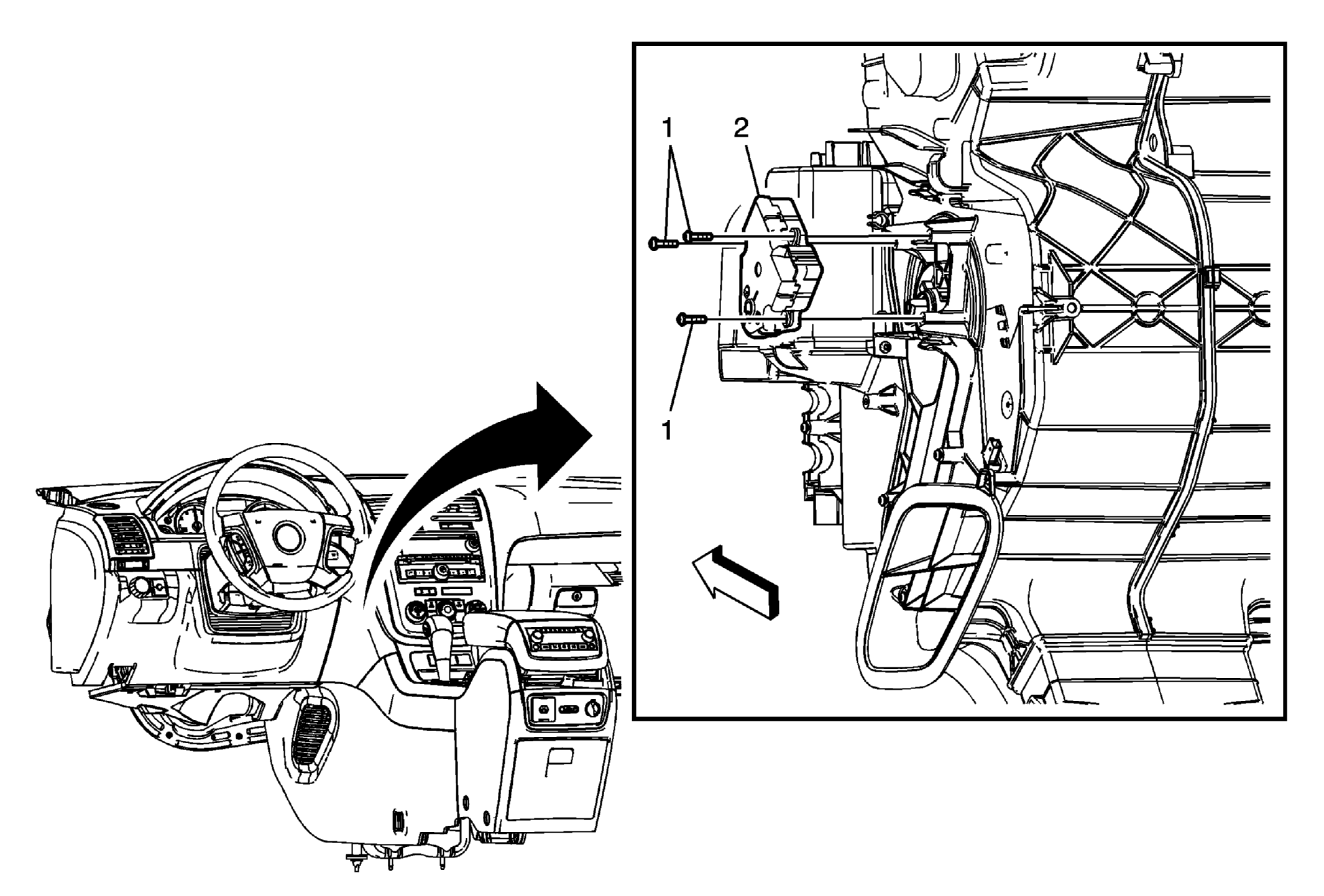

Fig 1: Temperature Valve Actuator - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: In order to avoid actuator damage, DO NOT apply power to the actuator when it is not installed in the HVAC module. Preliminary Procedure Remove the instrument panel insulator - left side. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
1	Left Temperature Actuator Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Left Temperature Actuator Procedure Disconnect the electrical connectors. Re-calibrate the right temperature actuator. Refer to Actuator Recalibration .

Callout

Component Name

CAUTION:

In order to avoid actuator damage, DO NOT apply power to the actuator when it is not installed in the HVAC module.

Preliminary Procedure Remove the instrument panel insulator - left side. Refer to Instrument Panel Insulator Panel Replacement - Left Side .

Left Temperature Actuator Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Left Temperature Actuator

Procedure

Disconnect the electrical connectors.
Re-calibrate the right temperature actuator. Refer to Actuator Recalibration .
