Inside Air Temperature Sensor Aspirator Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

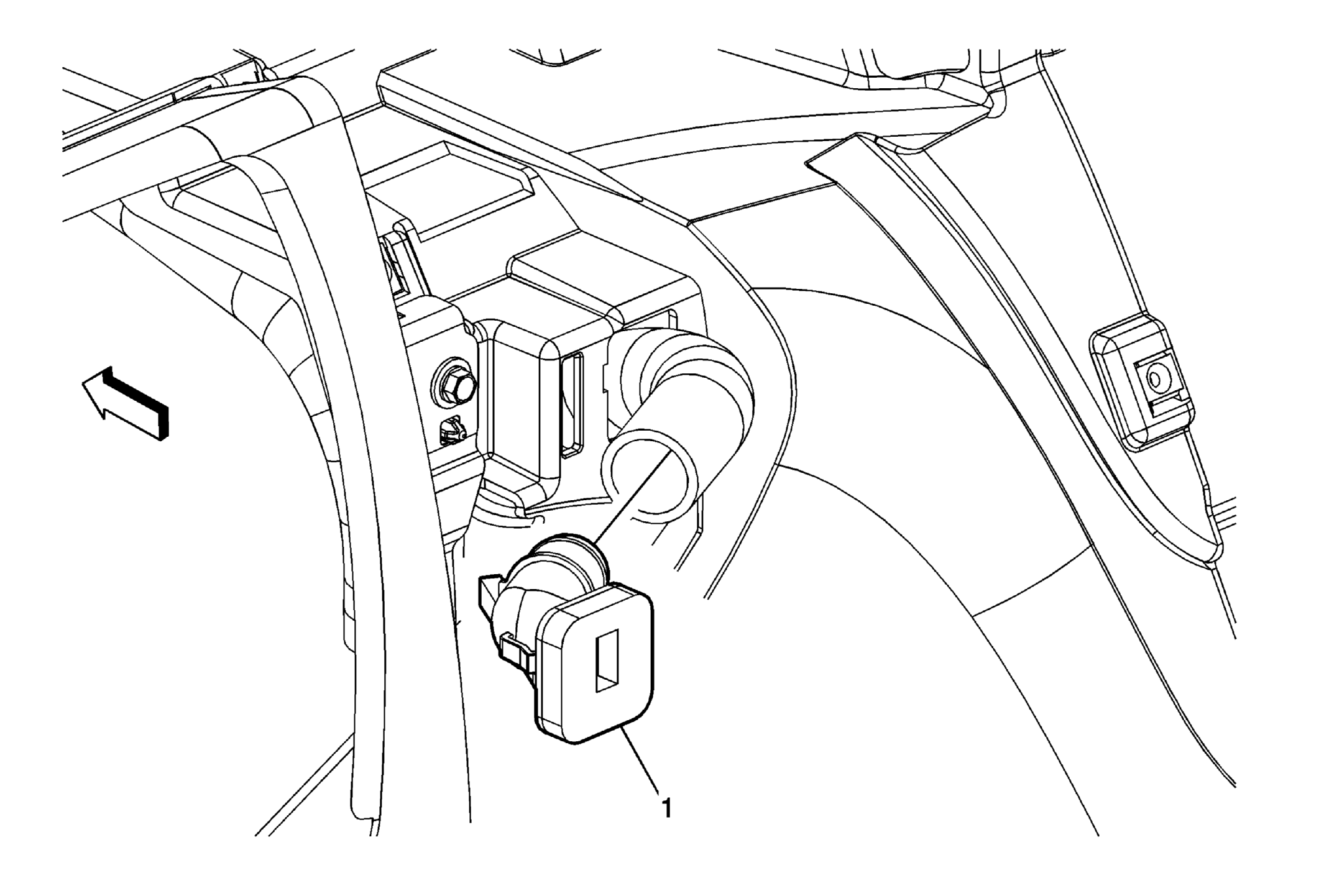

Fig 1: Inside Air Temperature Sensor Aspirator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Acadia)Driver Knee Bolster Replacement (Enclave)Driver Knee Bolster Replacement (Traverse) .
1	Aspirator Assembly Procedure Disconnect the electrical connector. Rotate the aspirator to remove from inlet hose.

Callout

Component Name

Preliminary Procedure
Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Acadia)Driver Knee Bolster Replacement (Enclave)Driver Knee Bolster Replacement (Traverse) .

Aspirator Assembly

Procedure

Disconnect the electrical connector.
Rotate the aspirator to remove from inlet hose.
