Duct Air Temperature Sensor Replacement - Upper Left Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

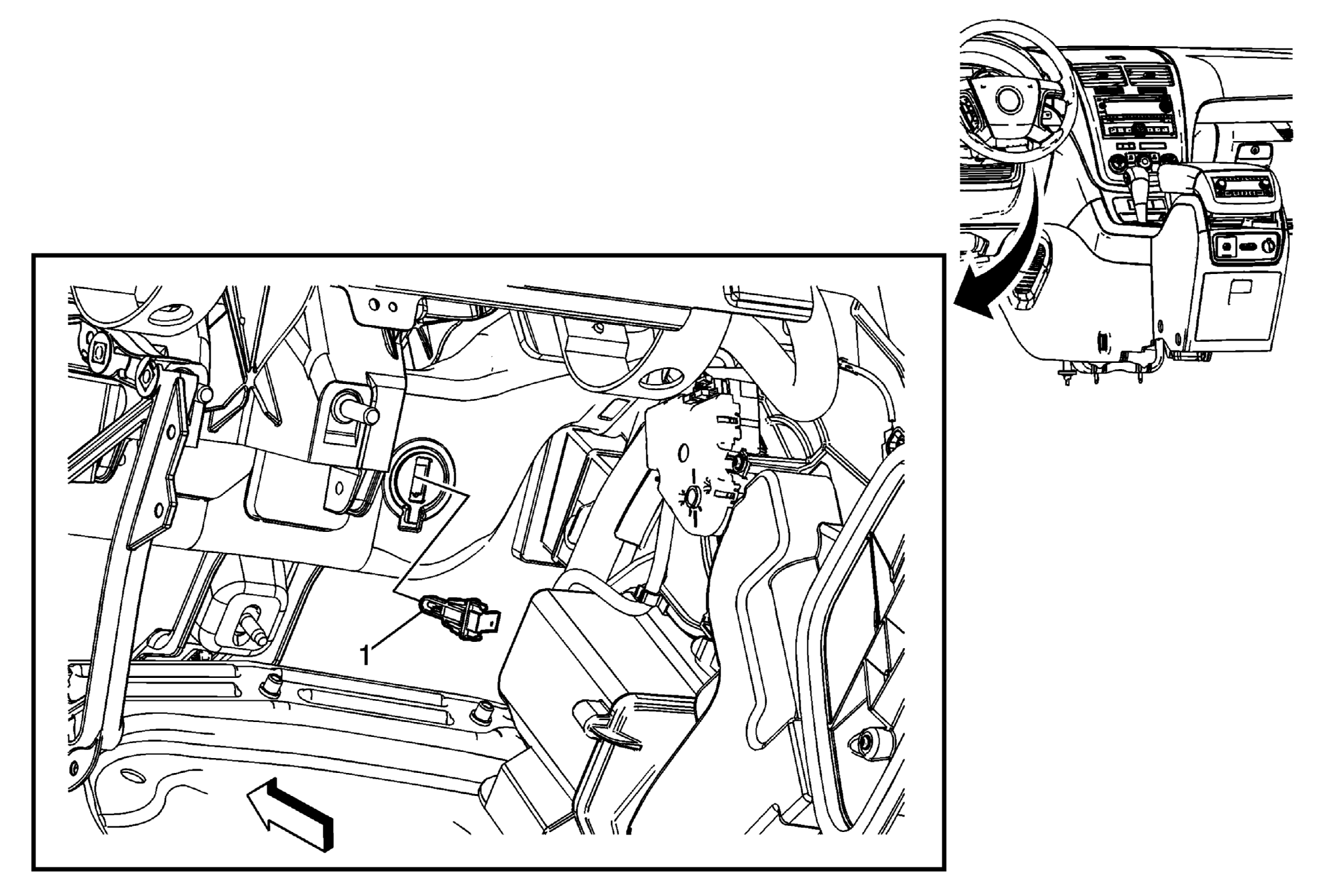

Fig 1: Duct Air Temperature Sensor - Upper Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Acadia)Driver Knee Bolster Replacement (Enclave)Driver Knee Bolster Replacement (Traverse) .
1	Air Temperature Sensor- Upper Left Procedure Disconnect the electrical connector. Grasp and pull sensor straight downward from air duct.

Callout

Component Name

Preliminary Procedure
Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Acadia)Driver Knee Bolster Replacement (Enclave)Driver Knee Bolster Replacement (Traverse) .

Air Temperature Sensor- Upper Left

Procedure

Disconnect the electrical connector.
Grasp and pull sensor straight downward from air duct.
