Duct Air Temperature Sensor Replacement - Lower Right Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

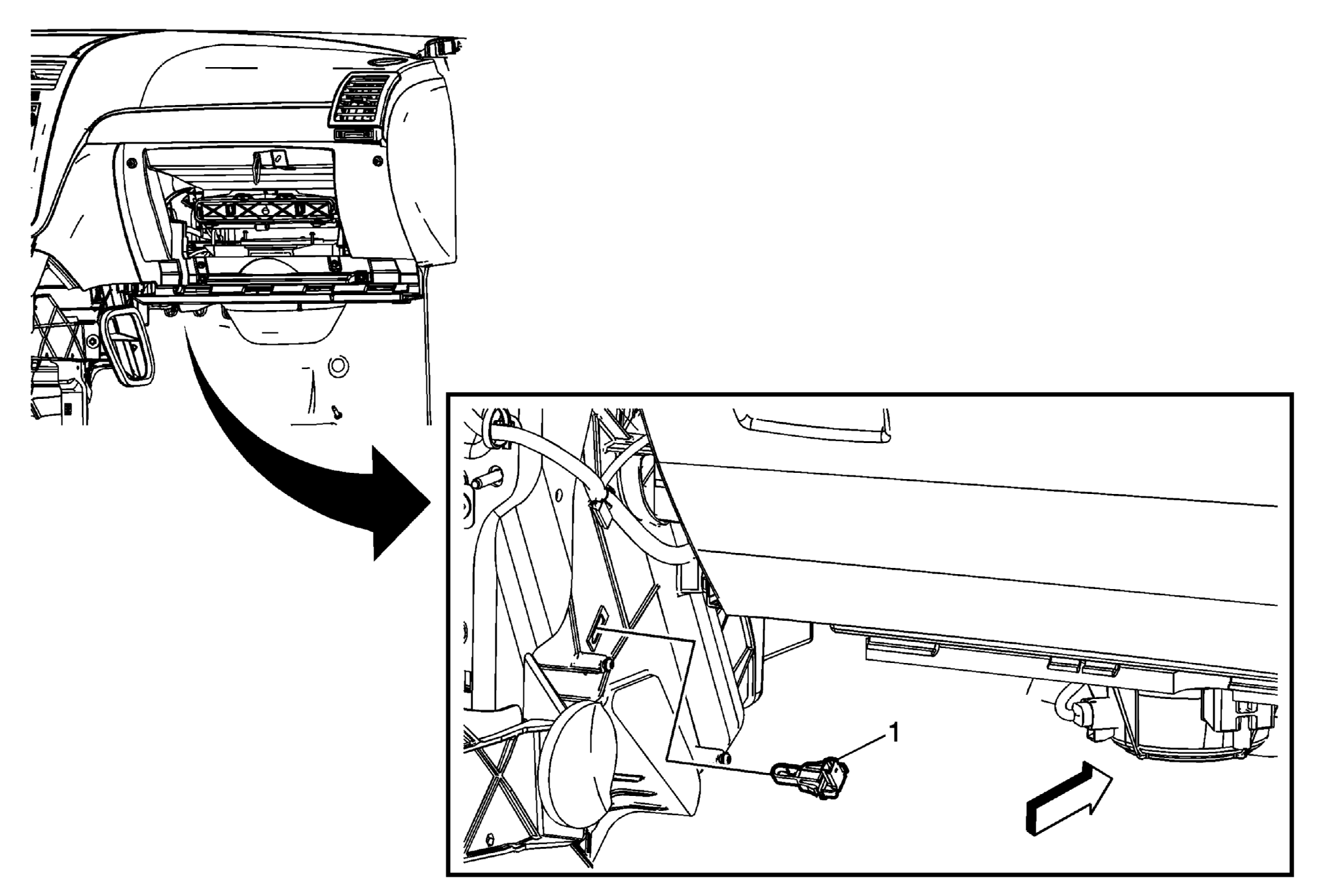

Fig 1: Duct Air Temperature Sensor - Lower Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console extension panel- right side. Refer to Front Floor Console Extension Panel Replacement - Right Side (Acadia)Front Floor Console Extension Panel Replacement - Right Side (Enclave)Front Floor Console Extension Panel Replacement - Right Side (Traverse) . Remove the instrument panel insulator- right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
1	Air Temperature Sensor- Lower Right Procedure Disconnect the electrical connector. Grasp and pull sensor straight outward from HVAC case.

Callout

Component Name

Preliminary Procedure

Remove the front floor console extension panel- right side. Refer to Front Floor Console Extension Panel Replacement - Right Side (Acadia)Front Floor Console Extension Panel Replacement - Right Side (Enclave)Front Floor Console Extension Panel Replacement - Right Side (Traverse) .
Remove the instrument panel insulator- right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side .

Air Temperature Sensor- Lower Right

Procedure

Disconnect the electrical connector.
Grasp and pull sensor straight outward from HVAC case.
