Rear Side Door Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

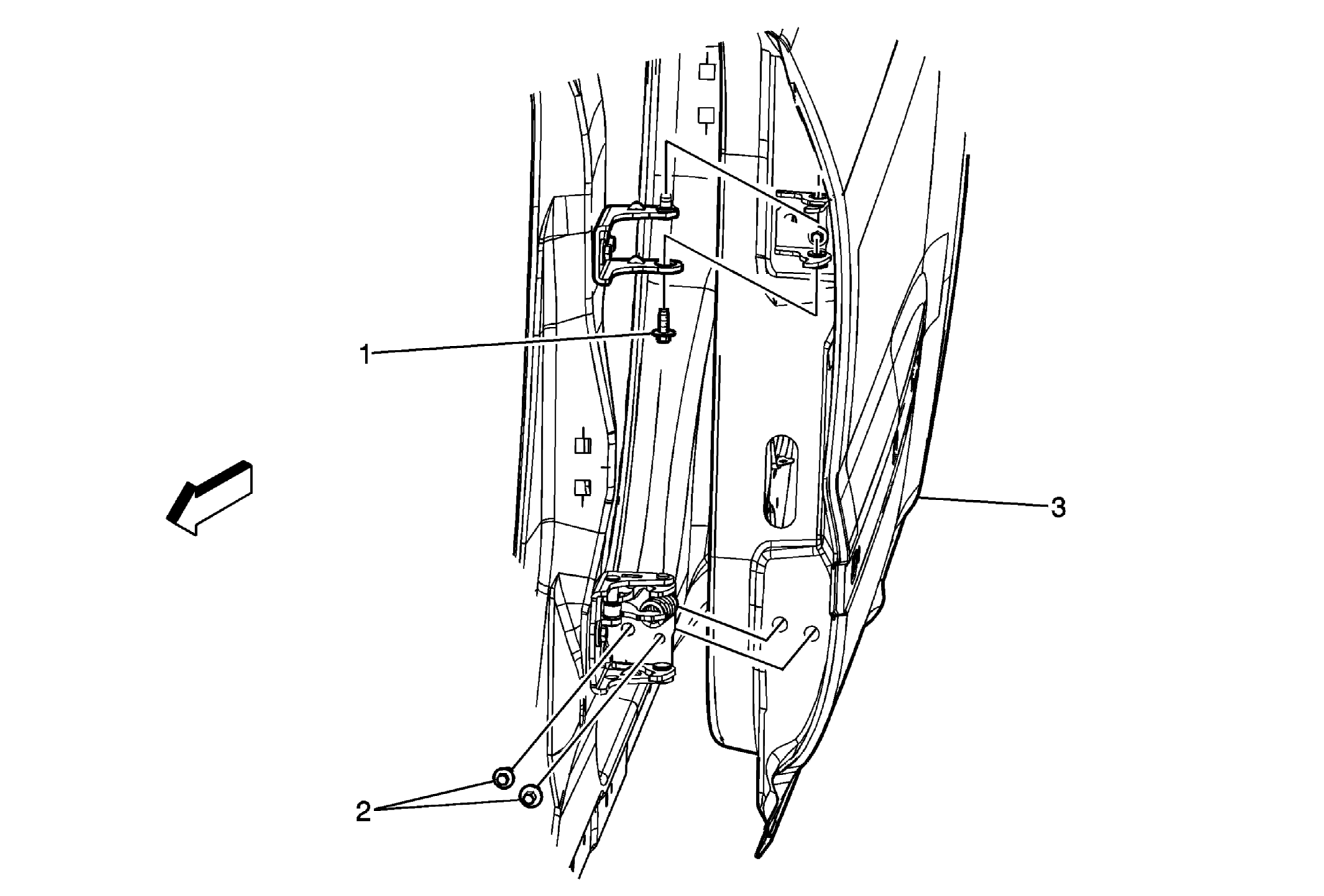

Fig 1: Rear Side Door

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Enclave)Rear Side Door Trim Panel Replacement (Acadia or Traverse) . Remove the water deflector.
1	Rear Side Door Hinge Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Support the door before removing the hinge bolts. Disconnect the electrical connector, if equipped. With an assistant, remove the door. Tighten 25 N.m (18 lb ft)
2	Rear Side Door Hinge Bolt (Qty: 2) Tighten 25 N.m (18 lb ft)
3	Rear Side Door Assembly Procedure Check the door for proper alignment, then adjust as necessary. NOTE: When replacing the door it is necessary to transfer all of the internal components.
