Windshield Washer Hose Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

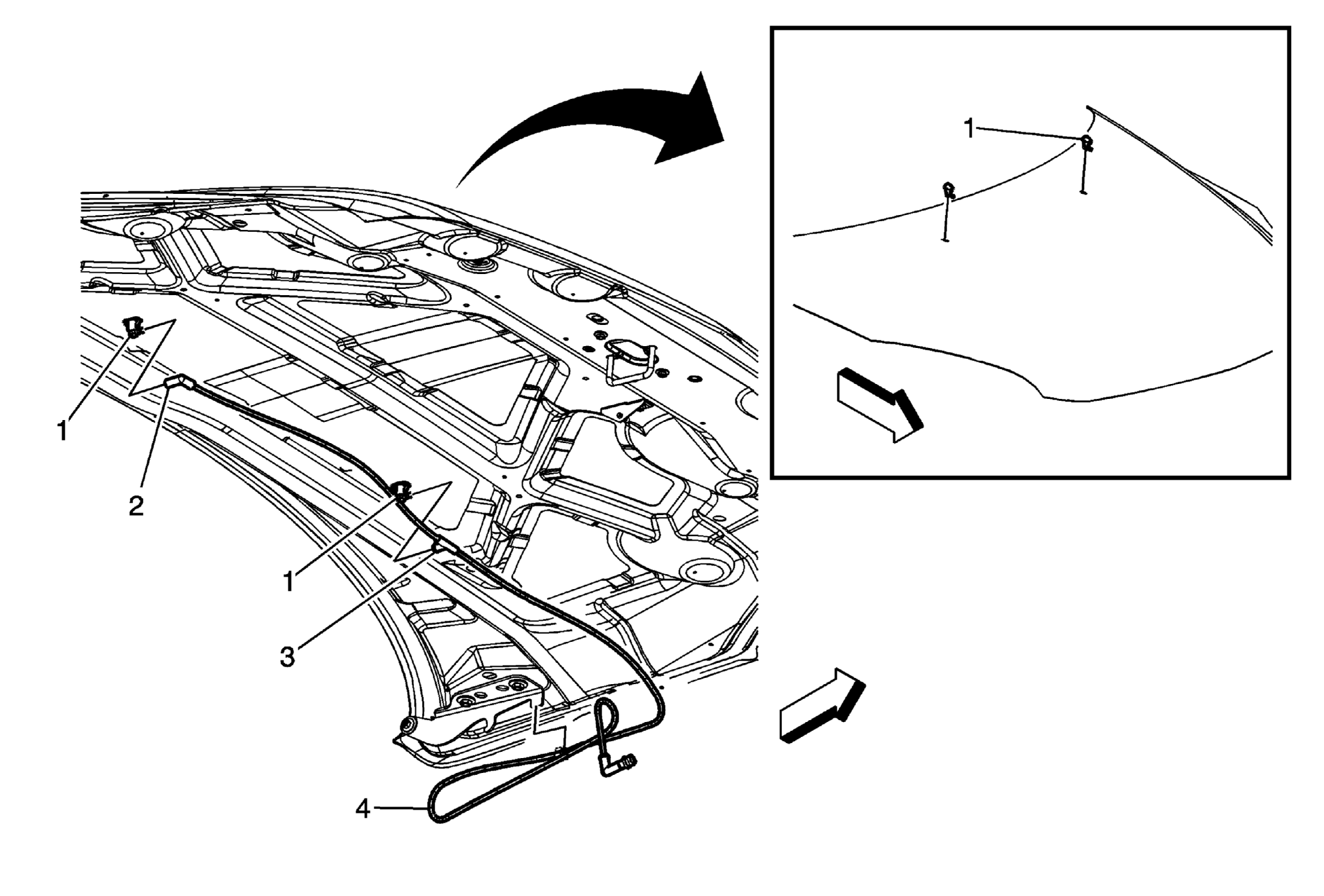

Fig 1: Windshield Washer Hose (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the hood insulator. Refer to Hood Insulator Replacement .
1	Windshield Washer Nozzle Procedure Disconnect the washer hose. Pinch the washer nozzle tabs and push outward from the hood to remove.
2	Windshield Washer Nozzle Hose Assembly Elbow
3	Windshield Washer Nozzle Hose Assembly Tee
4	Windshield Washer Nozzle Hose Assembly Procedure Disconnect the integral clip from the driver side hood hinge in order to release the hose from the hinge. Disconnect the washer hose from the washer pump hose connection.
