Hood Primary Latch Release Cable Replacement (Acadia, Enclave, Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

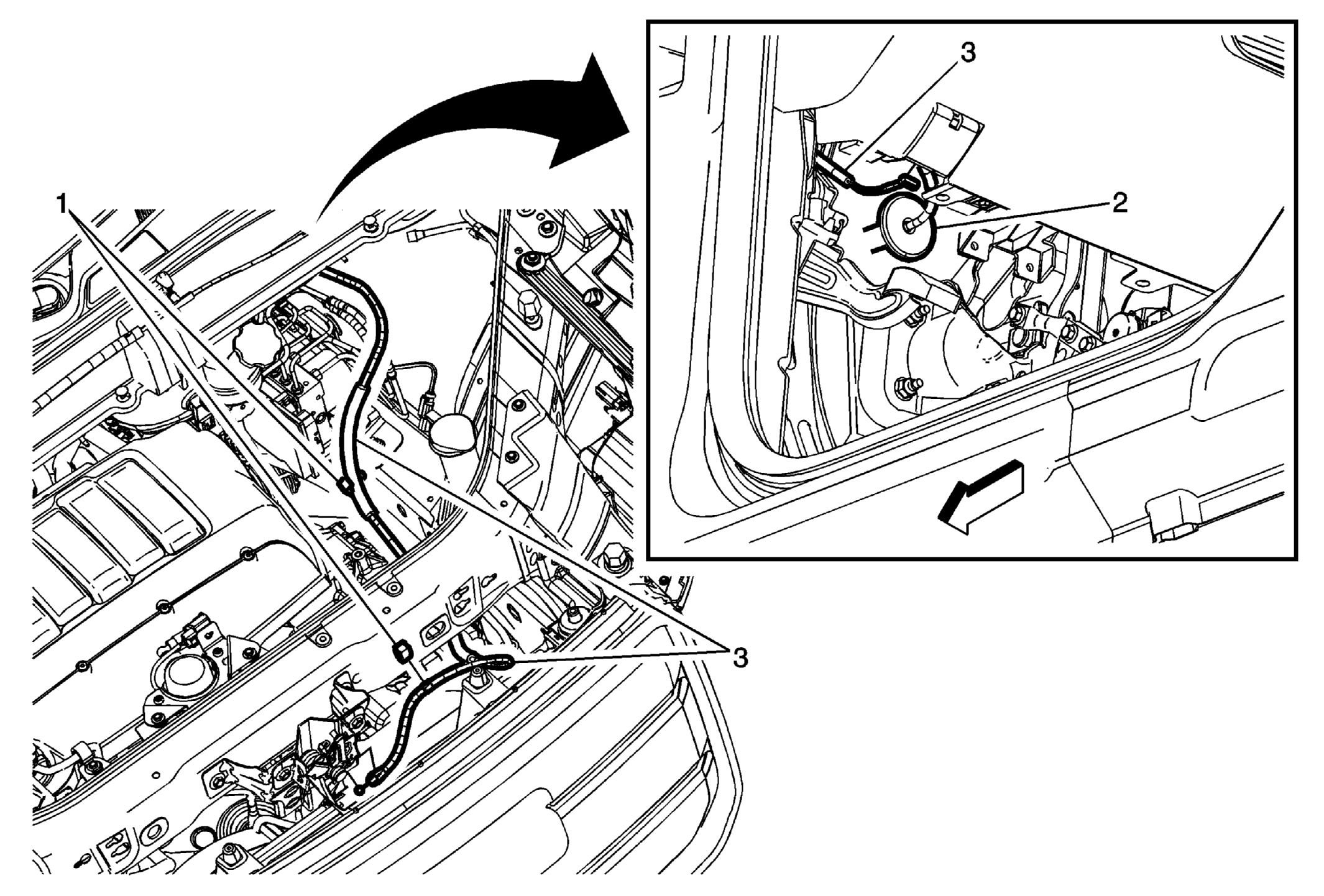

Fig 1: Hood Primary Latch Release Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel insulator panel replacement. Refer to Instrument Panel Insulator Panel Replacement - Left Side Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Enclave) Front Compartment Front Sight Shield Replacement (Traverse) Front Compartment Front Sight Shield Replacement (Acadia) Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .
1	Hood Latch Release Cable Retainer
2	Hood Latch Release Cable Grommet
3	Hood Latch Release Cable Procedure Disconnect the hood primary latch release cable from the primary hood latch. Disconnect the hood primary latch release cable handle from the hood latch cable bracket. Release the hood primary latch release cable grommet at the dash panel. Remove cable by pulling through the dash panel from inside the vehicle.
