Hood Latch Support Replacement (Acadia, Enclave, Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

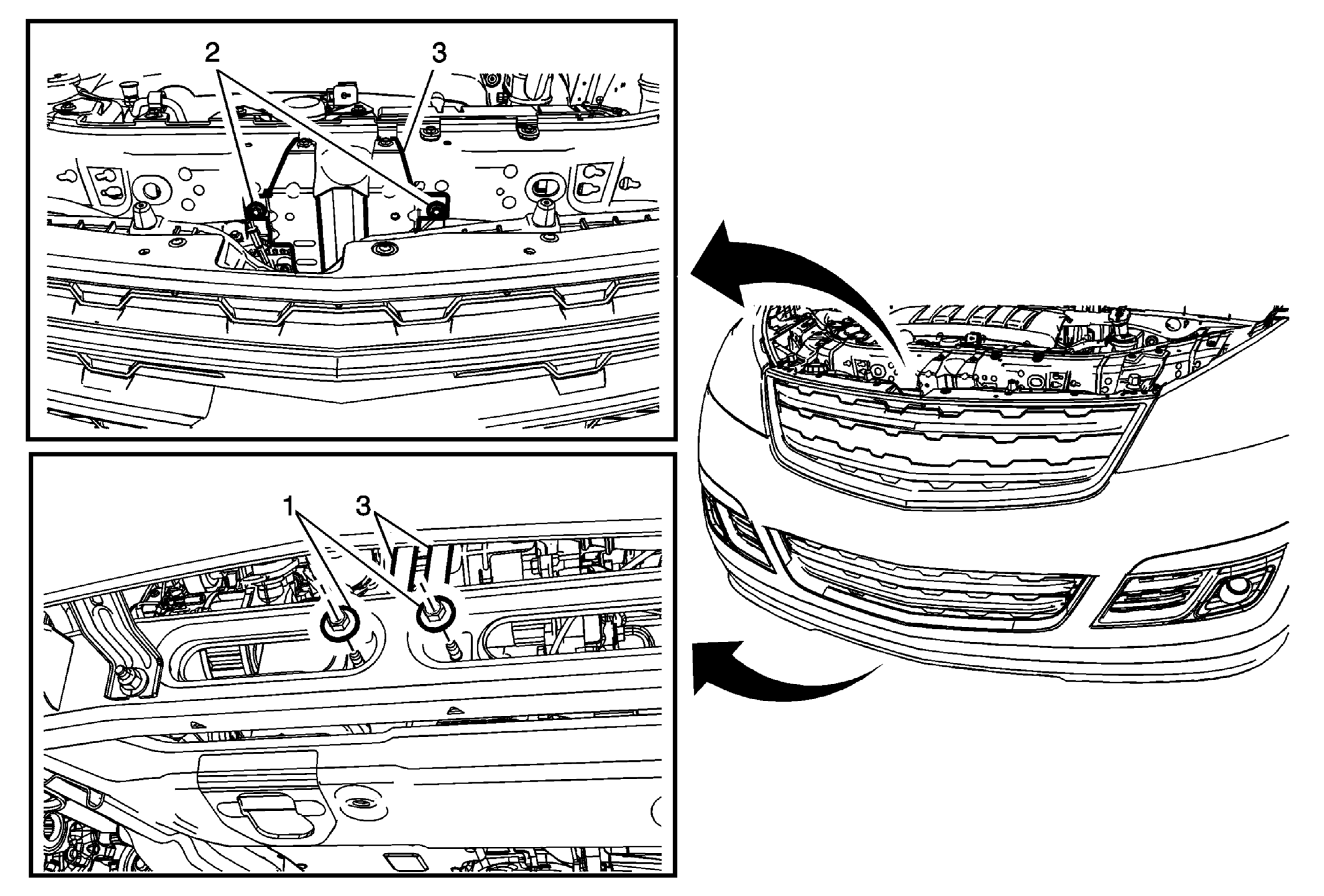

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement . |
|
| 1 | Hood Latch Support Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Hood Latch Support Bolt (Qty: 2) Tighten 10 N.m (89 lb in) |
| 3 | Hood Latch Support Unclip the electrical harness from the hood latch support. |
