Hood Primary and Secondary Latch Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

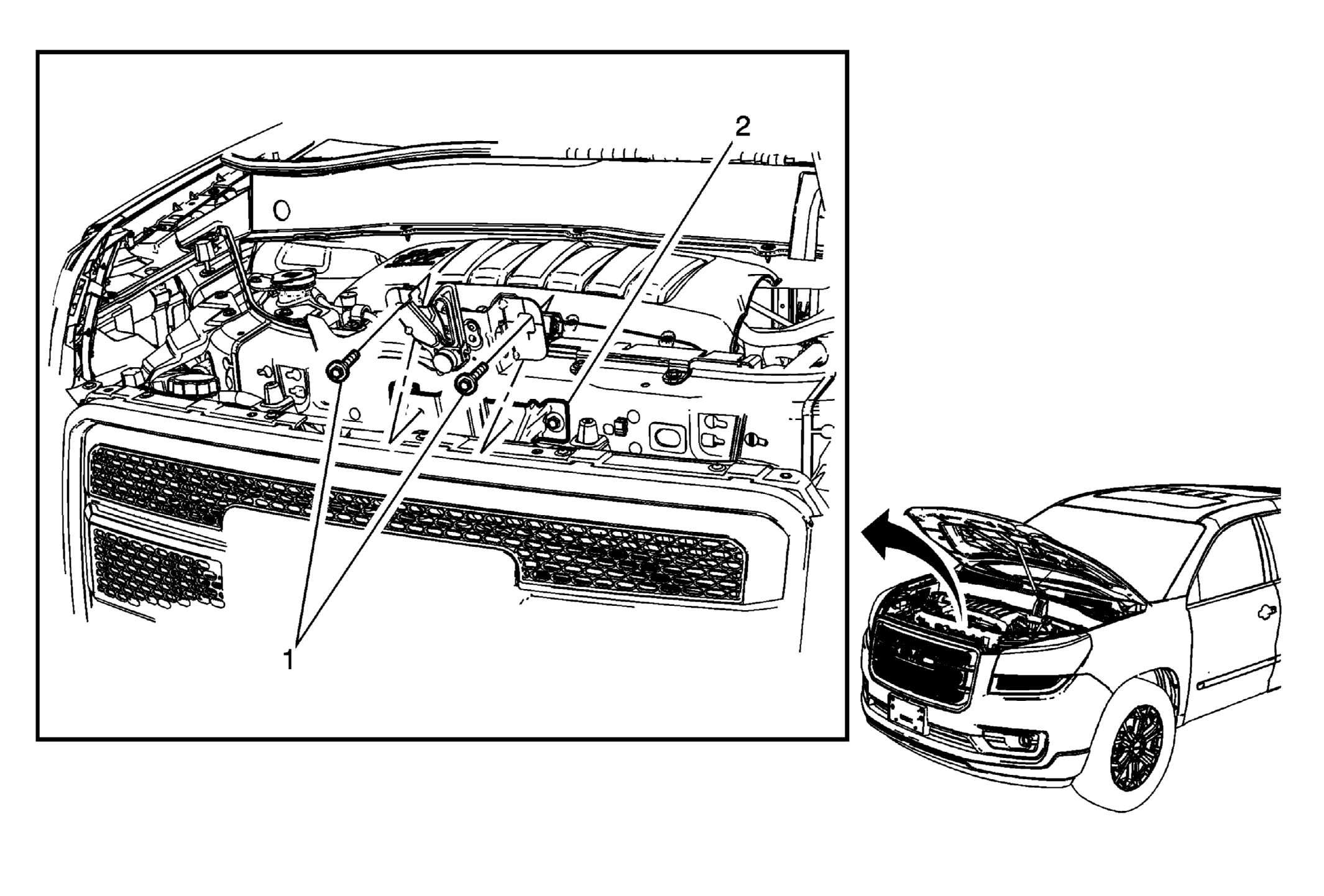

Fig 1: Hood Primary and Secondary Latch
GM2890788Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Enclave) Front Compartment Front Sight Shield Replacement (Traverse) Front Compartment Front Sight Shield Replacement (Acadia) .
1 Hood Primary and Secondary Latch Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Hood Primary and Secondary Latch

Procedure

  1. Disconnect the release cable from the hood primary latch.
  2. Disconnect the electrical connector.
