Air Inlet Grille Panel Extension Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
Preliminary Procedure
Open the hood in order to access the air inlet grille panel extension. |
| 1 |

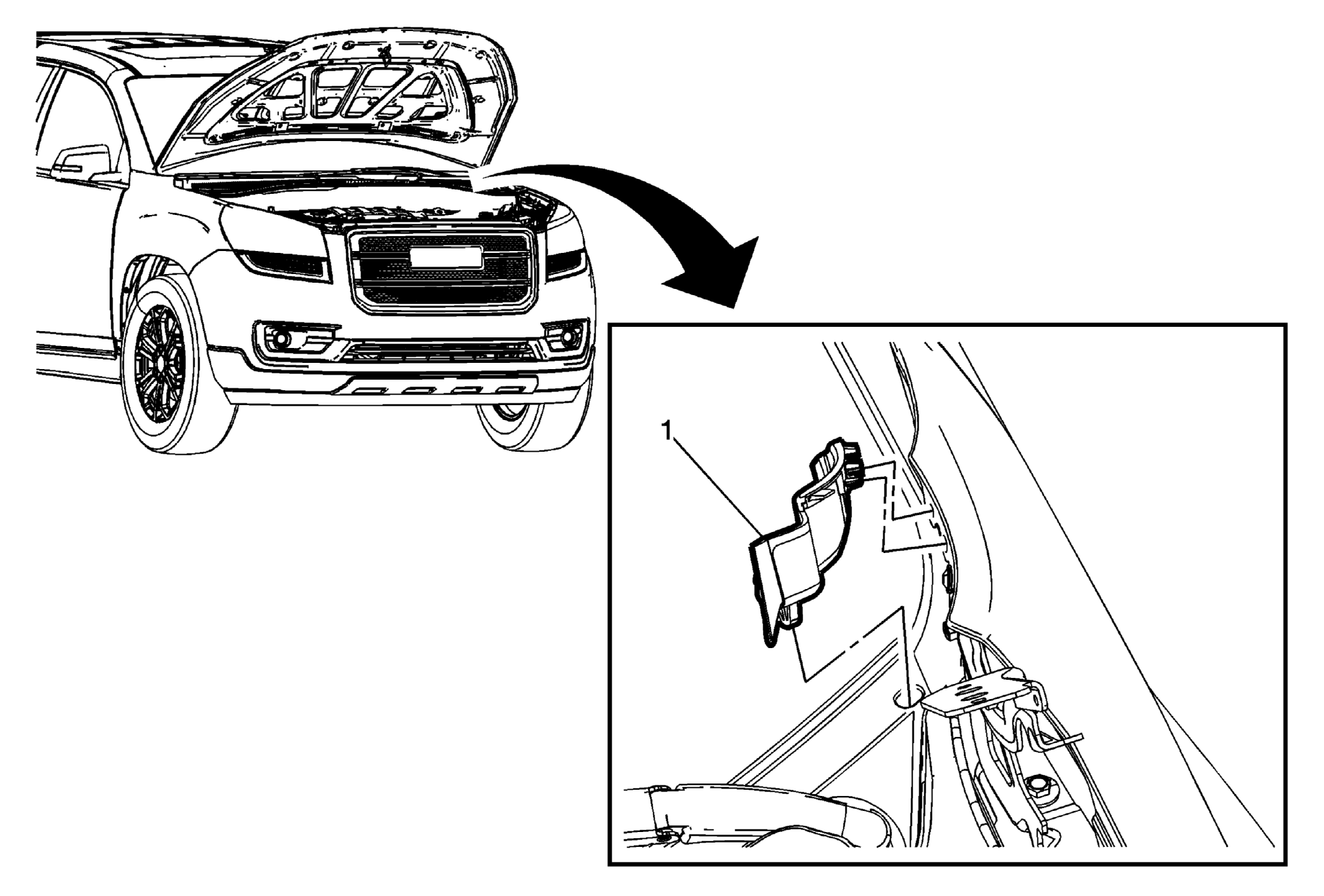

Air Inlet Grille Panel Extension
Procedure
Release the tabs securing the air inlet grille panel extension to the air inlet grille panel assembly and fender. |
