Radiator Air Side Baffle and Deflector Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

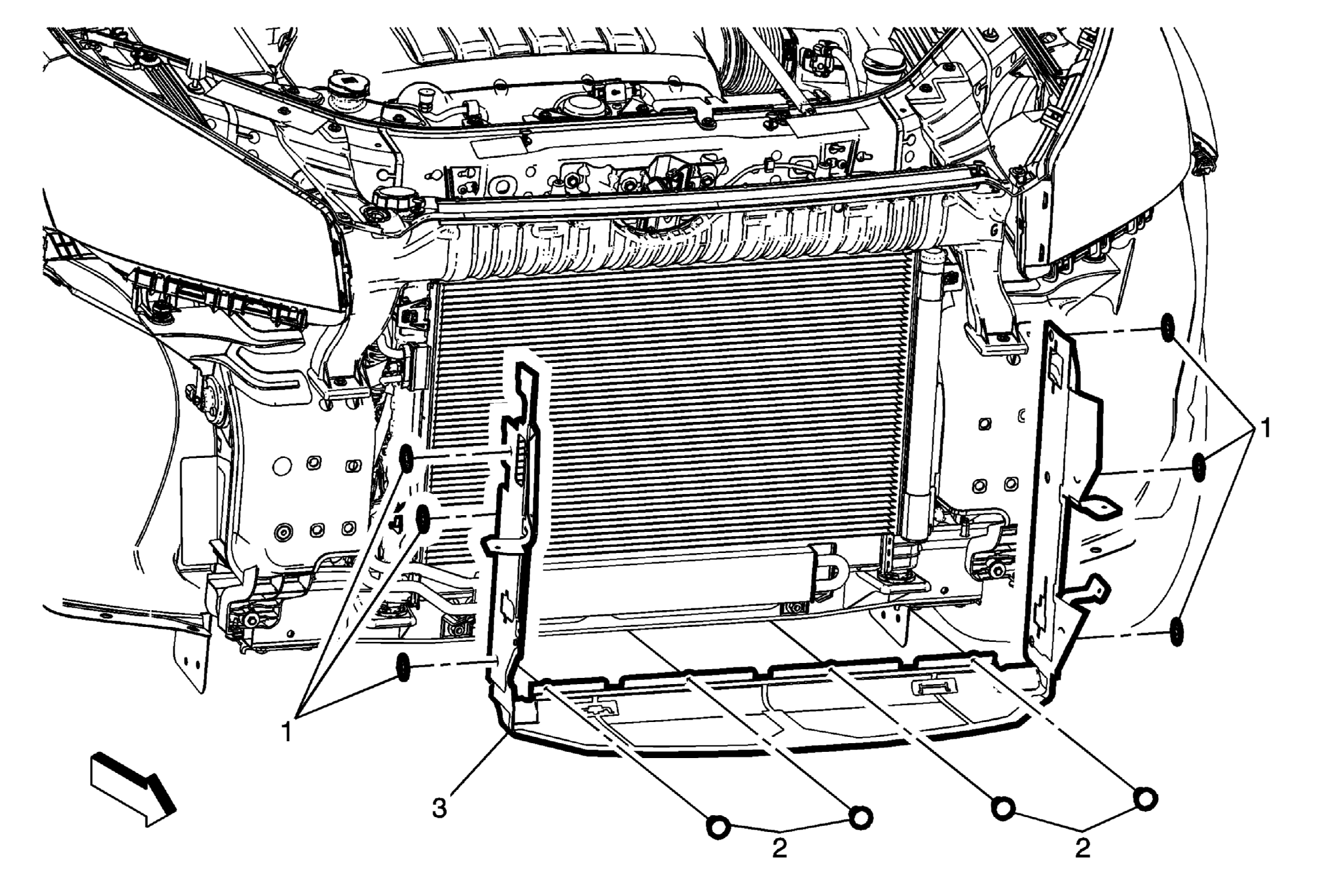

Fig 1: Radiator Air Side Baffle And Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement (Acadia) . Reposition the power steering fluid cooler without disconnecting the lines. Refer to Power Steering Fluid Cooler Replacement .
1	Radiator Air Side Baffle and Deflector Retainer (Qty: 6)
2	Radiator Air Side Baffle and Deflector Retainer (Qty: 4)
3	Radiator Air Side Baffle and Deflector Procedure Pull the sides of the radiator air side baffle and deflector away from the radiator and lower to remove.
