Front Bumper Impact Bar Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

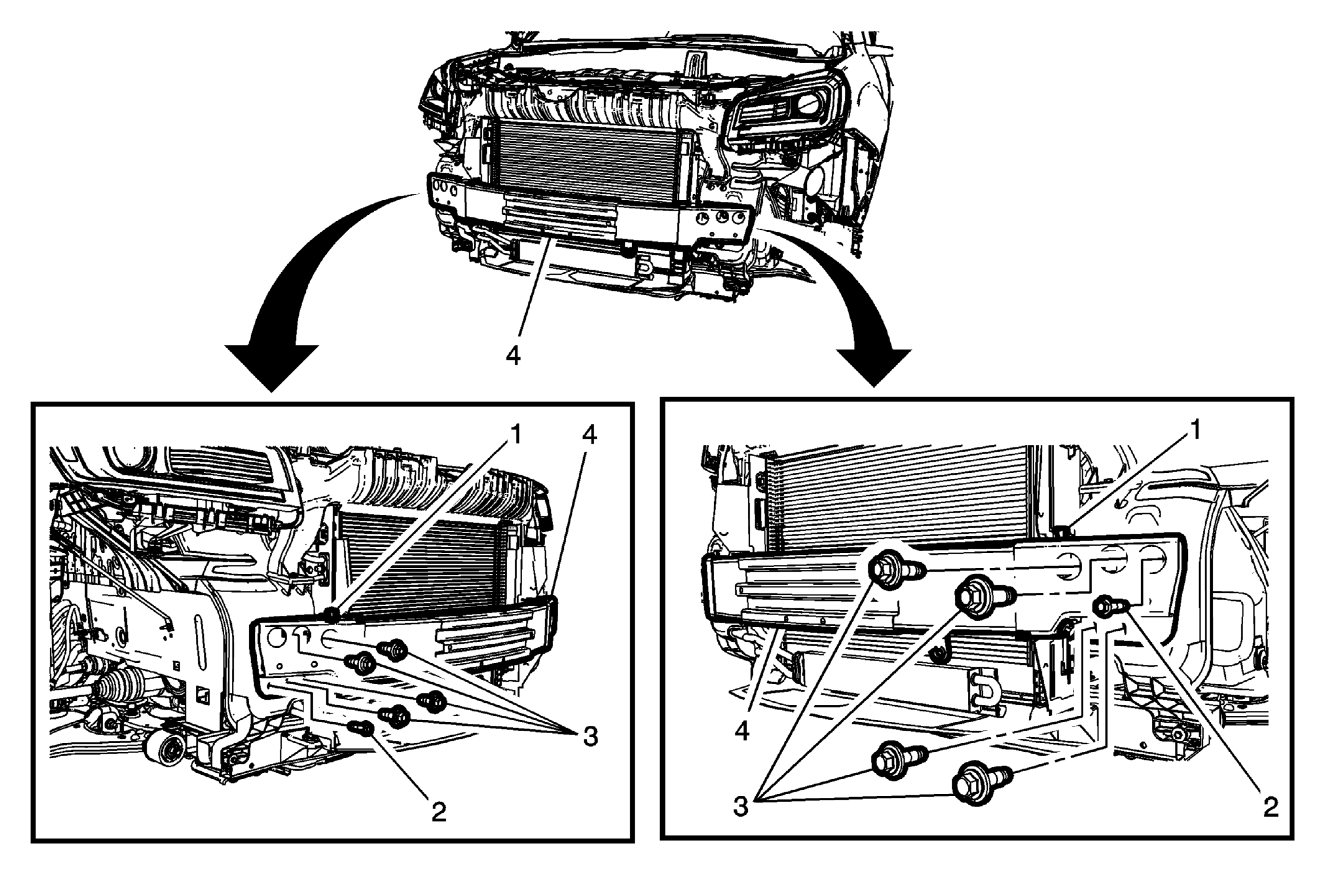

Fig 1: Front Bumper Impact Bar (Acadia)
GM2878193Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Acadia) .
1 Radiator Air Baffle Push-In Retainer (Qty: 4)
Procedure
Remove the 4 radiator air baffle push-in retainers.
2 Front Bumper Impact Bar Flange Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .
3 Front Bumper Impact Bar Bolt (Qty: 8)
Tighten
50 N.m (37 lb ft)
4 Front Bumper Impact Bar

Procedure

  1. Disconnect the electrical connector.
  2. Transfer parts as necessary.
