Right Transfer Case, Input and Output Drive Shaft Removal

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

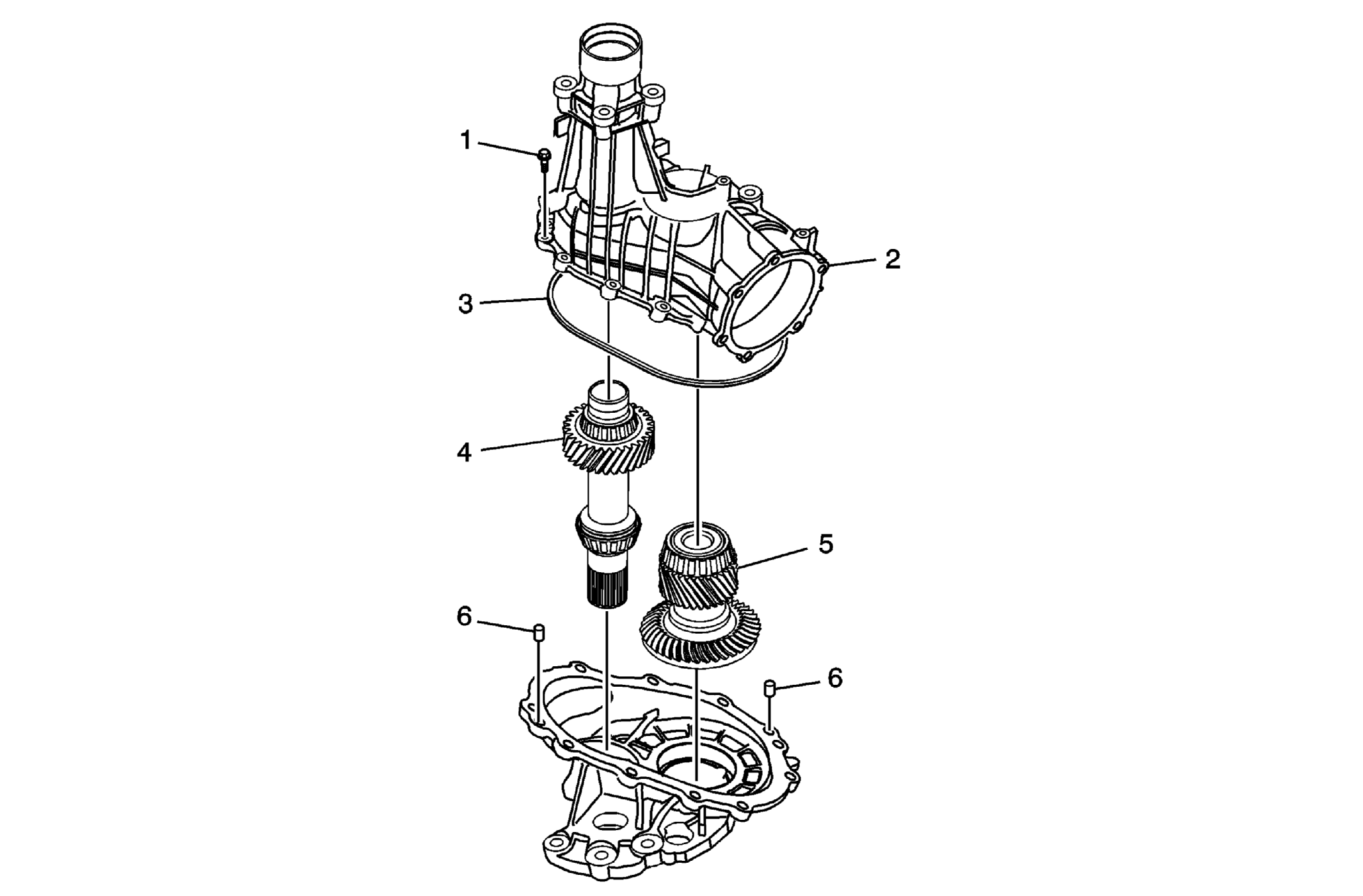

Fig 1: Identifying Right Transfer Case, Input & Output Drive Shaft

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transfer Case Half Bolt (Qty: 11)
2	Transfer Case - Right
3	Transfer Case Seal from the Transfer Case - Right
4	Transfer Case Input Shaft
5	Transfer Case Rear Output Drive Shaft
6	Transfer Case Half Locating Pin (Qty: 2) NOTE: Remove the pins only if damaged. Inspect the case for similar damage. Refer to Transfer Case Cleaning and Inspection .
