Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

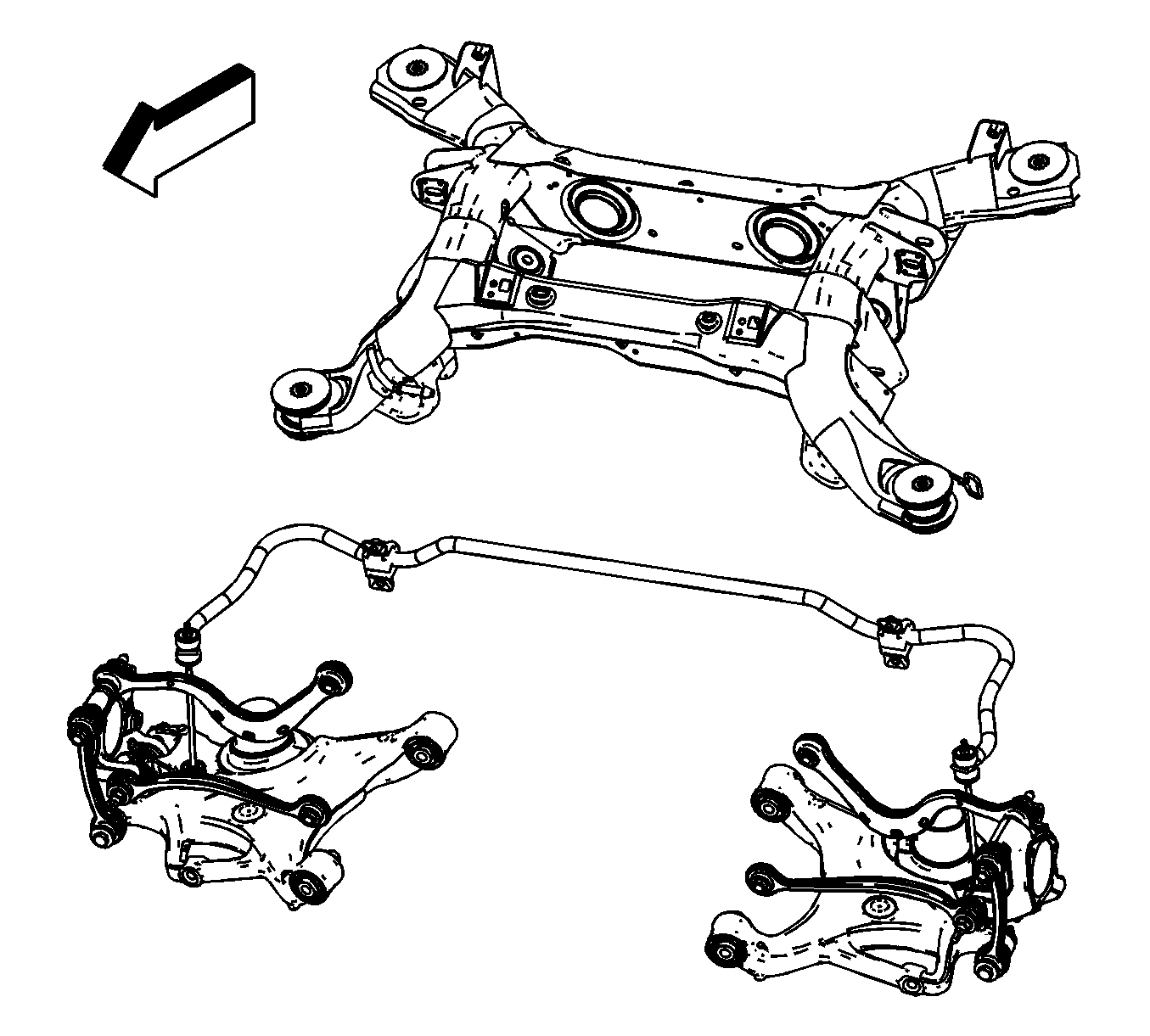

    Fig 1: View Of Rear Suspension Crossmember & Suspension Components
    GM1854056Courtesy of GENERAL MOTORS COMPANY
  1. Install the following suspension components to the rear suspension crossmember:

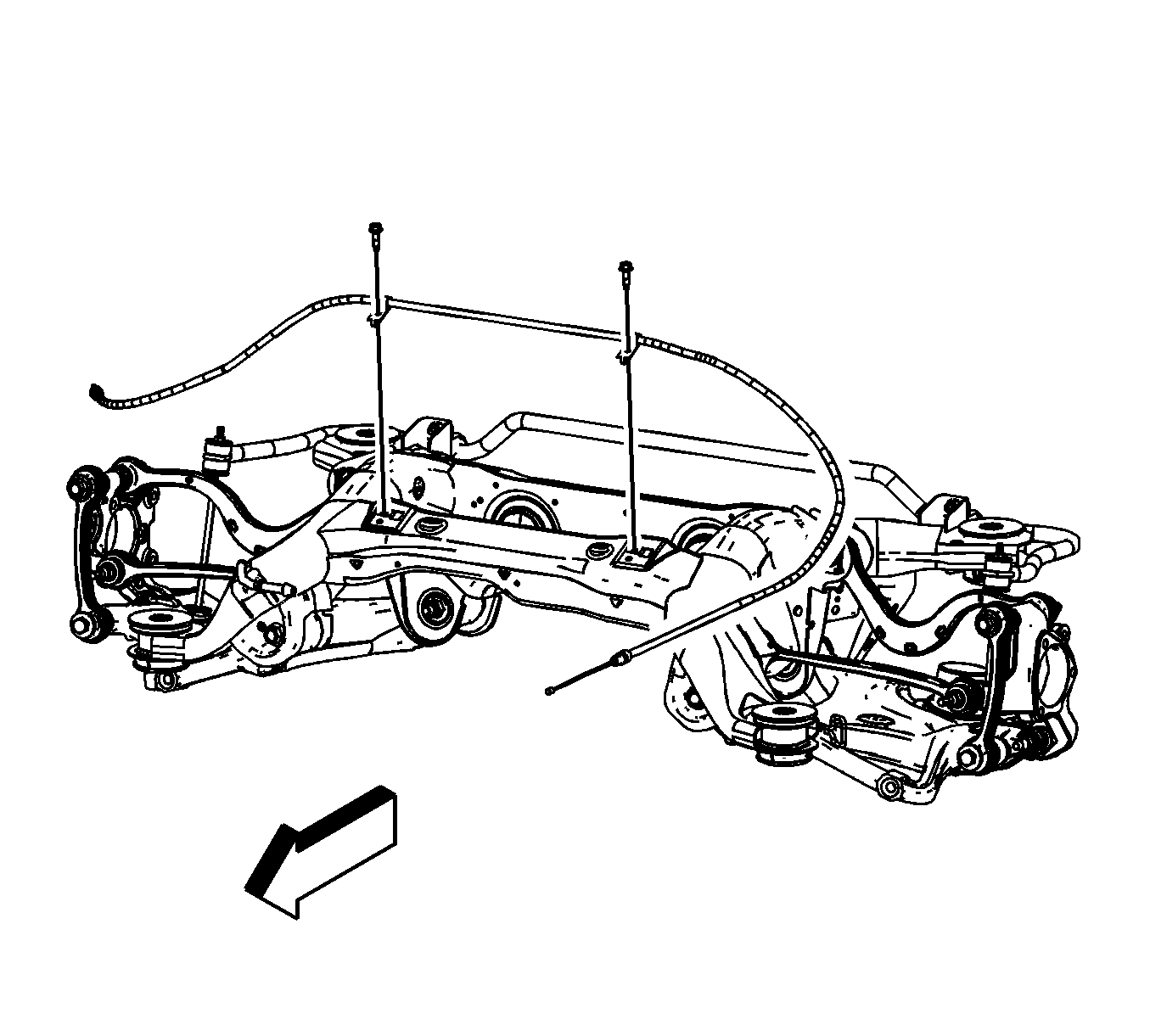

  2. Fig 2: Identifying Right Park Brake Cable & Bolts
    GM1854053Courtesy of GENERAL MOTORS COMPANY
  3. Install the right park brake cable to the rear suspension crossmember.
  4. CAUTION:

    Refer to Fastener Caution .

  5. Install the right park brake cable retaining bolts to the rear suspension crossmember.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

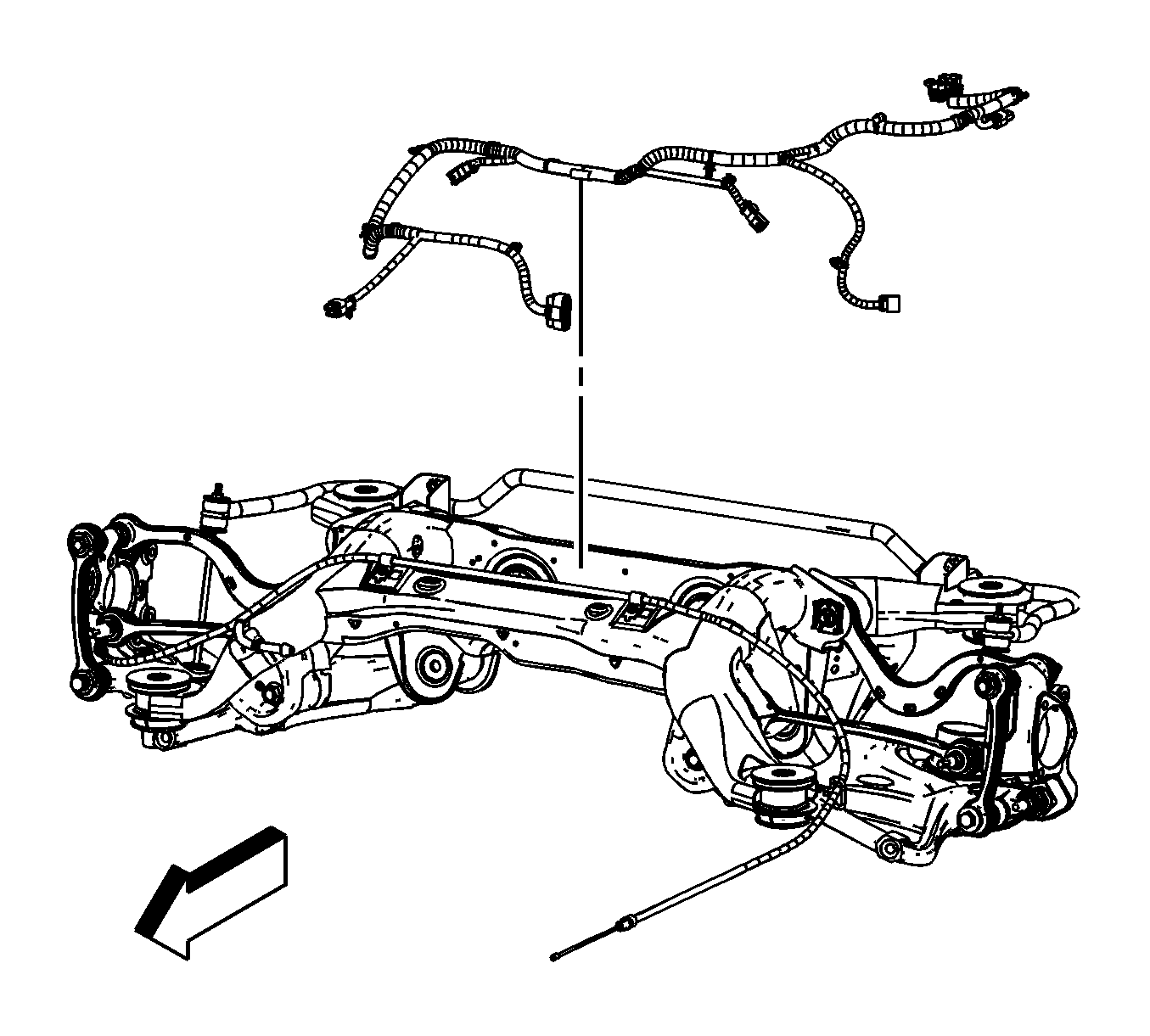

  6. Fig 3: Wire Harness
    GM1854051Courtesy of GENERAL MOTORS COMPANY
  7. Install the wire harness to the rear suspension crossmember.
  8. Attach the wire harness retainers to the rear suspension crossmember.

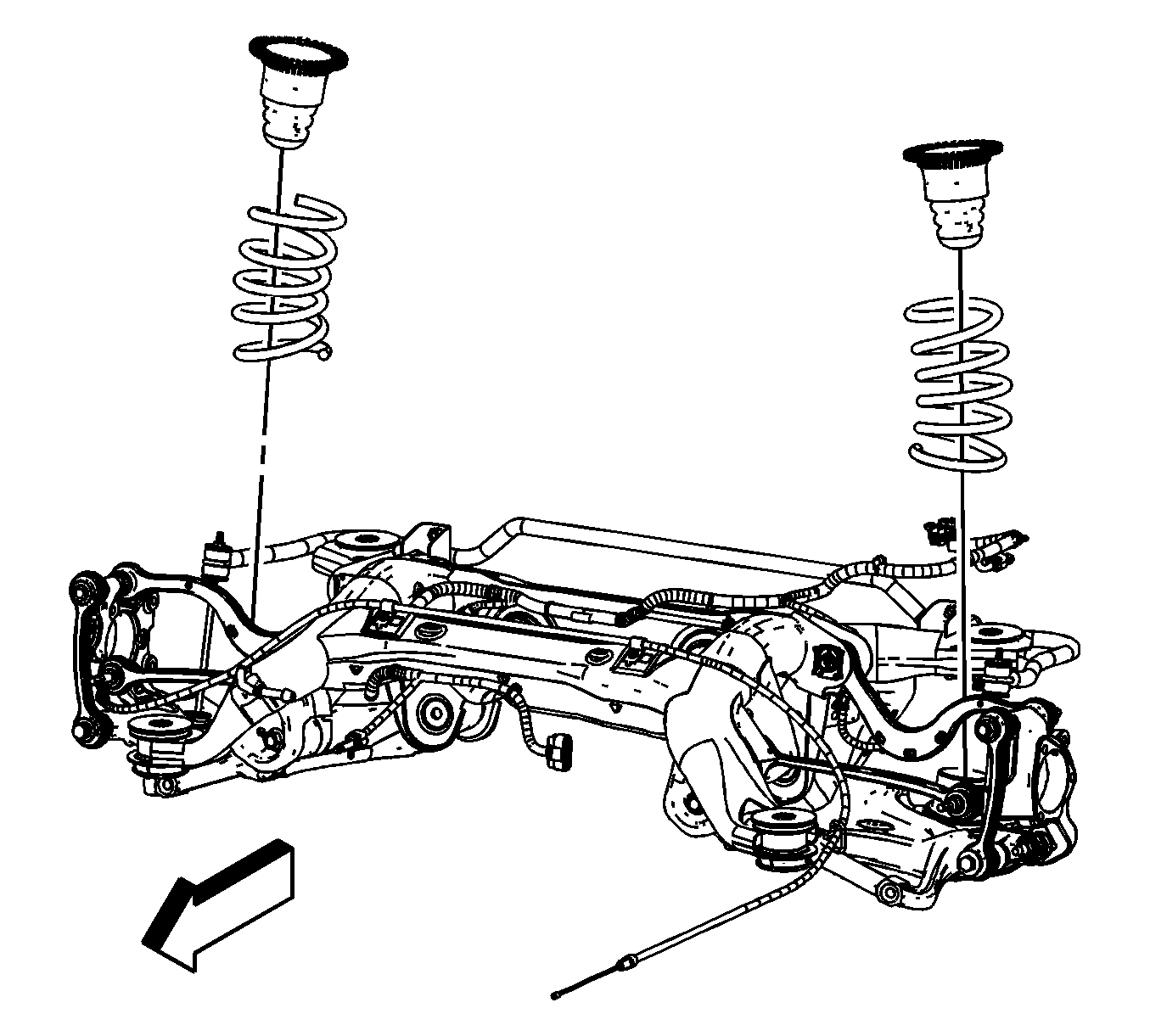

  9. Fig 4: Rear Jounce Bumpers And Springs
    GM1854049Courtesy of GENERAL MOTORS COMPANY
  10. Install the jounce bumpers and springs to the rear suspension crossmember. Refer to Rear Spring, Insulator, and Jounce Bumper Replacement for proper spring installation.

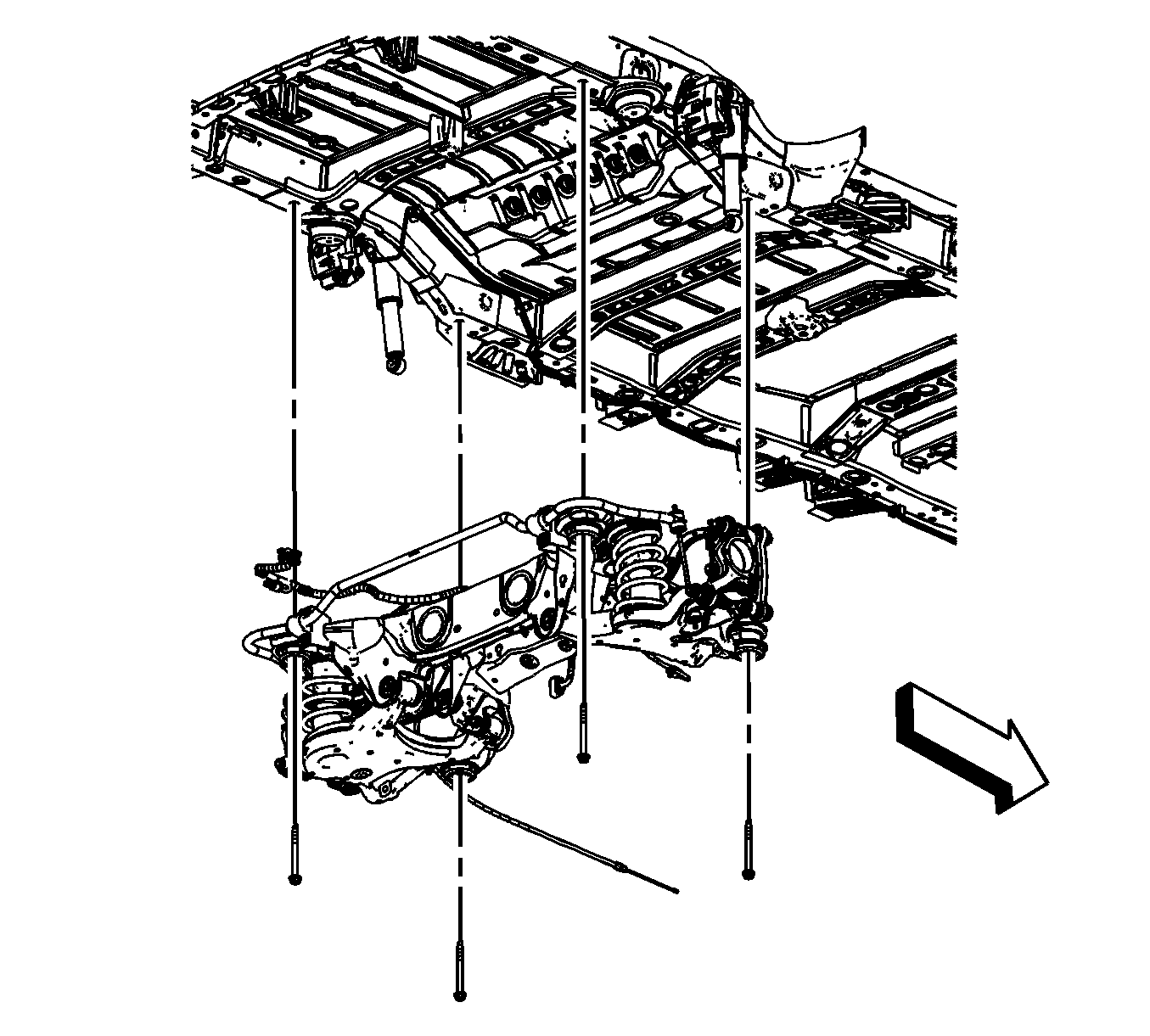

  11. Fig 5: Rear Suspension Crossmember And Bolts
    GM1854047Courtesy of GENERAL MOTORS COMPANY
  12. With the rear suspension crossmember mounted on a suitable stand and with the aid of an assistant, carefully lower the vehicle or raise the rear suspension crossmember into location on the vehicle.
  13. Install the four bolts securing the rear suspension crossmember to vehicle.

    Tighten

    Tighten the bolts to 160 N.m (118 lb ft).

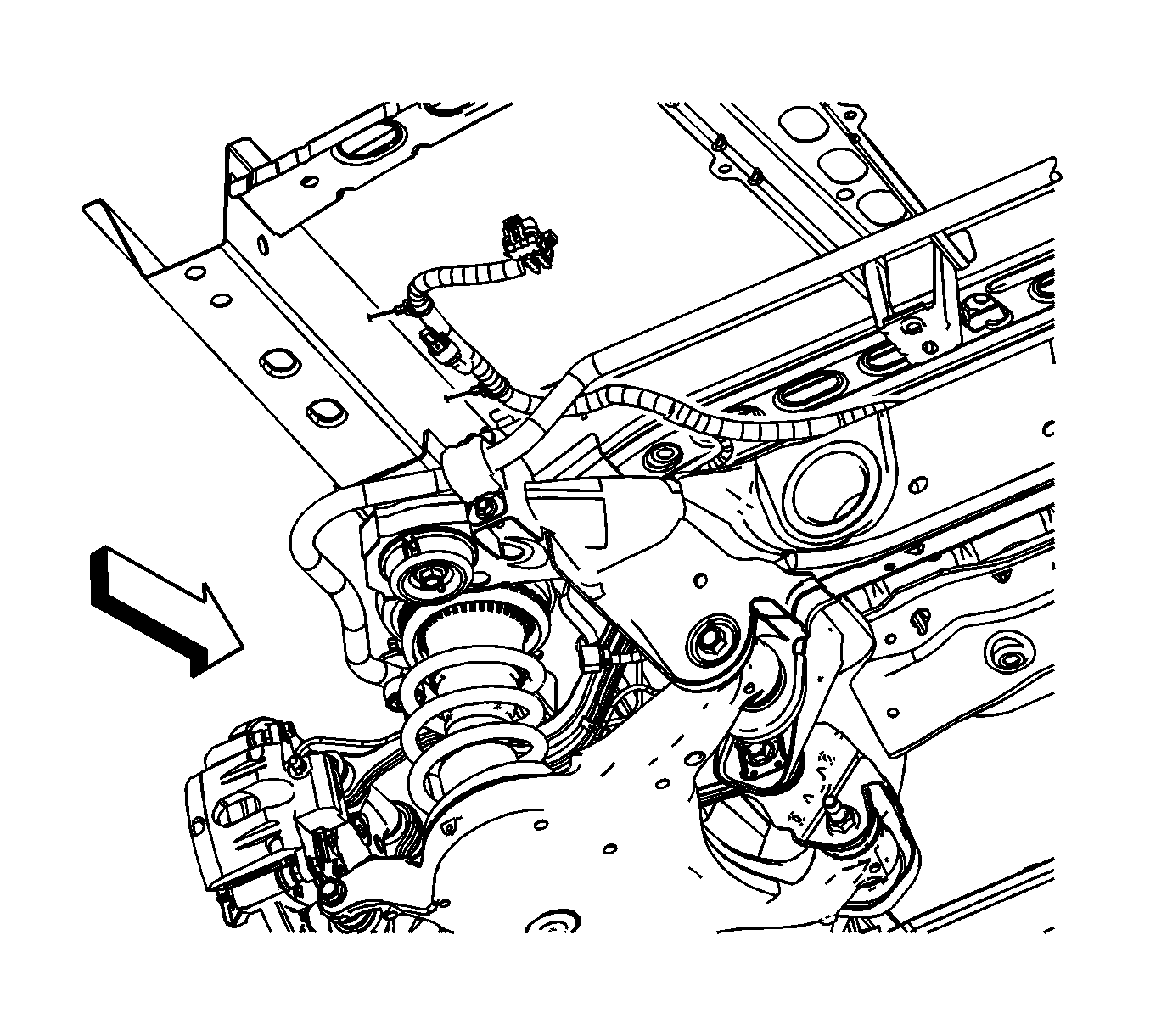

  14. Fig 6: Locating Rear Suspension Crossmember Wire Harness
    GM1854070Courtesy of GENERAL MOTORS COMPANY
  15. Connect the rear suspension crossmember wire harness to the vehicle body wire harness.
  16. Install the rear suspension crossmember wire harness retainers to the vehicle underbody.

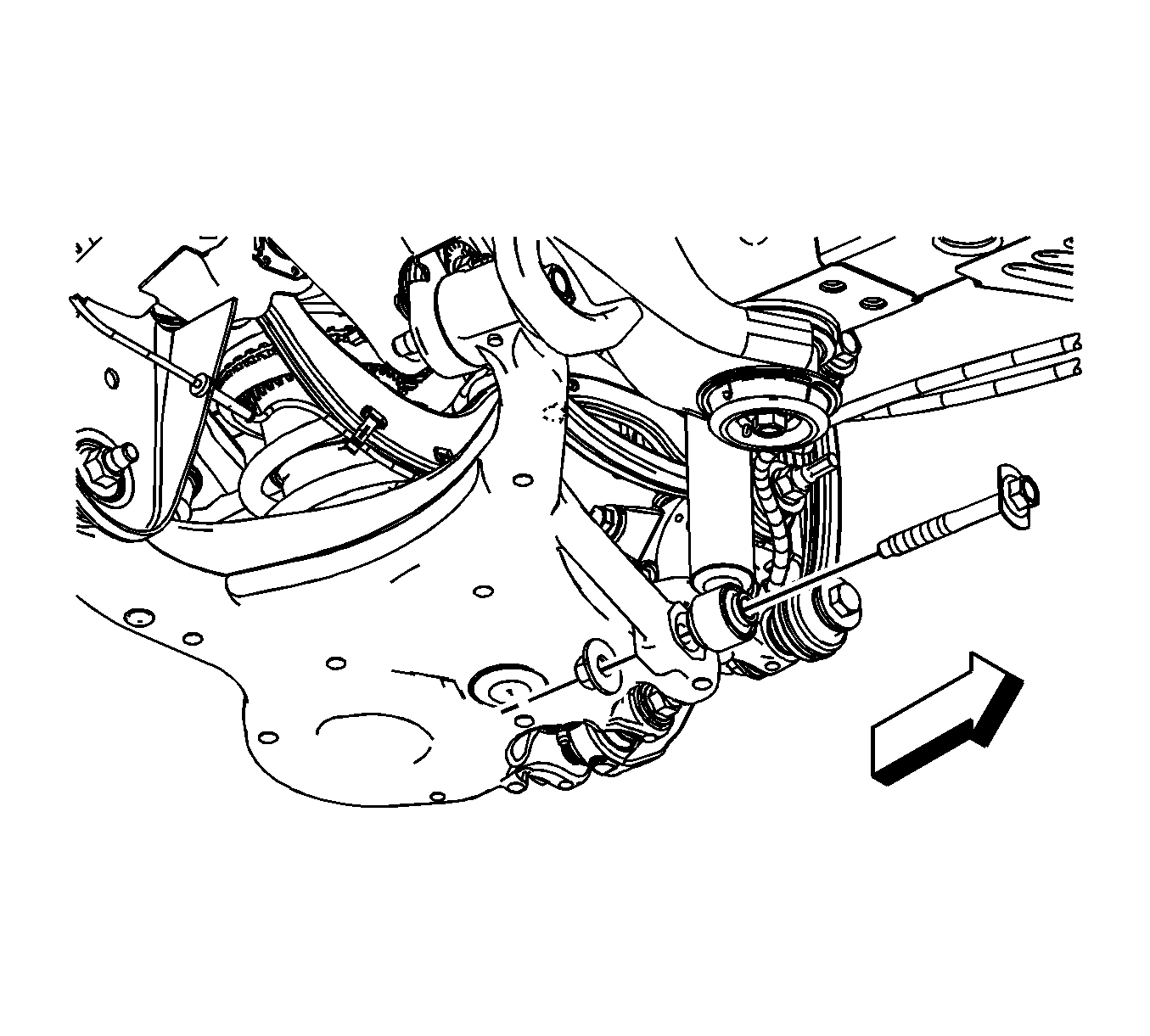

  17. Fig 7: Identifying Rear Shock Absorber Lower Bolts
    GM1854065Courtesy of GENERAL MOTORS COMPANY
  18. Install the lower bolts to the rear shock absorbers. Refer to Shock Absorber Replacement .

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

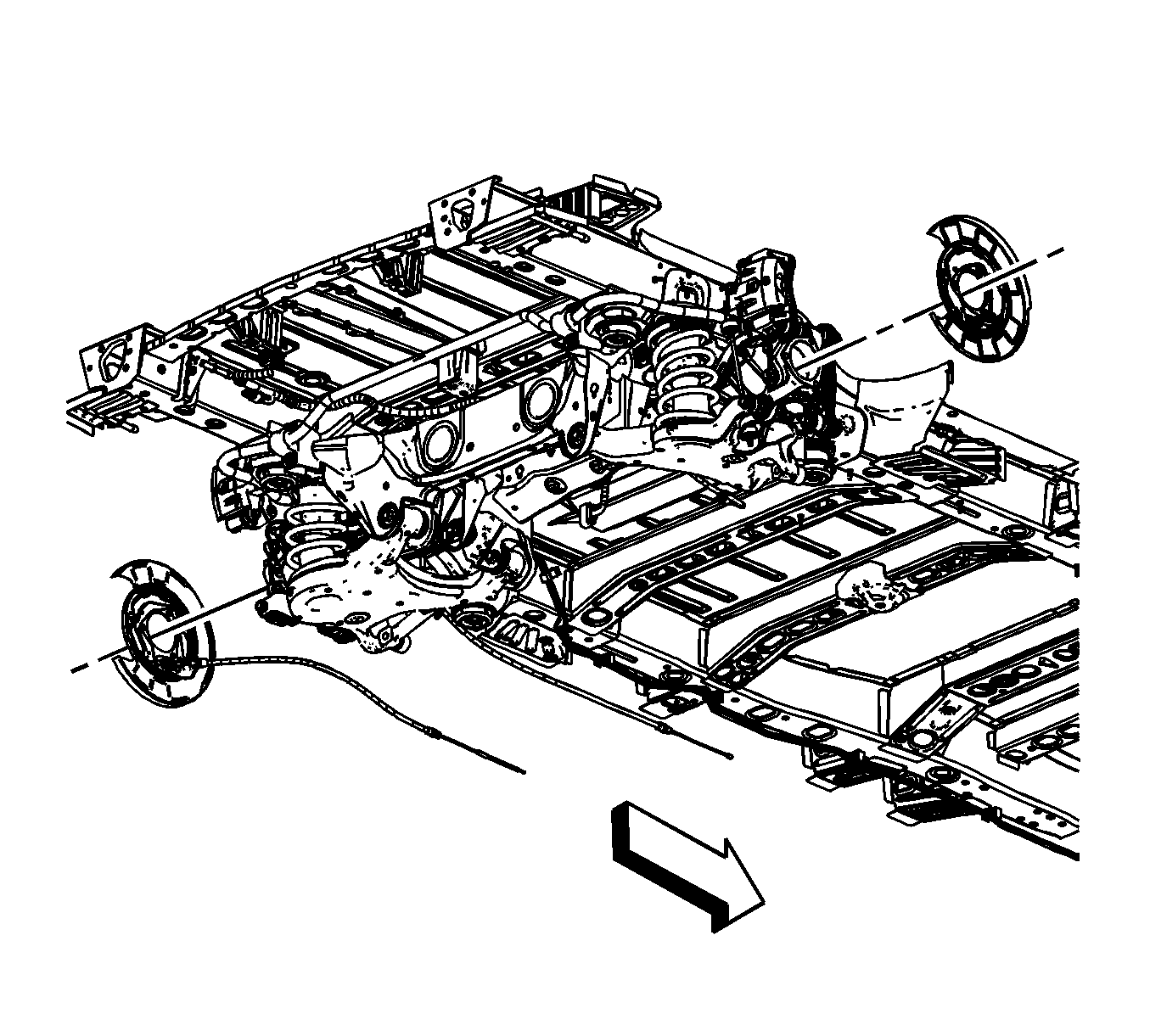

  19. Fig 8: Identifying Rear Brake Backing Plates
    GM1854046Courtesy of GENERAL MOTORS COMPANY
  20. Install both the rear brake backing plates.

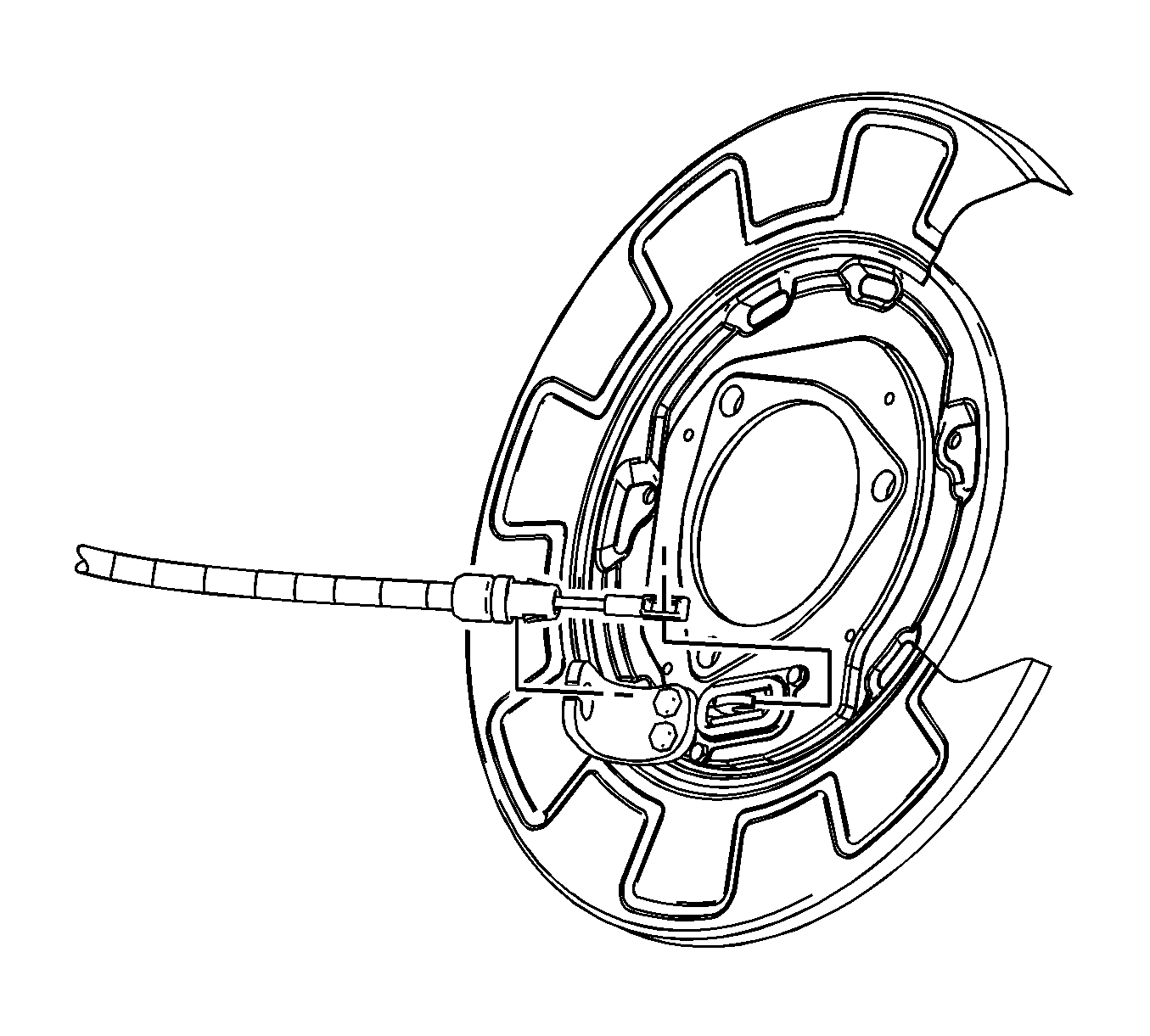

  21. Fig 9: View Of Right Park Brake Cable
    GM1854061Courtesy of GENERAL MOTORS COMPANY
  22. Connect the right park brake cable to the brake backing plate.

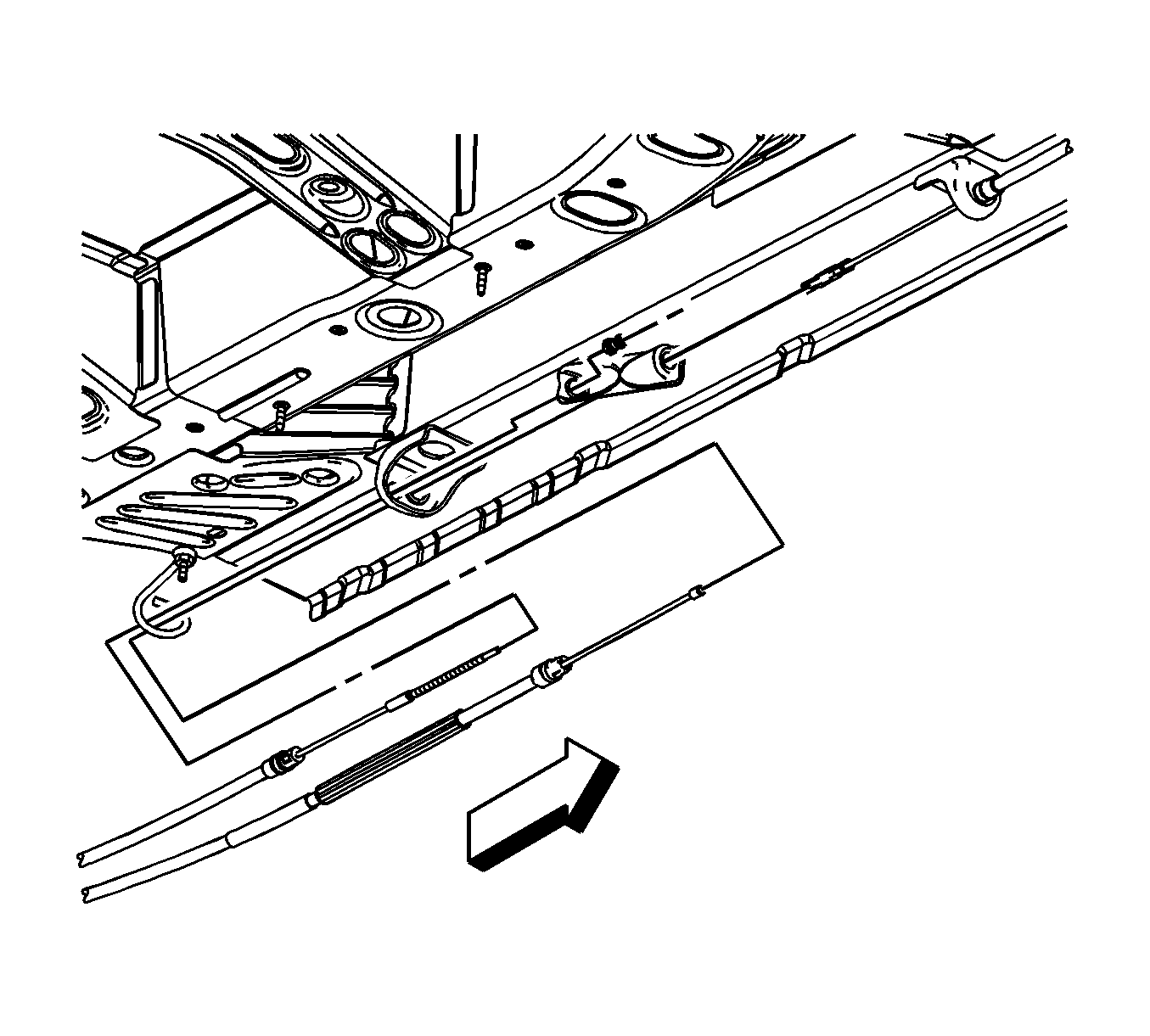

  23. Fig 10: View Of Park Brake Cables
    GM1854067Courtesy of GENERAL MOTORS COMPANY
  24. Install the park brake cables to the park brake cable equalizer and park brake cable bracket. Refer to Parking Brake Cable Equalizer Replacement .

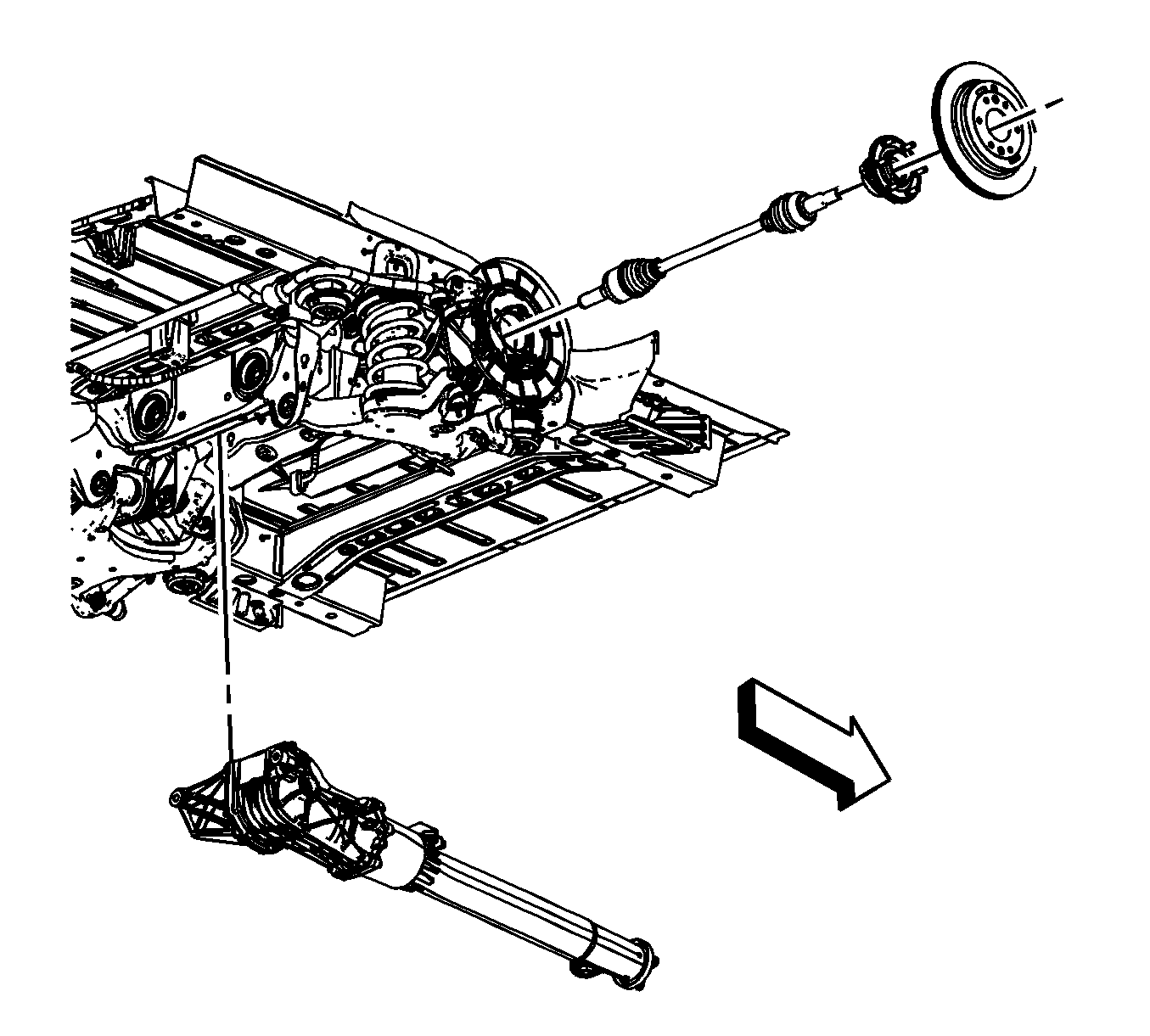

  25. Fig 11: Locating Rear Wheel Bearings, Axles & Differential Assembly
    GM1854045Courtesy of GENERAL MOTORS COMPANY
  26. Install the rear differential assembly, axles, and wheel bearings. Refer to Differential Replacement .

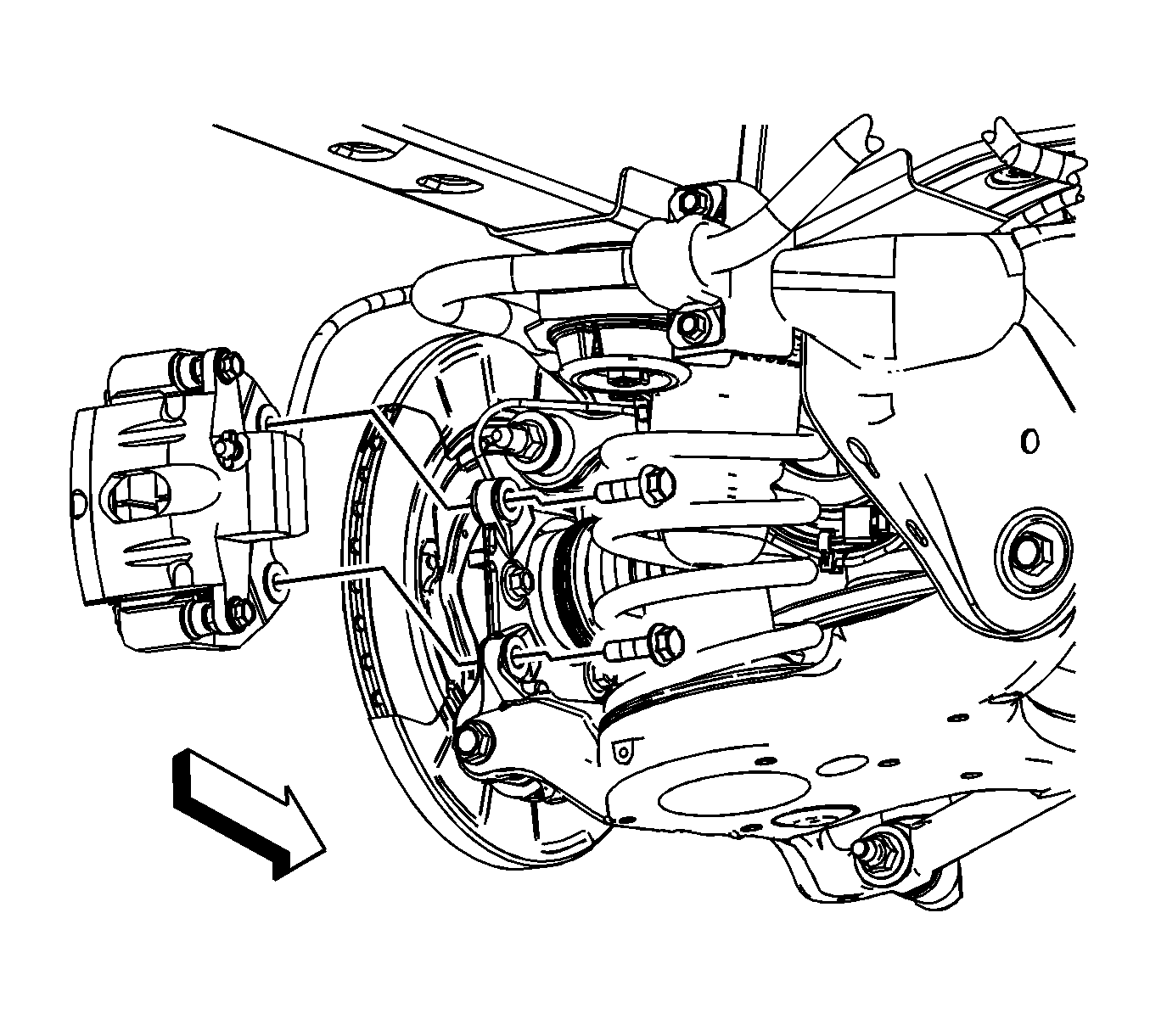

  27. Fig 12: Rear Brake Caliper And Bracket Assemblies
    GM1854043Courtesy of GENERAL MOTORS COMPANY
  28. Install the rear brake caliper and bracket assemblies to the rear knuckles.
  29. Install the rear brake caliper bracket bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

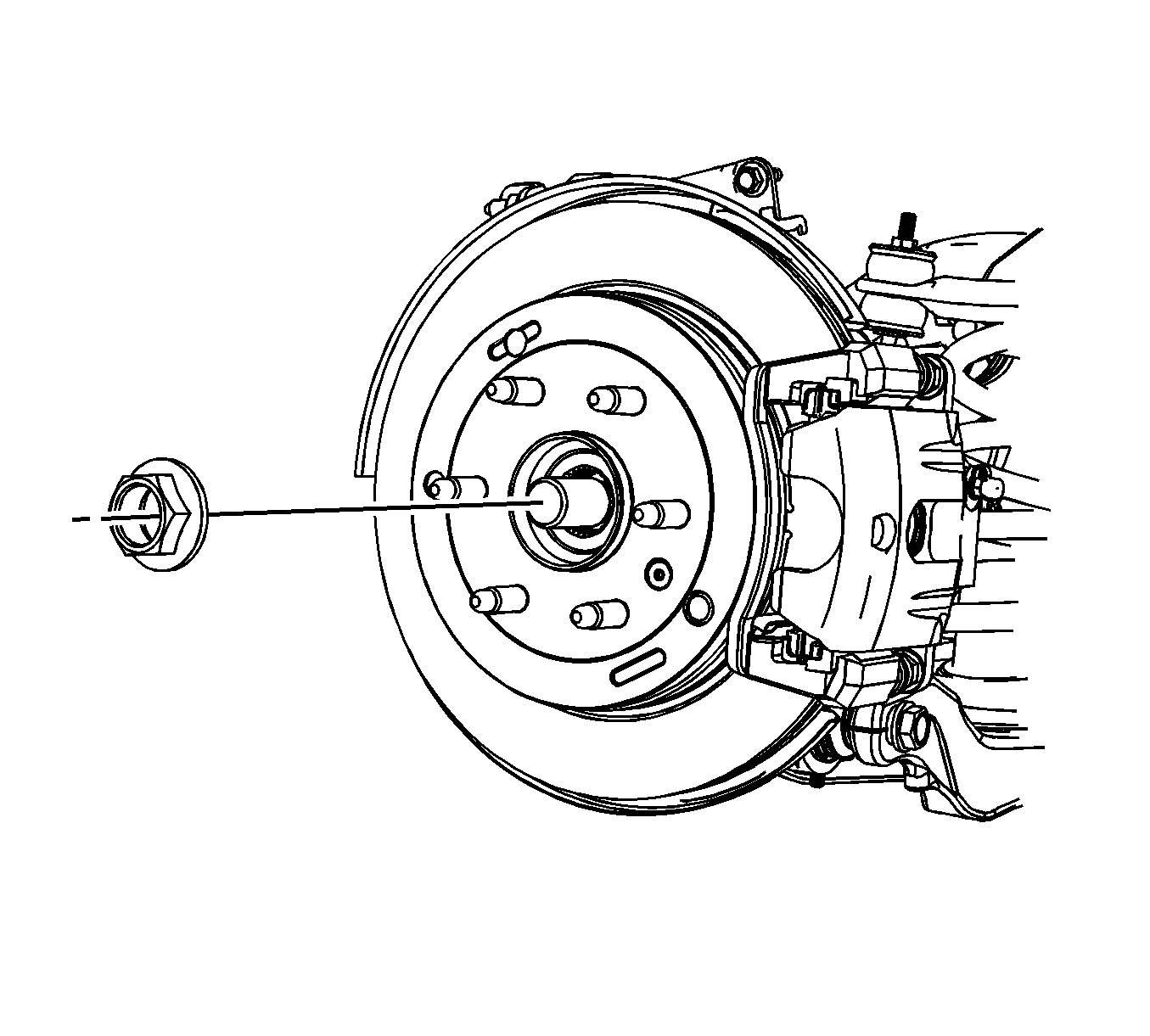

  30. Fig 13: Wheel Drive Shaft Nut
    GM1848075Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    DO NOT re-use the wheel drive shaft nut, discard and use NEW.

  31. Install the wheel drive shaft nut.

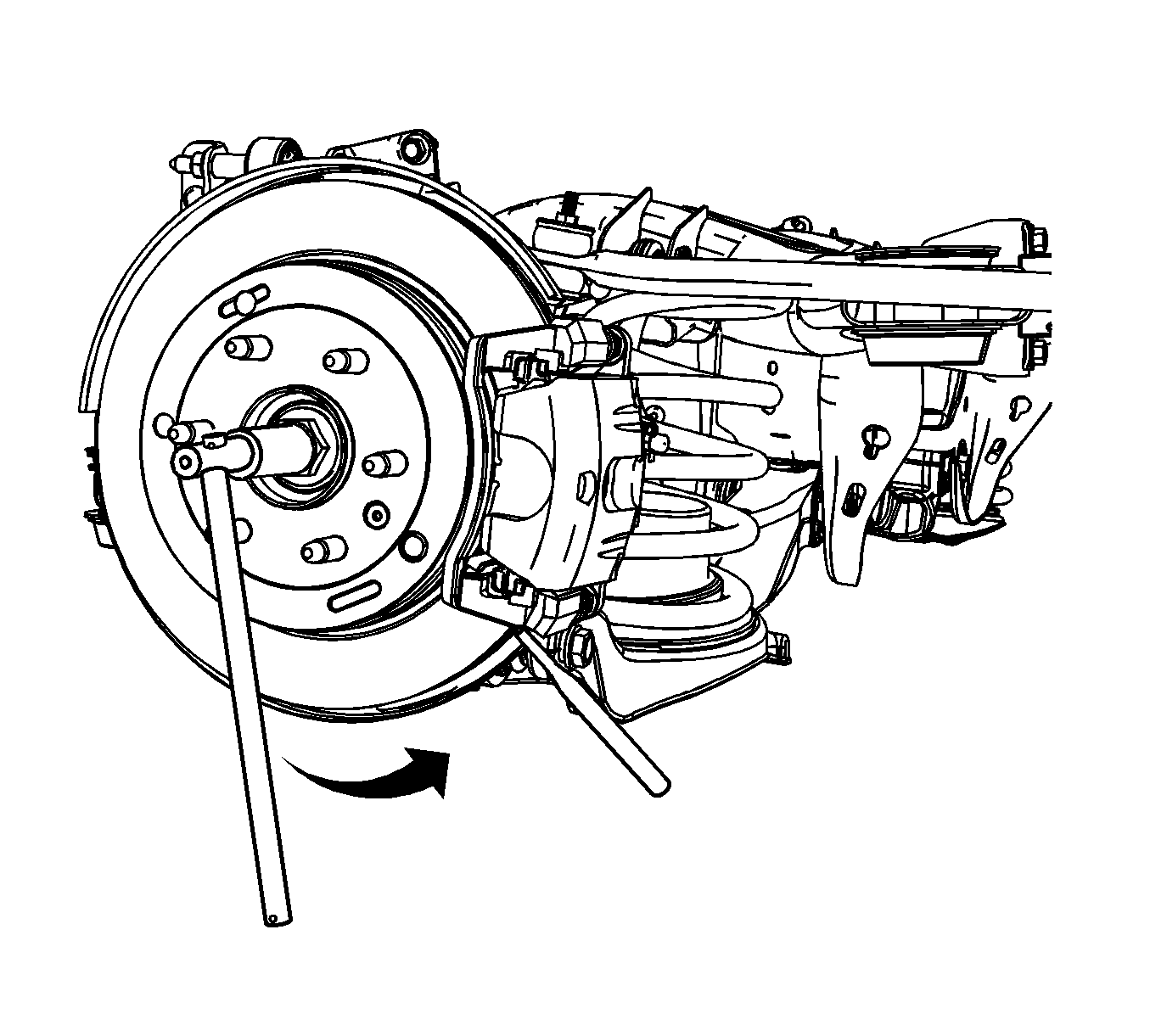

  32. Fig 14: Wheel Drive Shaft Nut
    GM1848083Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The following step is to ensure that the wheel drive shaft assembly does not rotate while the nut is being installed.

  33. Insert a brass drift or punch in the brake rotor so that the brass drift or punch rest against the brake caliper mounting bracket.
  34. Using a torque wrench and socket, tighten the new wheel drive shaft nut.

    Tighten

    Tighten the nut to 205 N.m (151 lb ft).

  35. Install the muffler. Refer to Exhaust Muffler Replacement (NB5)Exhaust Muffler Replacement (NEA/NED or N10) .
  36. Install the rear tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation .
  37. Lower the vehicle.
