Stabilizer Shaft Insulator Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

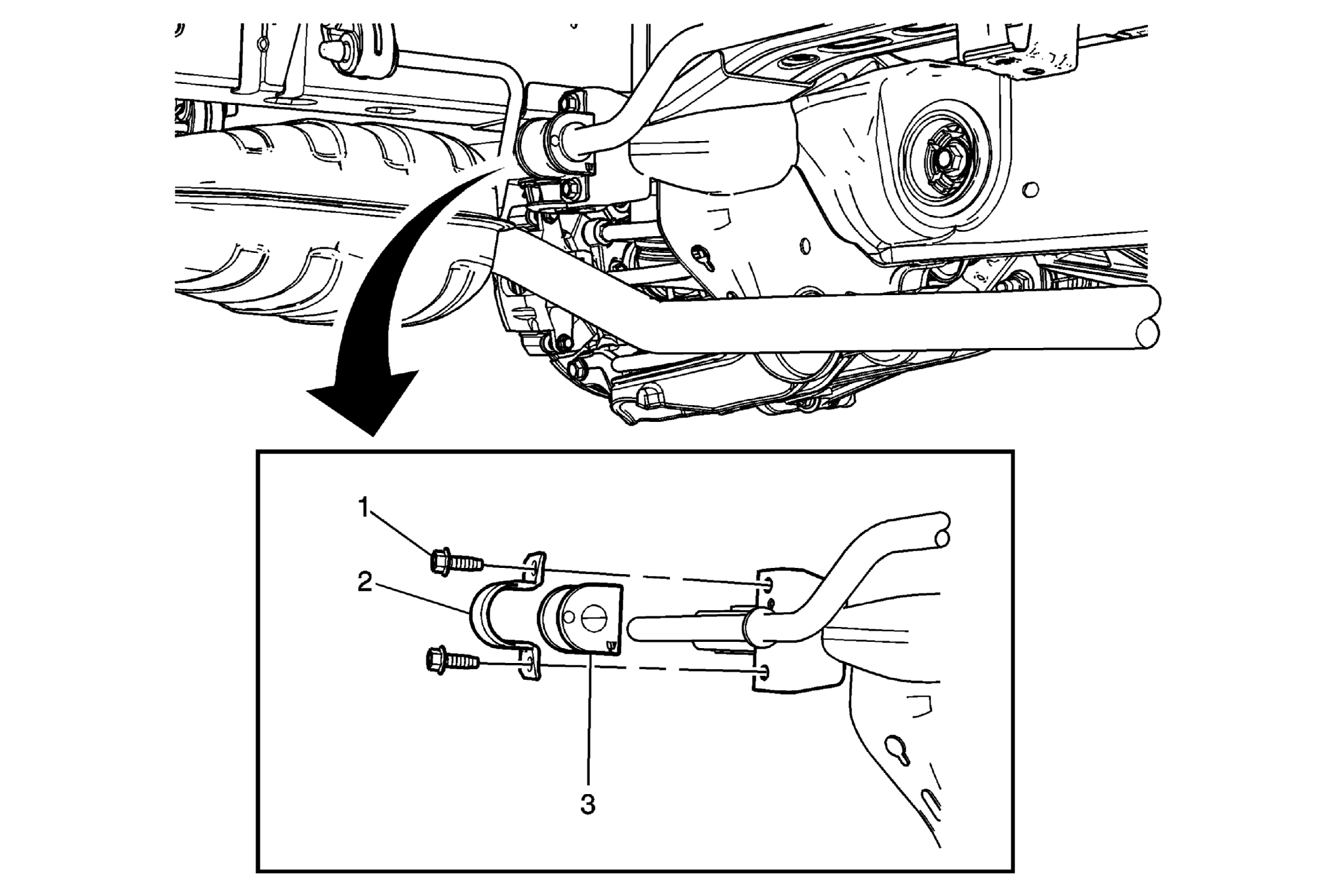

| Callout | Component Name |
|---|---|
|
NOTE:
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.The following service procedure indicates the left side of the vehicle. The right side of the vehicle is similar. |
|
| 1 | Stabilizer Shaft Clamp Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 50 N.m (37 lb ft) |
| 2 | Stabilizer Shaft Clamp |
| 3 | Stabilizer Shaft Insulator |
