Drivetrain and Front Suspension Frame Reinforcement Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

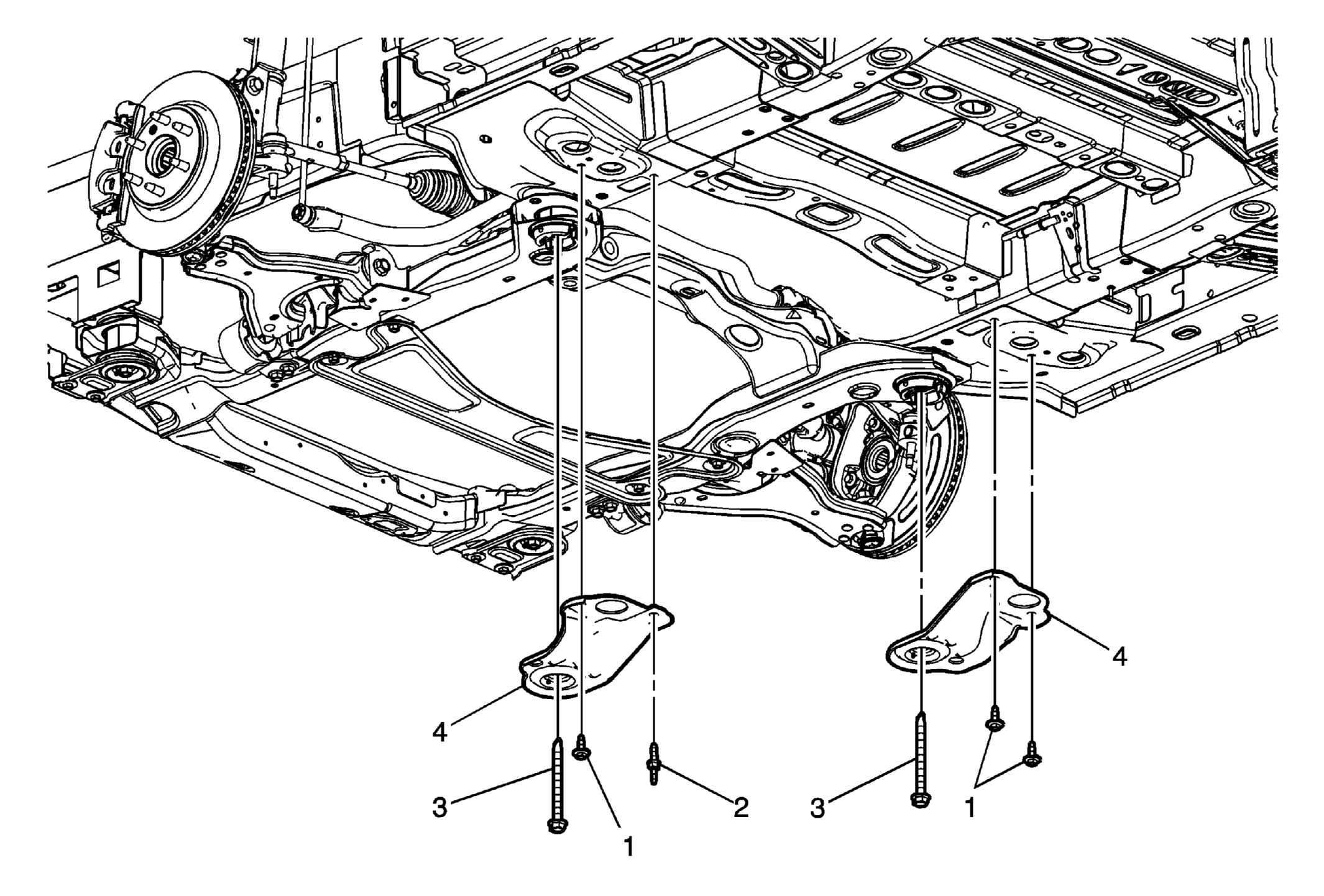

Fig 1: View Of Drivetrain And Front Suspension Frame Reinforcement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the underbody rear side rail. Refer to Underbody Rear Side Rail Replacement . Support the frame with a jack stand.
1	Frame Reinforcement Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 60 N.m (44 lb ft)
2	Frame Reinforcement Stud Tighten 60 N.m (44 lb ft)
3	Frame Bolt (Qty: 2) Procedure Install frame bolts. Tighten 110 N.m (81 lb ft) plus 90 degrees
4	Frame Reinforcement (Qty: 2)
