Underbody Rear Side Rail Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

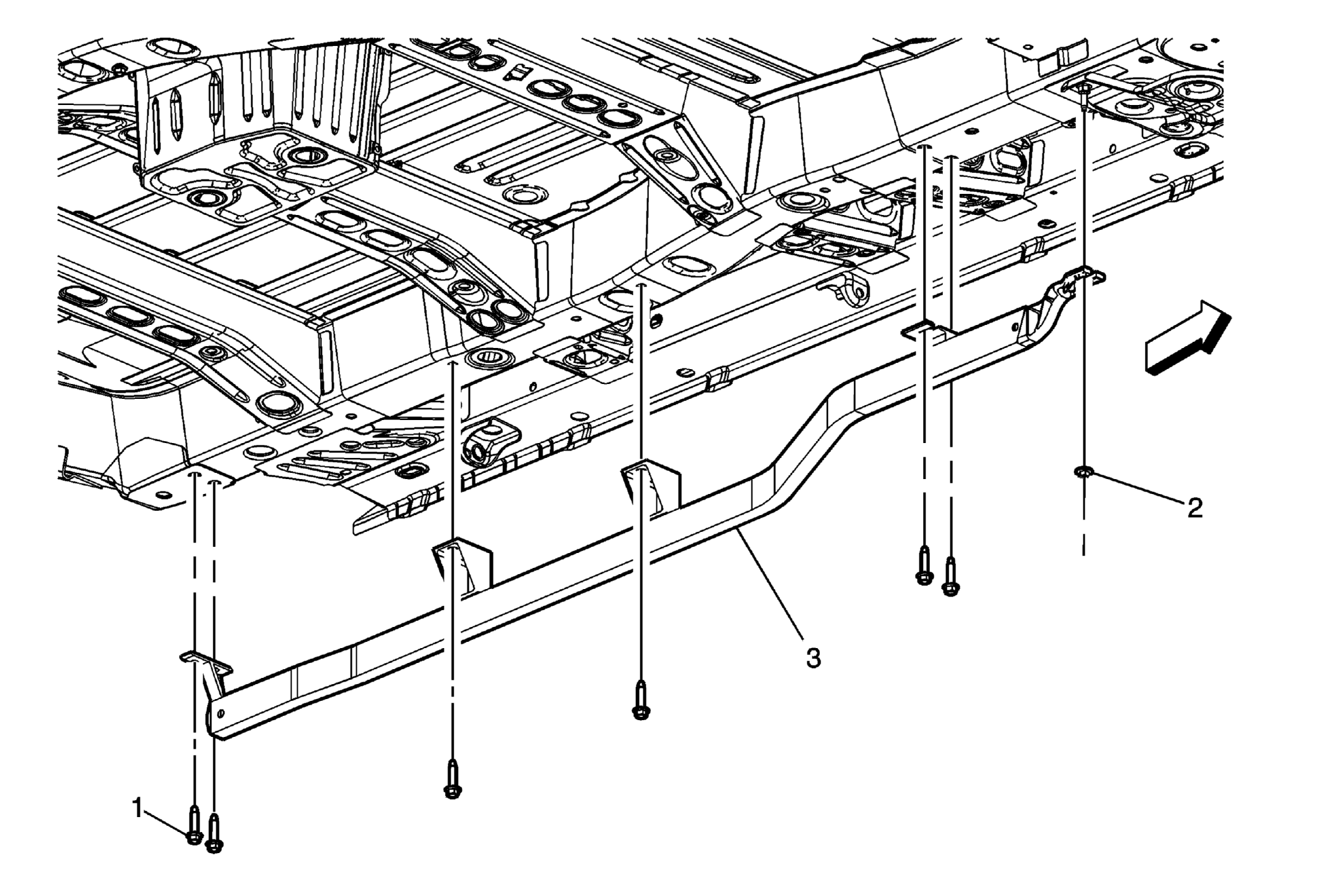

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Underbody Rear Side Rail Bolt (Qty: 6)
CAUTION:
Refer to Fastener Caution . Tighten 47 N.m (35 lb ft) |
| 2 | Underbody Rear Side Rail Nut Tighten 11 N.m (97 lb in) |
| 3 | Underbody Rear Side Rail |
