Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement (Enclave) Rear Side Door Trim Panel Replacement (Acadia or Traverse) .

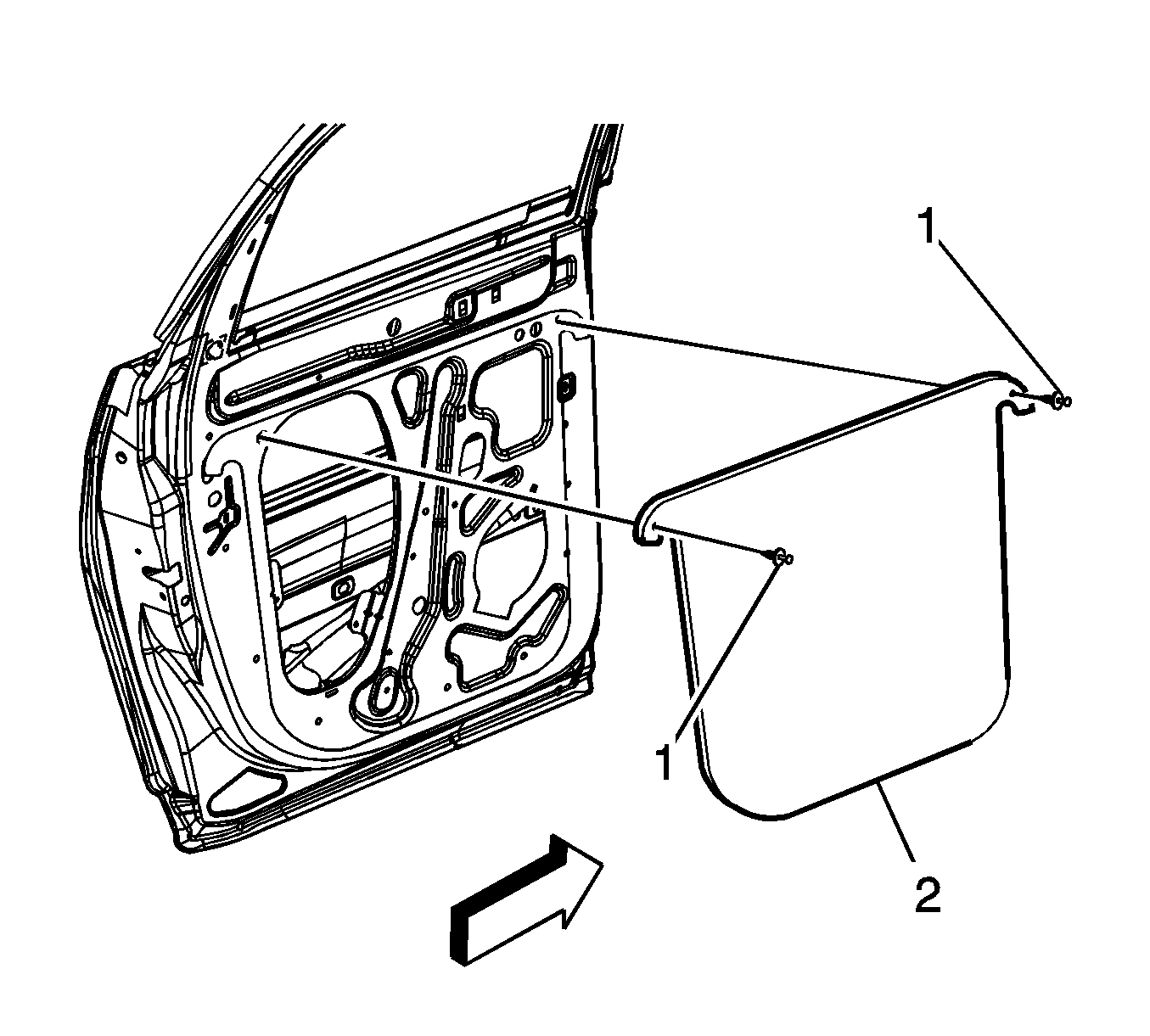

    3. Fig 1: Rear Side Door Water Deflector And Retainers
    GM1844093Courtesy of GENERAL MOTORS COMPANY
  3. Remove the retainer (1).
  4. Carefully remove the water deflector from the door by releasing the adhesive backing.
