Rear Seat Support Replacement (60%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

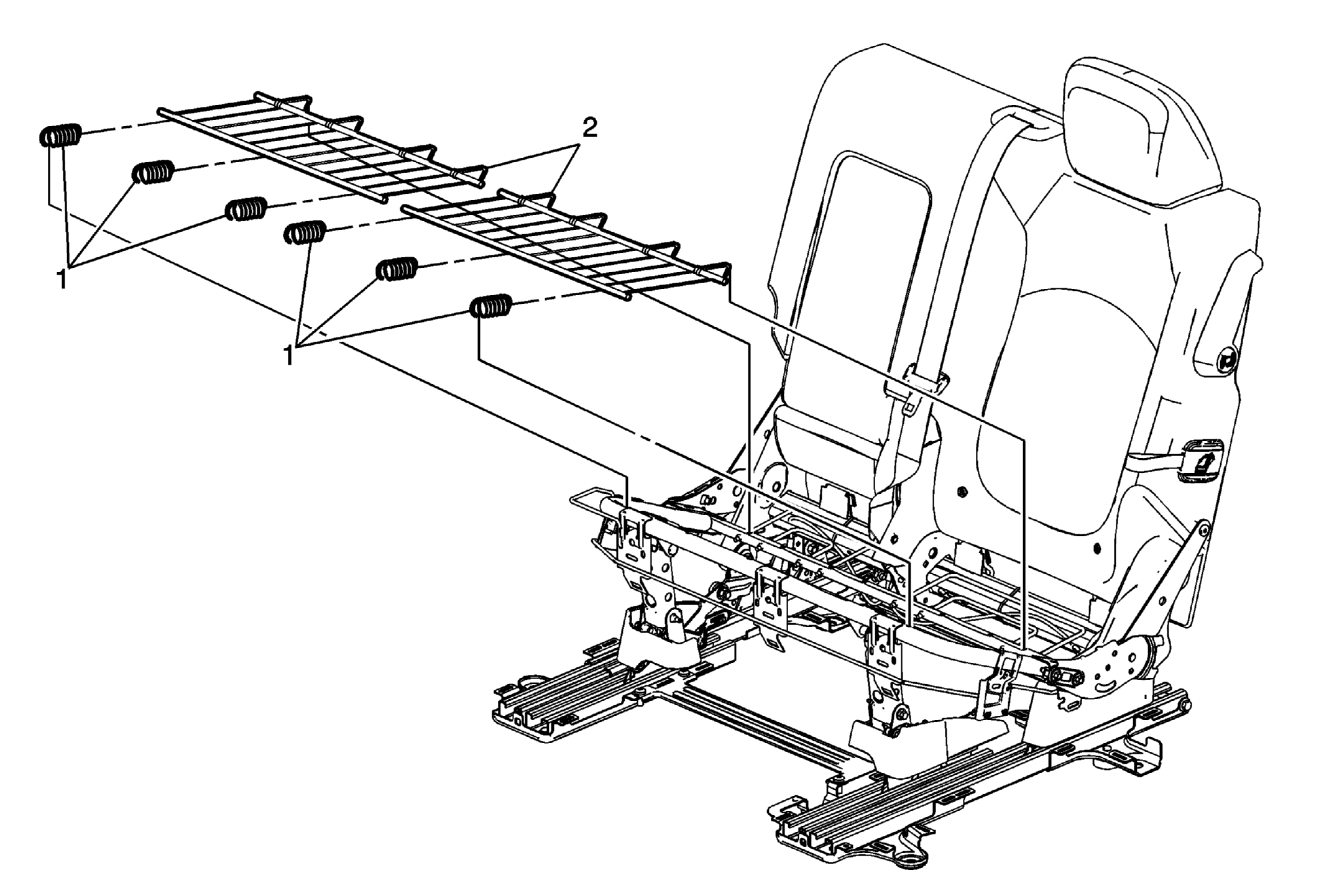

Fig 1: Rear Seat Support (With 60 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Removal and Installation (60%) . Remove the seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (60%) .
1	Rear Seat Cushion Spring (Qty: 6)
2	Rear Seat Support Assembly (Qty: 2)

Callout

Component Name

Preliminary Procedures

Remove the rear seat. Refer to Rear Seat Removal and Installation (60%) .
Remove the seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (60%) .

Rear Seat Cushion Spring (Qty: 6)

Rear Seat Support Assembly (Qty: 2)
