Rear Seat Track Front Inboard Cover, Front Outboard Cover, Rear Inboard Cover, and Rear Outboard Cover Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

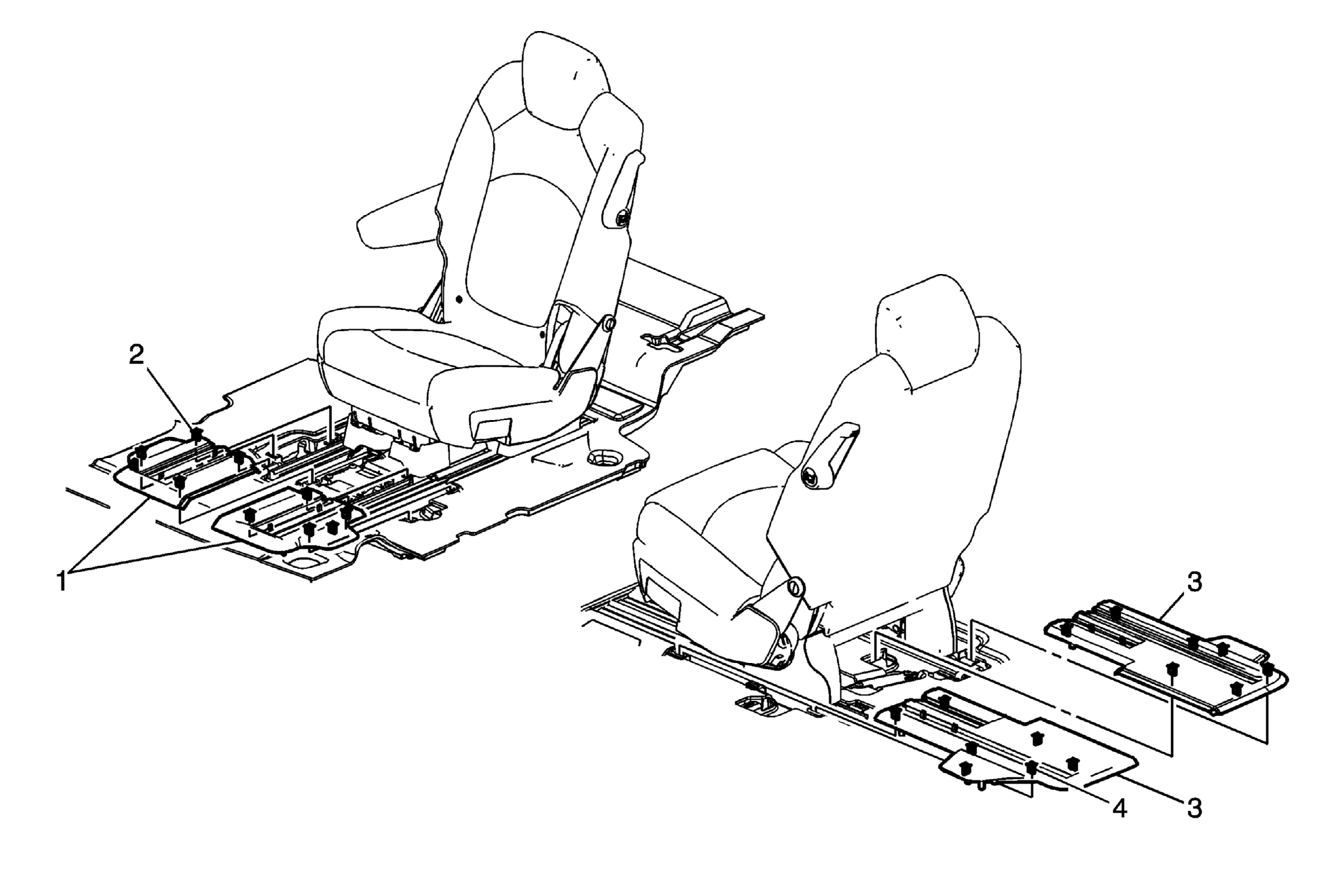

Fig 1: Rear Seat Track Front Inboard Cover, Front Outboard Cover, Rear Inboard Cover And Rear Outboard Cover
GM1851827Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Track Front Cover (Qty: 2)

Procedure

  1. Move the seat forward to the Smart Slide® E-Z entry position.
  2. Use a trim tool or equivalent to aid in the removal of the seat track covers.
2 Rear Seat Track Cover Retainer Clip (Qty: 14)
3 Rear Seat Track Rear Cover (Qty: 2)

Procedure

  1. Move the seat to the full rear position.
  2. Use a trim tool or equivalent to aid in the removal of the seat track covers.
4 Rear Seat Track Cover Retainer Clip (Qty: 18)
