Rear Seat Head Restraint Bracket Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

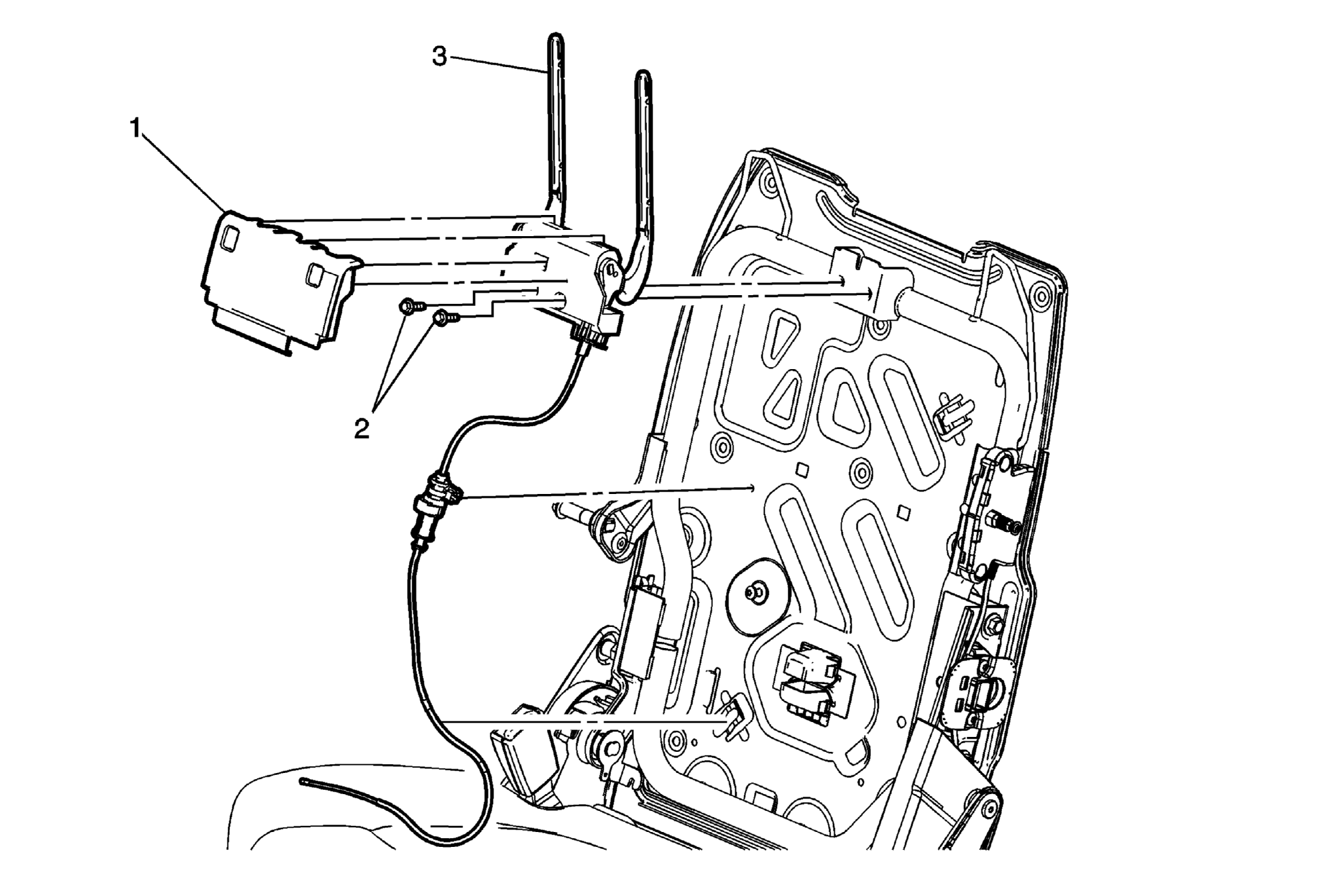

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40% with Armrest) Rear Seat Back Cushion Cover and Pad Replacement (40% without Armrest) Rear Seat Back Cushion Cover and Pad Replacement (60%) . |
|
| 1 | Rear Seat Head Restraint Bracket Cover |
| 2 | Rear Seat Head Restraint Bracket Bolt (Qty 2)
CAUTION:
Refer to Fastener Caution . Tighten 15 N.m (11 lb ft) |
| 3 | Rear Seat Head Restraint Bracket Procedure Disconnect the cables from the seat back frame. |
