Rear Seat Back Cushion Panel Replacement (40%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

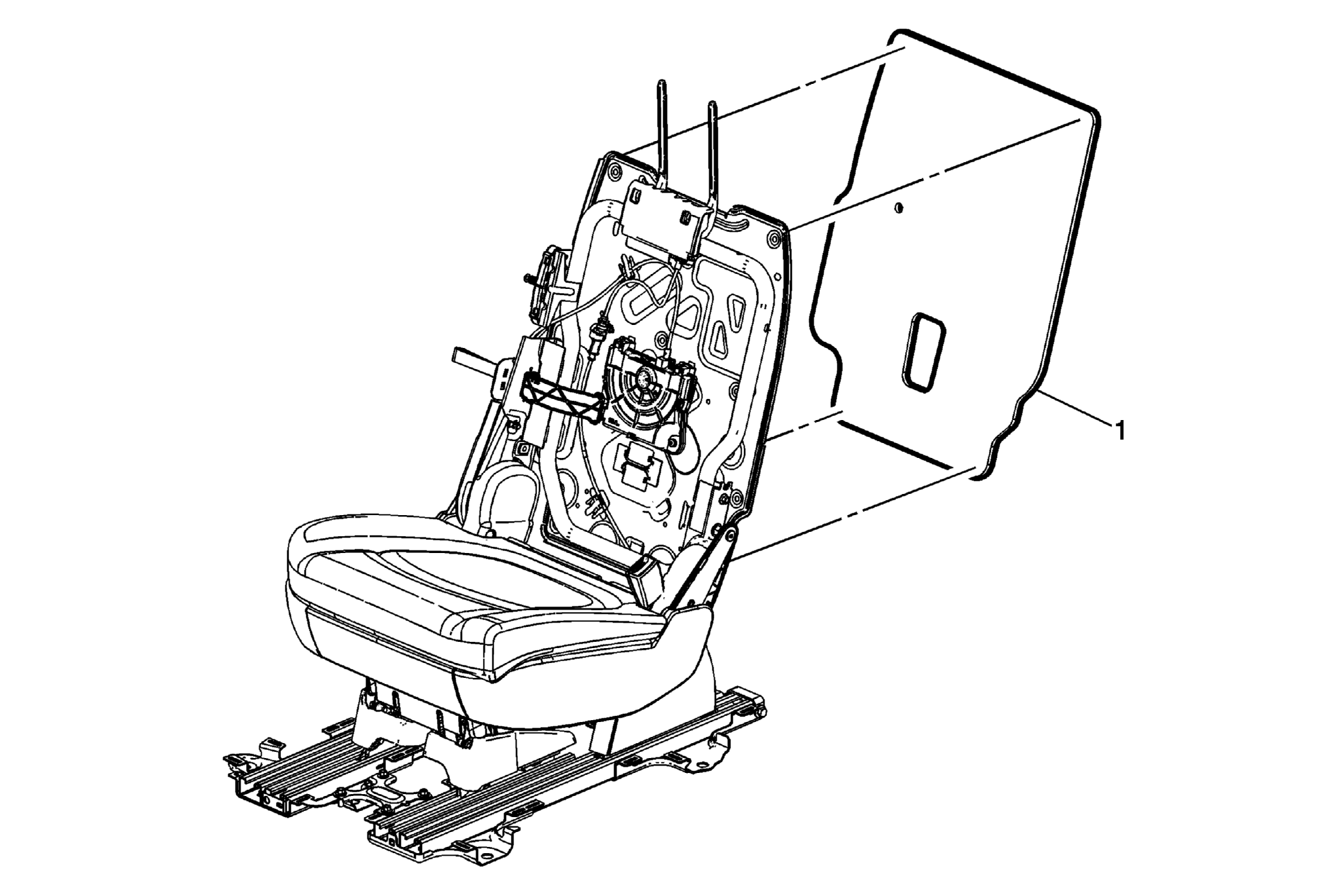

Fig 1: Rear Seat Back Cushion Panel (With 40% Seat)
GM2915610Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40% with Armrest) Rear Seat Back Cushion Cover and Pad Replacement (40% without Armrest) .
1 Rear Seat Back Cushion Panel
NOTE:

Squeeze the retainers from the front side of the seat back and push rearward to disengage from the seat back frame.
