Rear Seat Armrest Replacement (60%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

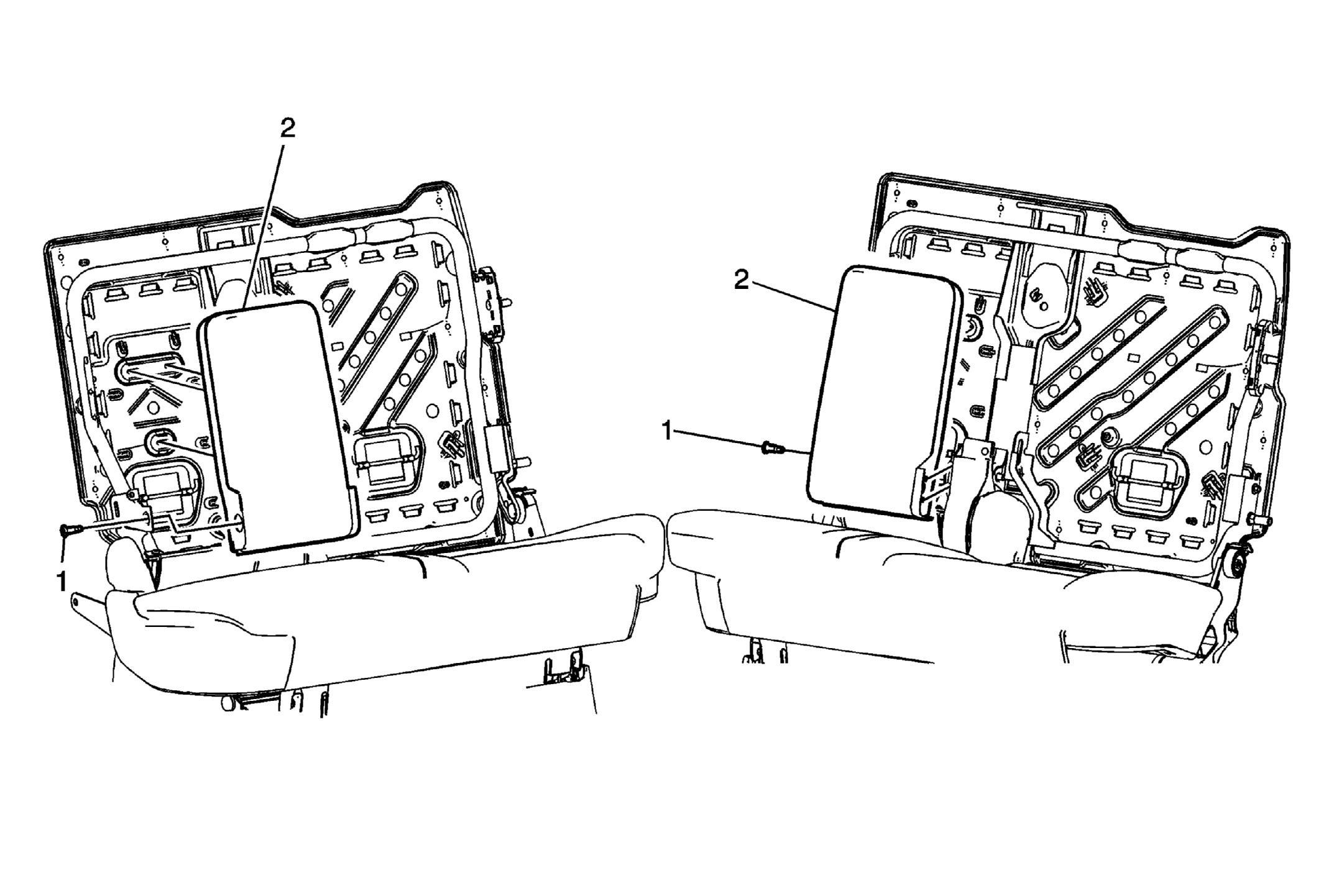

Fig 1: Rear Seat Armrest (With 60 Percent Seat)
GM1853394Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the rear seat back cushion outer cover. Refer to Rear Seat Back Cover Replacement (60%) .
1 Rear Seat Armrest Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Rear Seat Armrest
