Rear Seat Back Cover Replacement (60%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

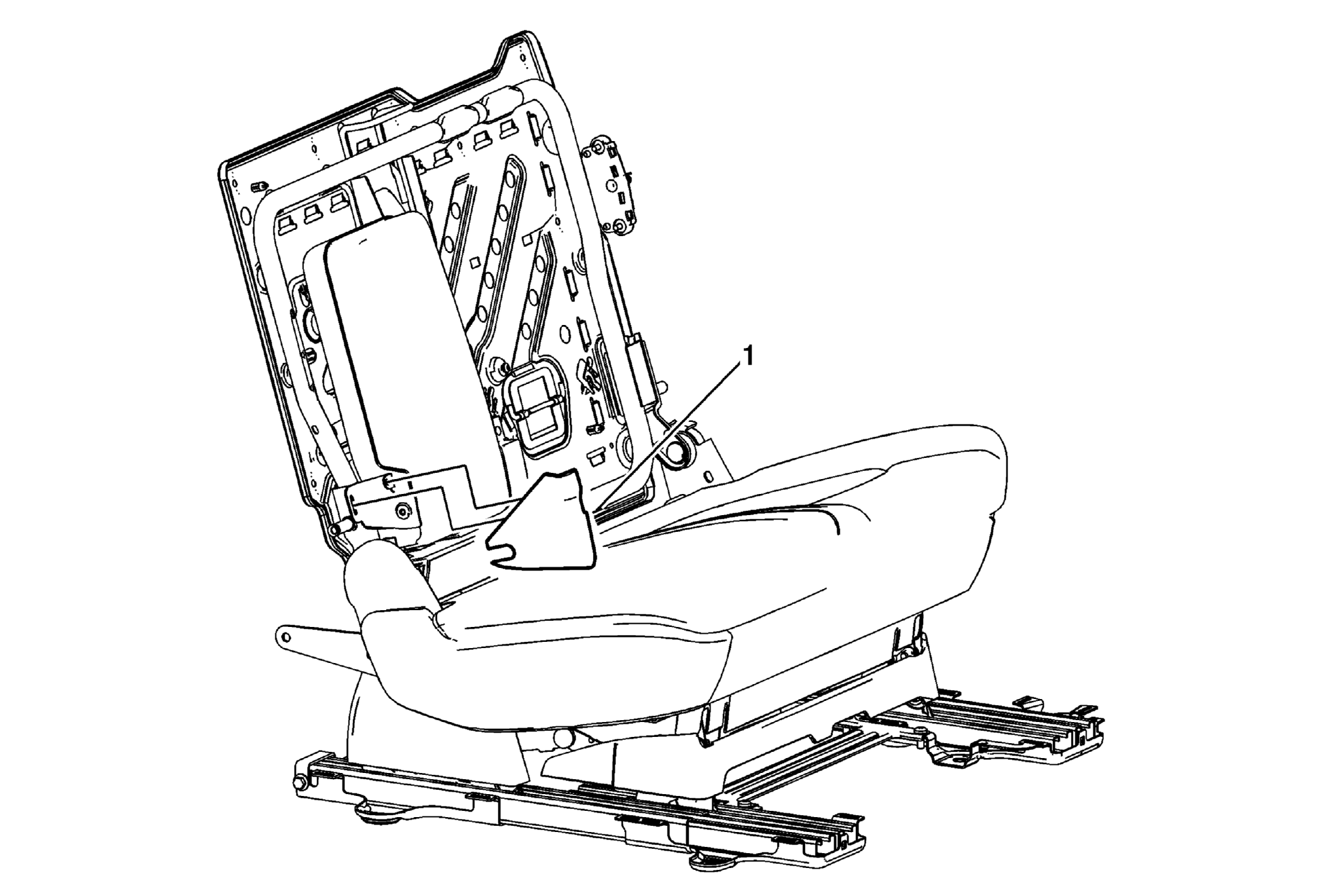

Fig 1: Rear Seat Back Cover (With 60 Percent Seat)
GM1853396Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Back Cushion Outer Cover

Procedure

  1. Unzip the rear seat back cover.
  2. Remove the clip to disengage the retainers to remove.
