Rear Seat Adjuster Handle Replacement (60%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

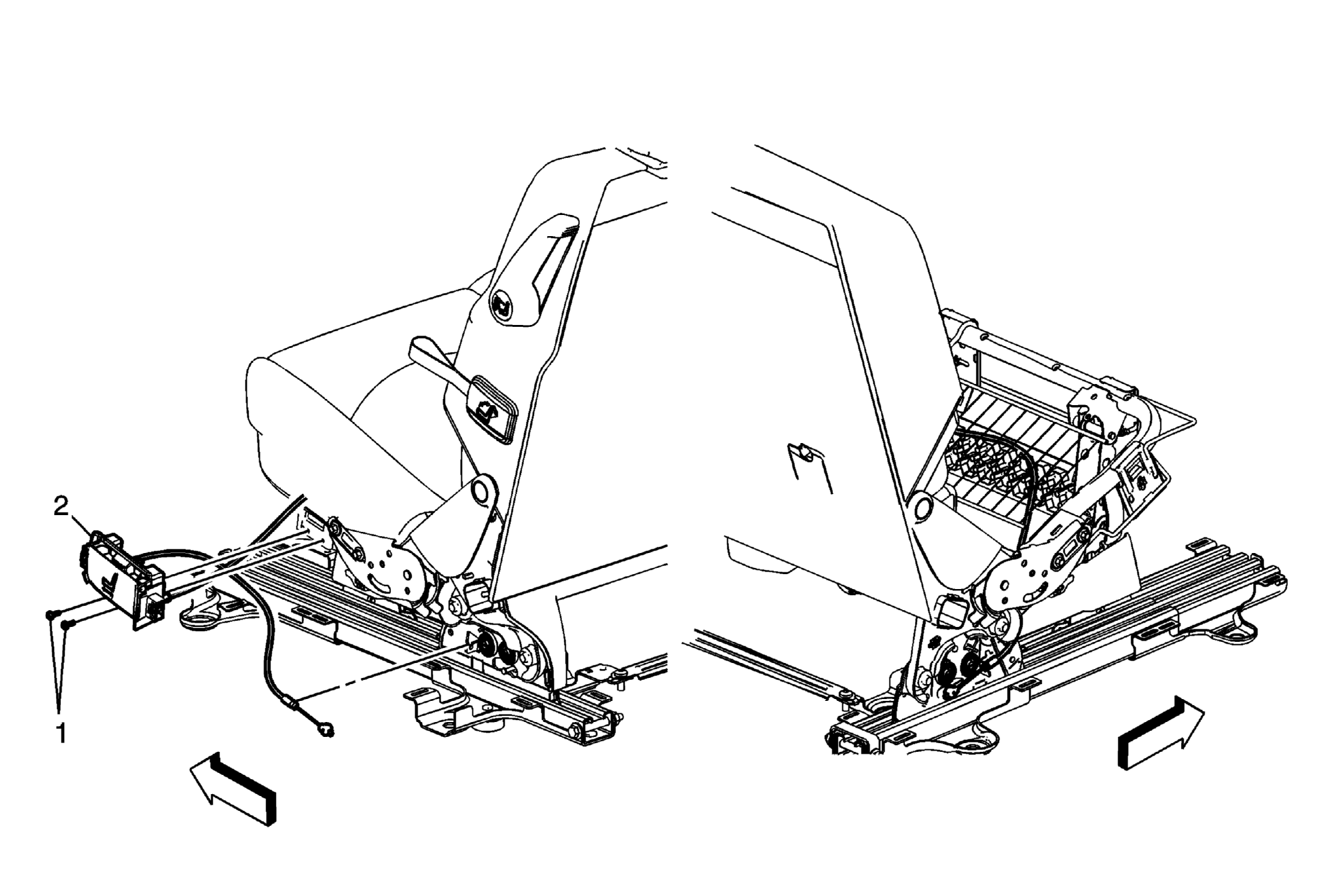

Fig 1: Rear Seat Adjuster Handle (With 60 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Removal and Installation (60%) . Remove the outer rear seat cushion trim panel assembly. Refer to Rear Seat Cushion Trim Panel Assembly Replacement - Outboard (60%) , or Rear Seat Cushion Trim Panel Assembly Replacement - Inboard (60%) . Remove the rear seat recliner outer finish covers. Refer to Rear Seat Recliner Outer Finish Cover Replacement - Outboard (60%) .
1	Rear Seat Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Rear Seat Adjuster Handle Assembly Procedure Disconnect the cables at the inboard and outboard recliners.

Callout

Component Name

Preliminary Procedures

Remove the rear seat. Refer to Rear Seat Removal and Installation (60%) .
Remove the outer rear seat cushion trim panel assembly. Refer to Rear Seat Cushion Trim Panel Assembly Replacement - Outboard (60%) , or Rear Seat Cushion Trim Panel Assembly Replacement - Inboard (60%) .
Remove the rear seat recliner outer finish covers. Refer to Rear Seat Recliner Outer Finish Cover Replacement - Outboard (60%) .

Rear Seat Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
4 N.m (35 lb in)

Rear Seat Adjuster Handle Assembly
Procedure
Disconnect the cables at the inboard and outboard recliners.
