Rear Seat Recliner Outer Finish Cover Replacement - Outboard (60%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

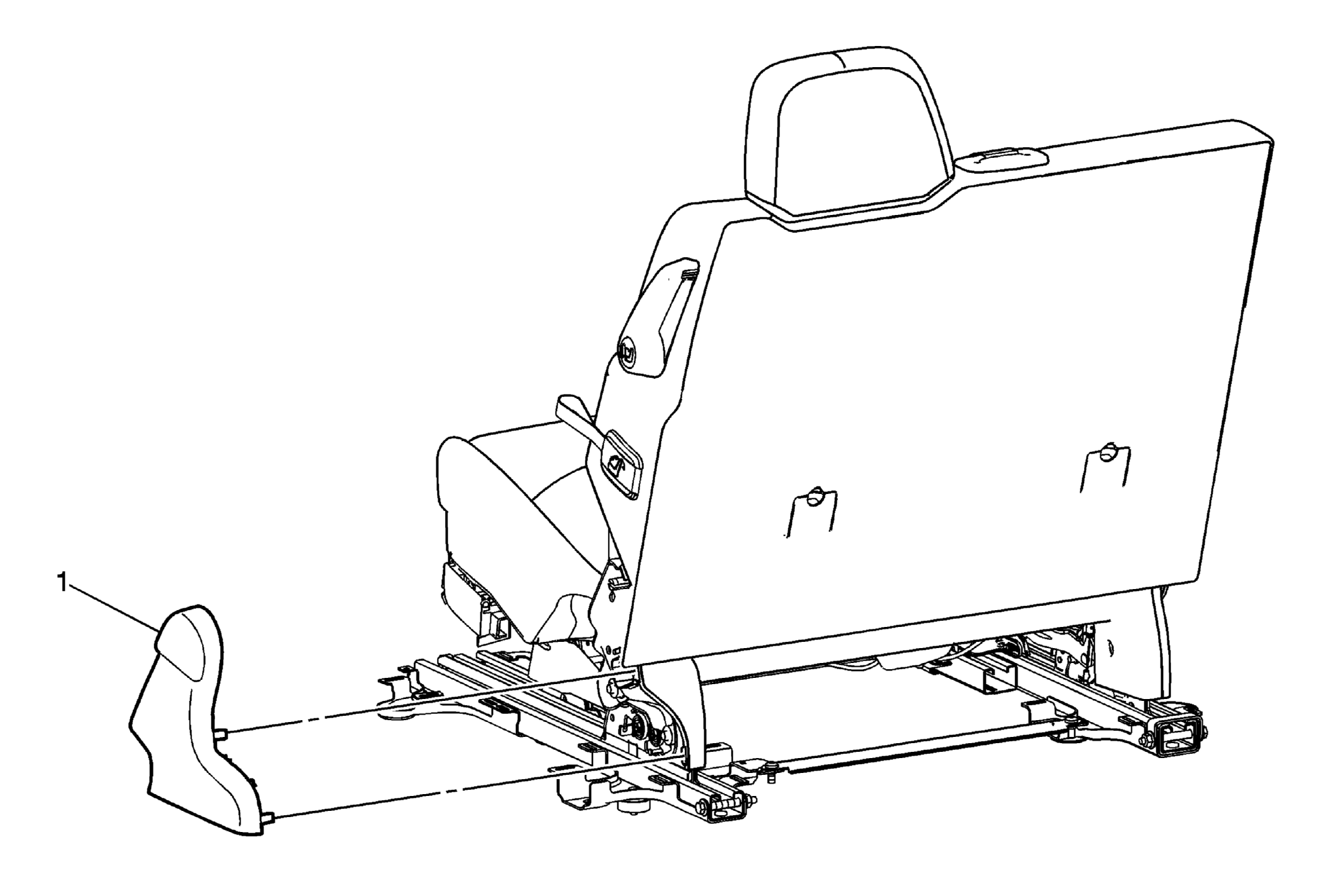

Fig 1: Rear Seat Recliner Outer Finish Cover - Outboard (With 60 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Recliner Outer Finish Cover Procedure Move the seat forward to the Smart Slide® E-Z entry position. To remove the finish cover, release the two tabs that attach to the rear filler panel first. Then pull outward to release the push in retainer and two retainer clips.
