Driver or Passenger Seat Cushion Frame Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

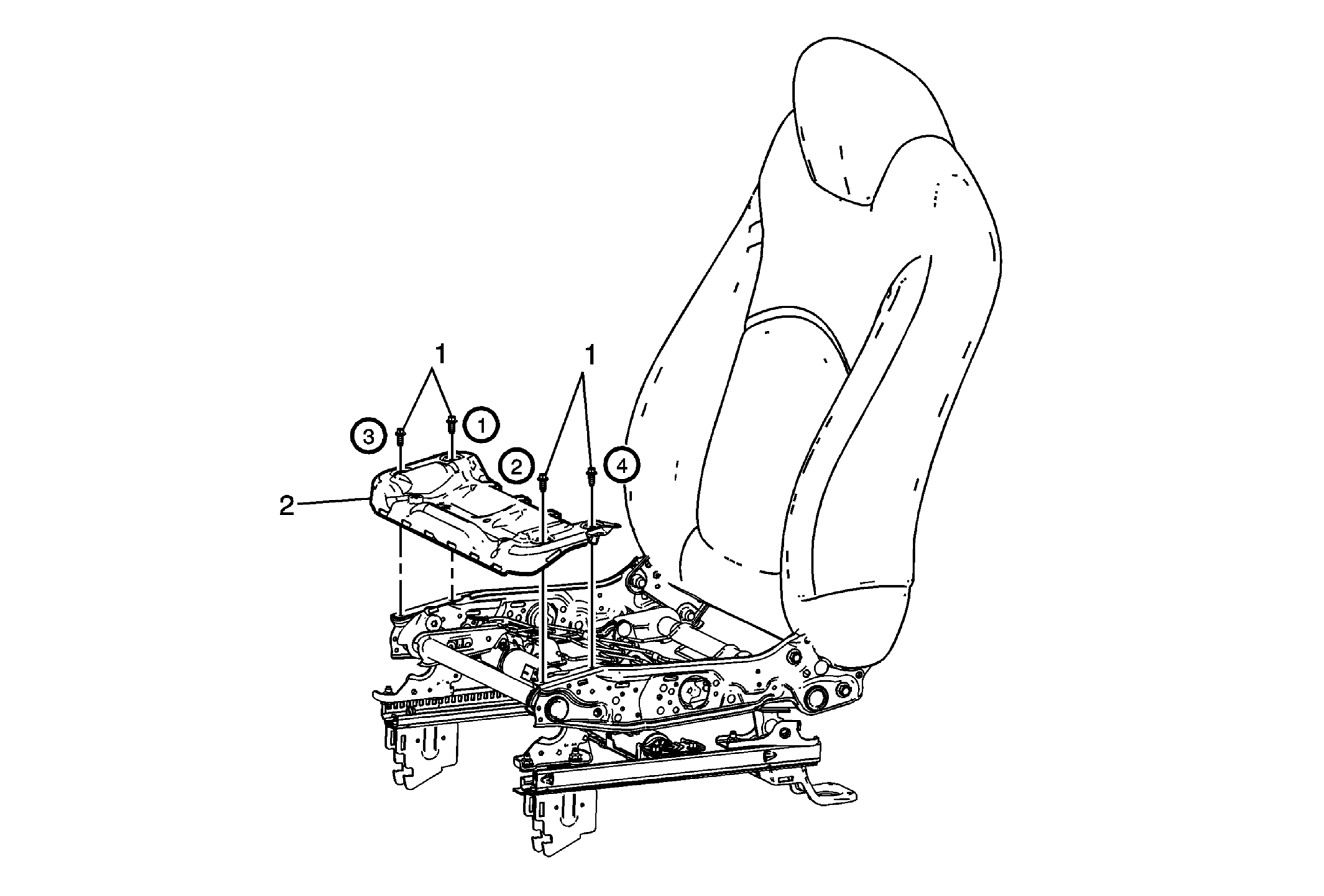

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement . |
|
| 1 | Front Seat Cushion Frame Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |
| 2 | Front Seat Cushion Frame Procedure Disengage the springs from the seat cushion frame. |
